TIC QUANTUM Operation
10/04 3-13
Adjusting the load space
filling
(from serial no.)
Attention:
From serial no. … there are no reed switches available for half-loading
the front panel. However, the wiring loom remains unchanged = the plugs
for the reed switches are available.

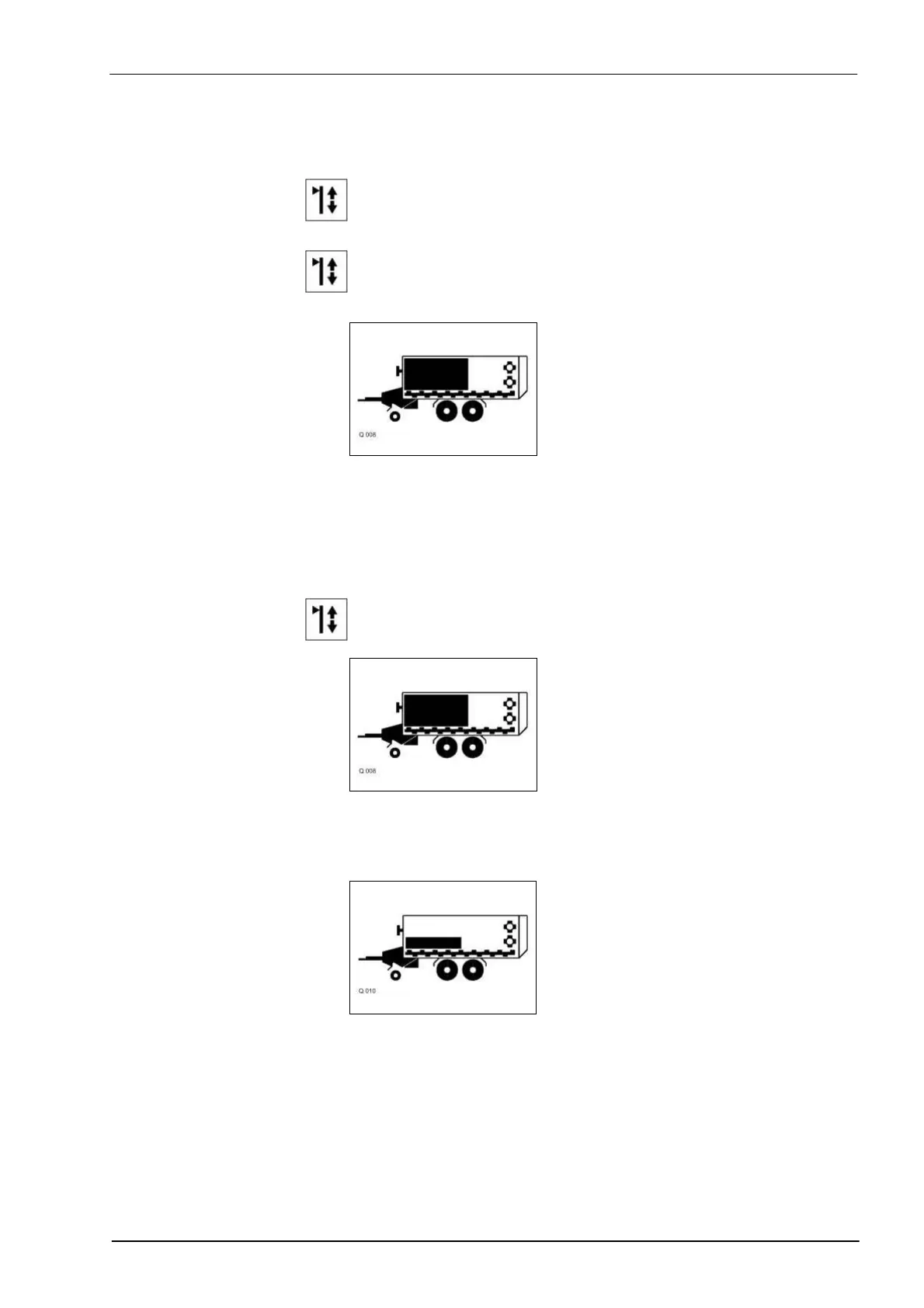

This button can be used to vary the loading mode. Its functions
depends on the position of micro switch (3) located in the front part
of the control box (4).
Micro switch (3) in lower
position (OFF / standard
setting):
Using this button allows switching back and forth between fully
loading the wagon and manual loading (under visual control).
The black filling bar ceases
to apply from serial no. and
installation of EPROM
350 812-5.
Upper position
(e.g. for loading dry fodder): The floor conveyor is switched on when the
cover plates are raised. All 3 plates are linked with one another.
The floor conveyor will run until the feelers and/or the top plate are free
again or the manual actuation is shut down..
Micro switch (3) in top
position:
Using this button allows switching between fully loading the wagon
and deactivating the automatic filling.
The black filling bar ceases
to apply from serial no. and
installation of EPROM
350 812-5.
Upper position
(e.g. for loading dry fodder): The floor conveyor is switched on when the
cover plates are raised. All 3 plates are linked with one another.
The black filling bar ceases
to apply from serial no. and
installation of EPROM
350 812-5.
The filling indicator disappears:
The automatic filling mode is deactivated; the floor conveyor has to be
operated manually.
To adjust the micro switch, switch off the control box and the oil supply
from the tractor. Then open the distributor box located in the front part of
the wagon and switch over using a small screwdriver. Close the box and
connect the oil supply to the tractor.
