Group 19, Motor Controls
SM 765, Sep ’06 Control Programming • 19-2-15

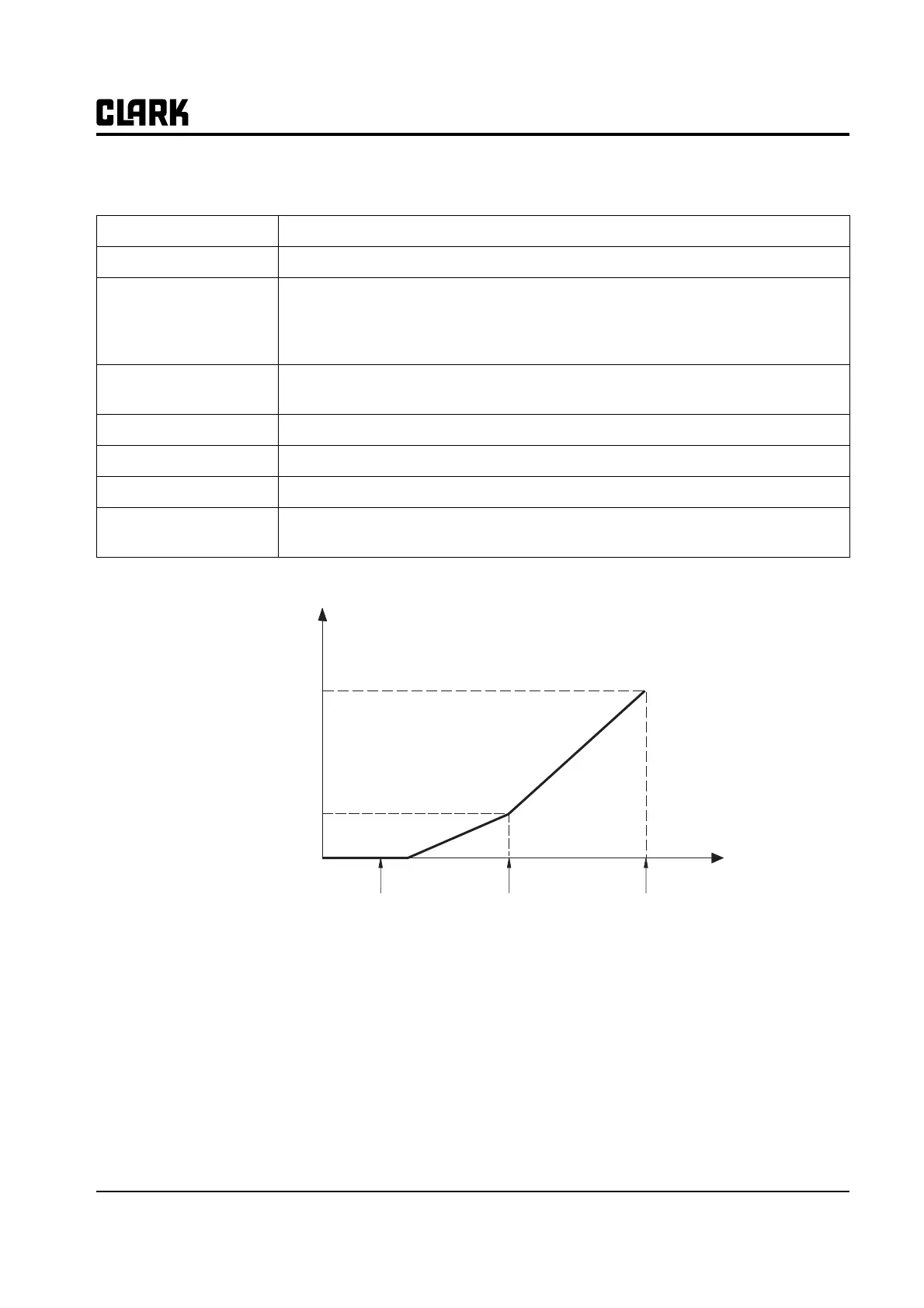

SUBMENU "ADJUSTMENTS"
VACC MIN and VACC MAX are values programmable by the "Program VACC" function.
This VACC procedure programs the actual minimun and maximum input voltages from the lift potentiometer.
See Group 13, Section 4 for setup procedure.
1. SET BATTERY TYPE: Selects nominal battery voltage.
2. ADJUST BATTERY: Fine adjustment of battery voltage measured by the controller.
3. ADJUSTMENT #4: Used to decide the motor temp level on which the motor temp abnormal signal is dis-
played. The temp range will be adjusted from 70°C to 160°C in the unit of 10°C. This
parameter shall be adjusted only when the “Temp Adjustment” (“Option” menu) parame-
ter has been programmed in analog.
4. MOTOR SHUT-
DOWN:
Used to shut down the hydraulic operation when the set value is reached. (However, the
steering can work.)
5. THROTTLE 0 ZONE: Establishes a deadband in the accelerator input curve.
6. THROTTLE X POINT: This parameter changes the characteristics of the accelerator input curve.
7. THROTTLE Y POINT: This parameter changes the characteristics of the accelerator input curve.
8. IMAX PROTECTION: The value to start the current reduction when the motor temperature reaches adjustment
#4 value.
VACC
MIN
VACC
MAX
TROTTLE 0
ZONE
TROTTLE X
POINT
TROTTLE Y
POINT
V
FREQ. CREEP
MAX SPEED
SPEED f(Hz)
