Group 25, Steering Column and Gear
SM 765, Dec ’06 Steering Column and Component Removal and Replacement • 25-3-3
4. Remove 4 bolts secruing tilt assembly to frame. .
Steering Gear Removal
1. Put a pan under the truck to catch hydraulic fluid
which will drip when fittings are loosened. Label the
four hose fittings of the steering gear to make sure
they are reassembled correctly. Loosen and remove
the hydraulic fittings at the steering gear. Cap the
ends to prevent fluid leaks. Cap the steering gear
ports to prevent dust and debris from getting into the
steering gear. Keep hydraulic ports and hoses clean.
2. Remove the four bolts securing the lower column
shaft and steering gear to the bracket on the frame.
3. Remove the lower shaft and steering gear assembly
from the truck.

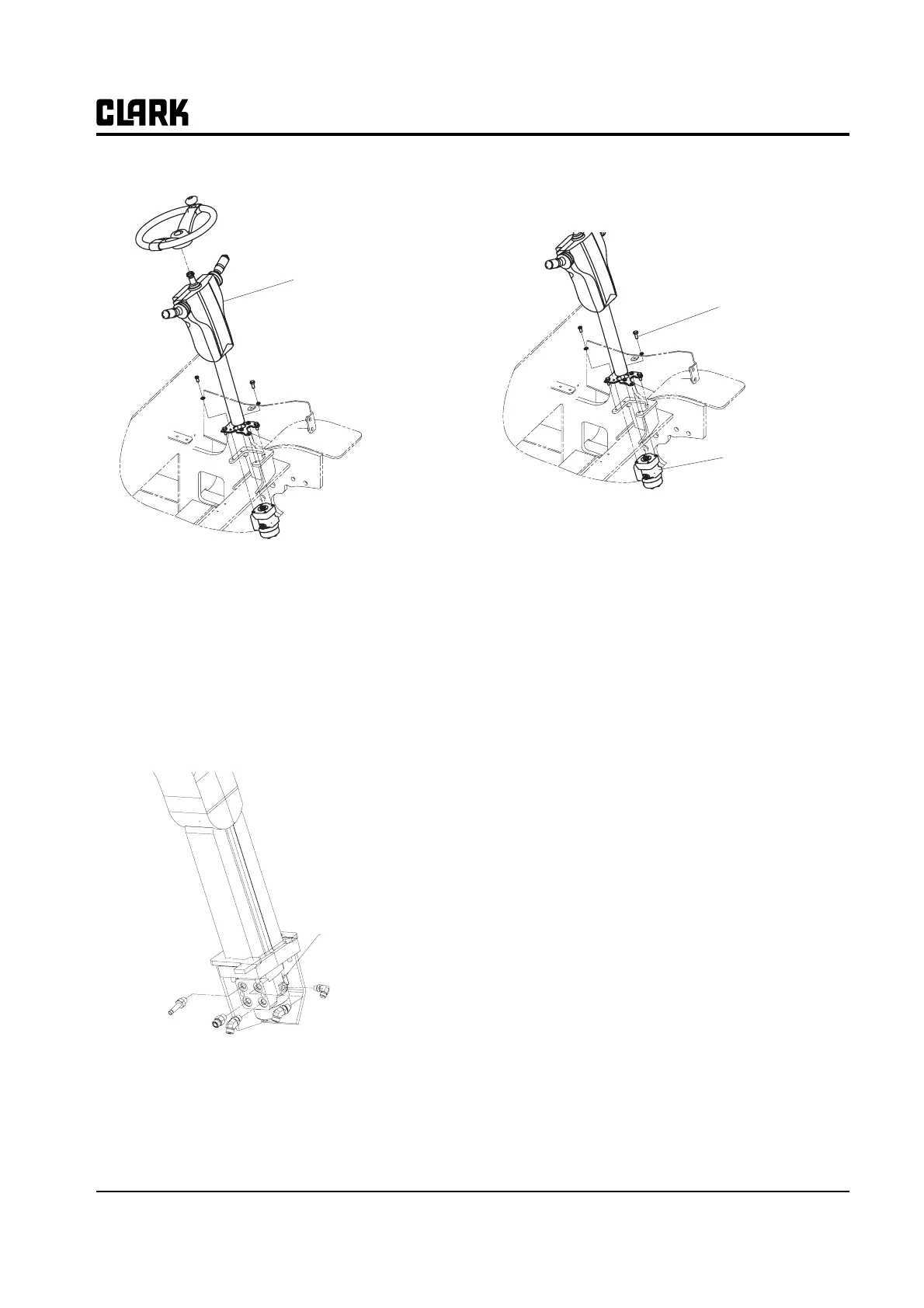

Tilt Lock Assembly
Steering Gear
Mounting Screw
Steering Gear
