Group 32, Tilt Cylinders
SM 765, Nov ’06 Tilt Cylinder Overhaul • 32-4-1
Preparation for Disassembly ................................ 2
Disassembly ............................................................ 2
Inspection ............................................................... 3
Reassembly ..............................................................3
IMP
O
RTANT
Before removing any component for overhaul, make sure the
correct repair parts, seals, and gasket sets are available.

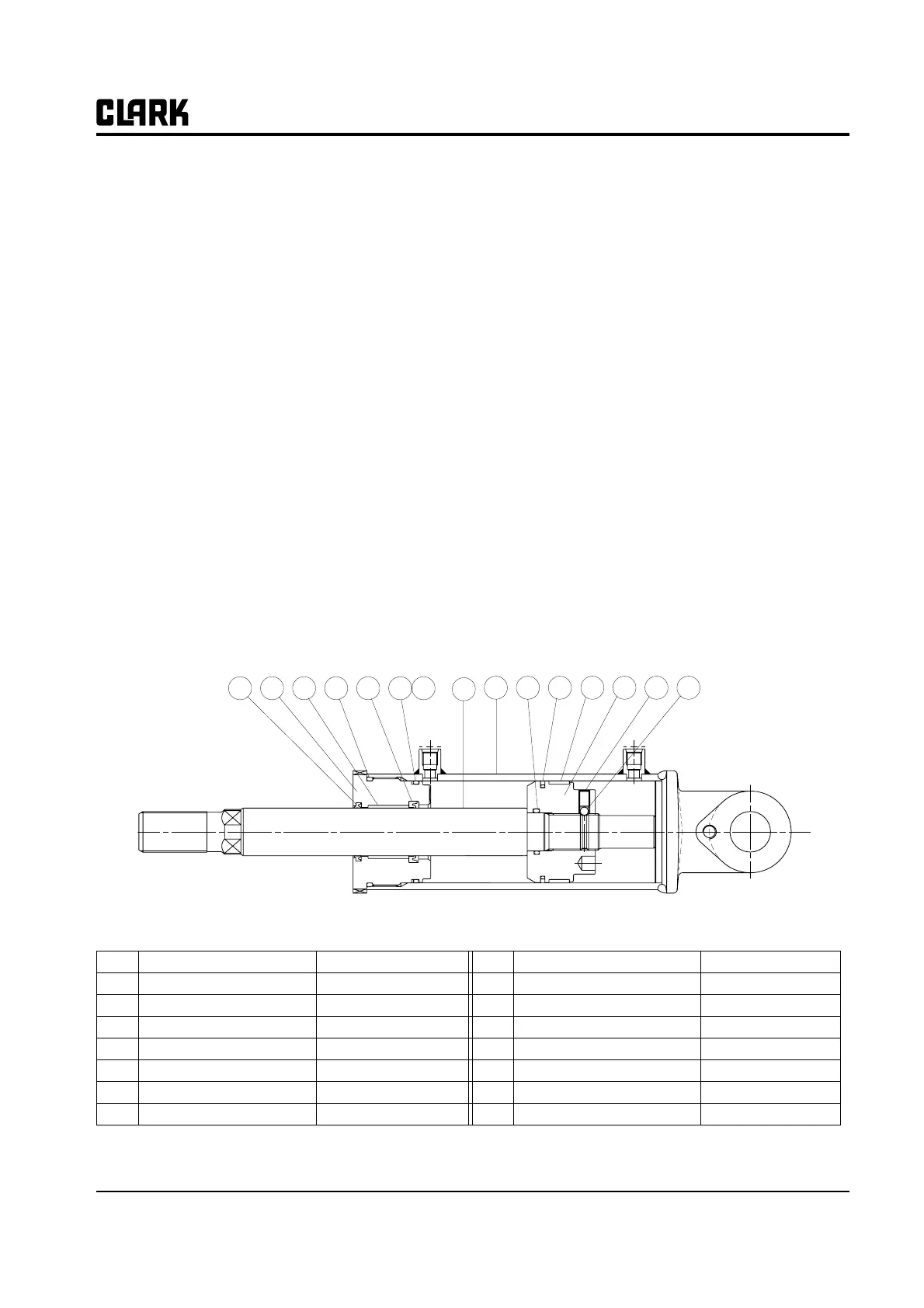

Typical Tilt Cylinder Cross section
1 Tube Assy 9 O-ring 1B G75
2 Rod 10 Piston
3 Gland 11 Piston Seal
4 Dust Wiper 12 Wear Ring
5 Rod Seal 13 O-ring
6 Du Bush 14 Set Screw
7 O-Ring 15 Steel Ball
8 Back up ring
4369578 21131112101415
Section 4
Tilt Cylinder Overhaul
