Eclipse | Upgrade Guide
Page 13

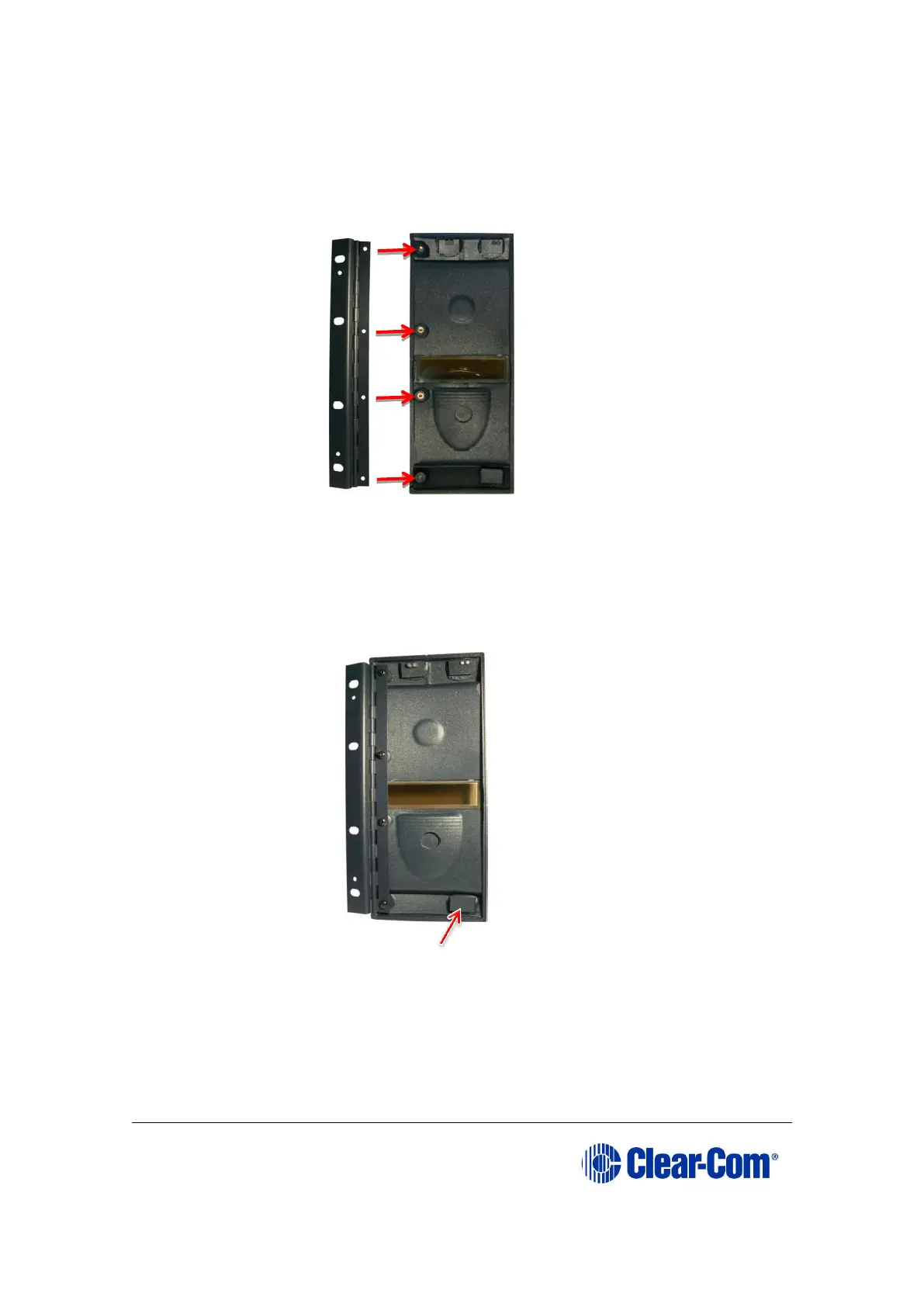

Figure 2-3: Securing the hinge to the Eclipse HX door
4) Use alcohol to clean the latch-mount surface (located to the bottom right
on the inside of the Eclipse HX door).
Figure 2-4: Latch-mount surface, inside the Eclipse HX
door
3
4
Latch-mount
surface
