8. In the Serial port configuration dialog, enter the following settings:
Port setting
Setting to enter
Port
COM1 (Change to match a COM port present on the PC)
Baud rate
115200
Data
8 bit
Parity
None
Stop
1 bit
Flow control
none
Transmit delay
0 msec/char. If the E-QUE card fails to load correctly,
change this value to 50ms.
Table 9-6: Tera Term port settings
9. Set the IP address of your PC to a fixed / static address (any IP address of your choice is
suitable).
10. Navigate to the c:\tftp directory. To open the TFTP Server command window, double click the
application tftpsrv.exe.

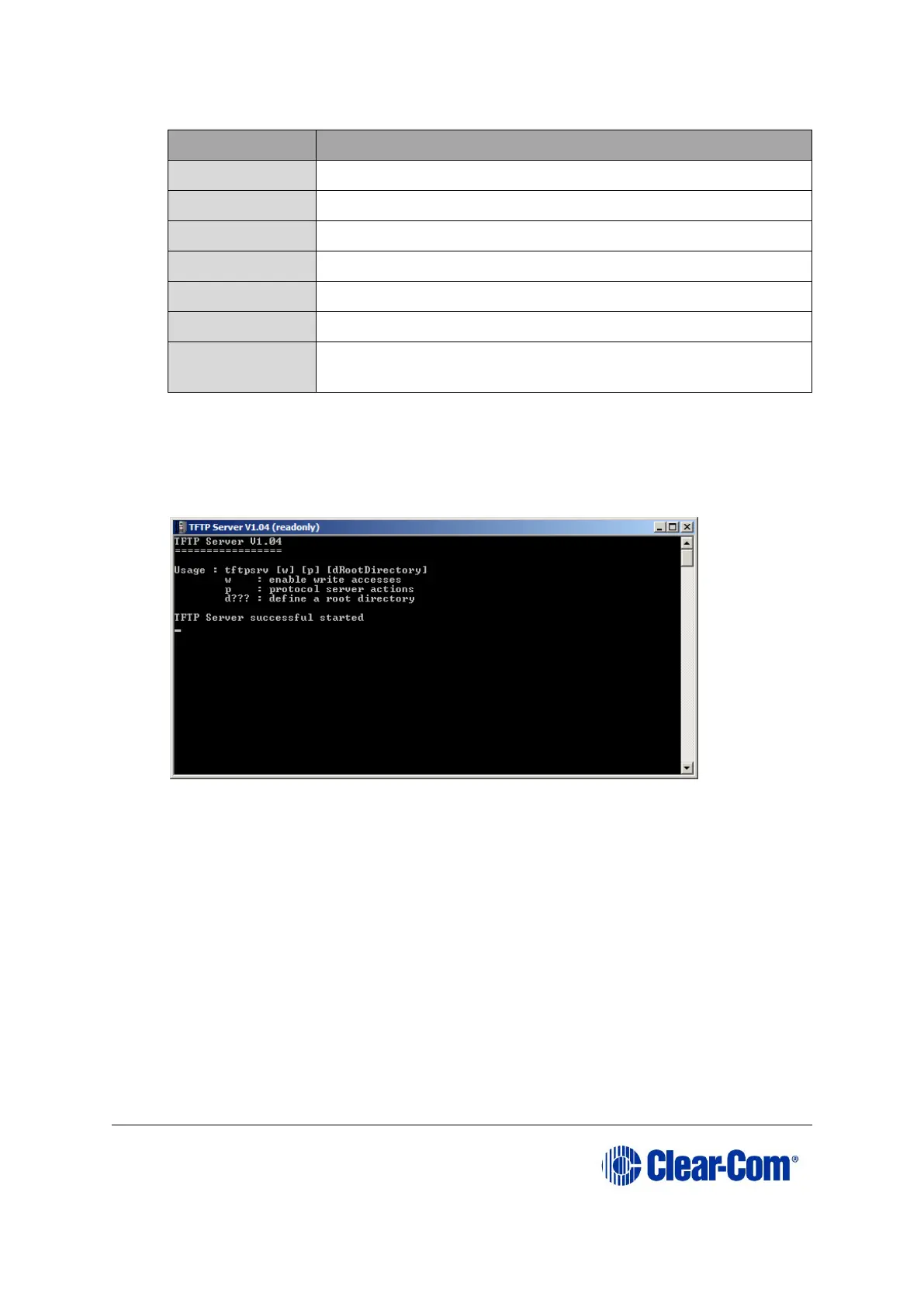

Figure 9-21: TFTP Server Window
Note:
The TFTP application can only access files in the same folder as the TFTP application. The
E-QUE MK2 boot ROM file must be in the same directory as the tftpsrv.exe program.
11. Connect the MVX serial cable (CAB-MVX-48Z) between the PC serial port and the E-QUE
card (MK2) serial connector (CON-2200):
