Required equipment
Description / comments
TFTP Server software
-
MVX Serial cable (CAB-
MVX-48Z)
See Figure 9-4: MVX-A16 serial cable (CAB-
MVX-48Z)
Ethernet crossover cable
-
Small reset tool
For example, a bent paper clip
Table 9-5: Required equipment
2. Install Tera Term.
Tip: For more information about installing Tera Term, see Appendix G: Tera
Term
3. Create a directory on your PC called c:\tftp.
4. Navigate to either of the following folders:
• Software USB > SOFTWARE - EHX.xxx > 3rd_Party_Software > EQue TFTP Server
App
• Drivers USB > ECLIPSE DRIVERS > 3rd_Party_Software > EQue TFTP Server App
Open the folder. Copy tftpserv.exe into the c:\tftp directory.
Note: Any TFTP server can be used as long as it points to the C:\TFTP
folder.
5. Navigate to Drivers USB > ECLIPSE DRIVERS > Omega-Median-Delta > xxxxxx – E-Que
MKII (Blue PCB) Boot ROM
(where xxxxxx represents the product number).
Open the folder. Copy the E-QUE (MK2) boot ROM file into the c:\tftp directory.
6. From the same folder, copy the Tera Term macro file EQ2_uboot_upgrade.ttl to the c:\tftp
directory.
7. Start Tera Term. Open the Setup menu and select Serial Port….

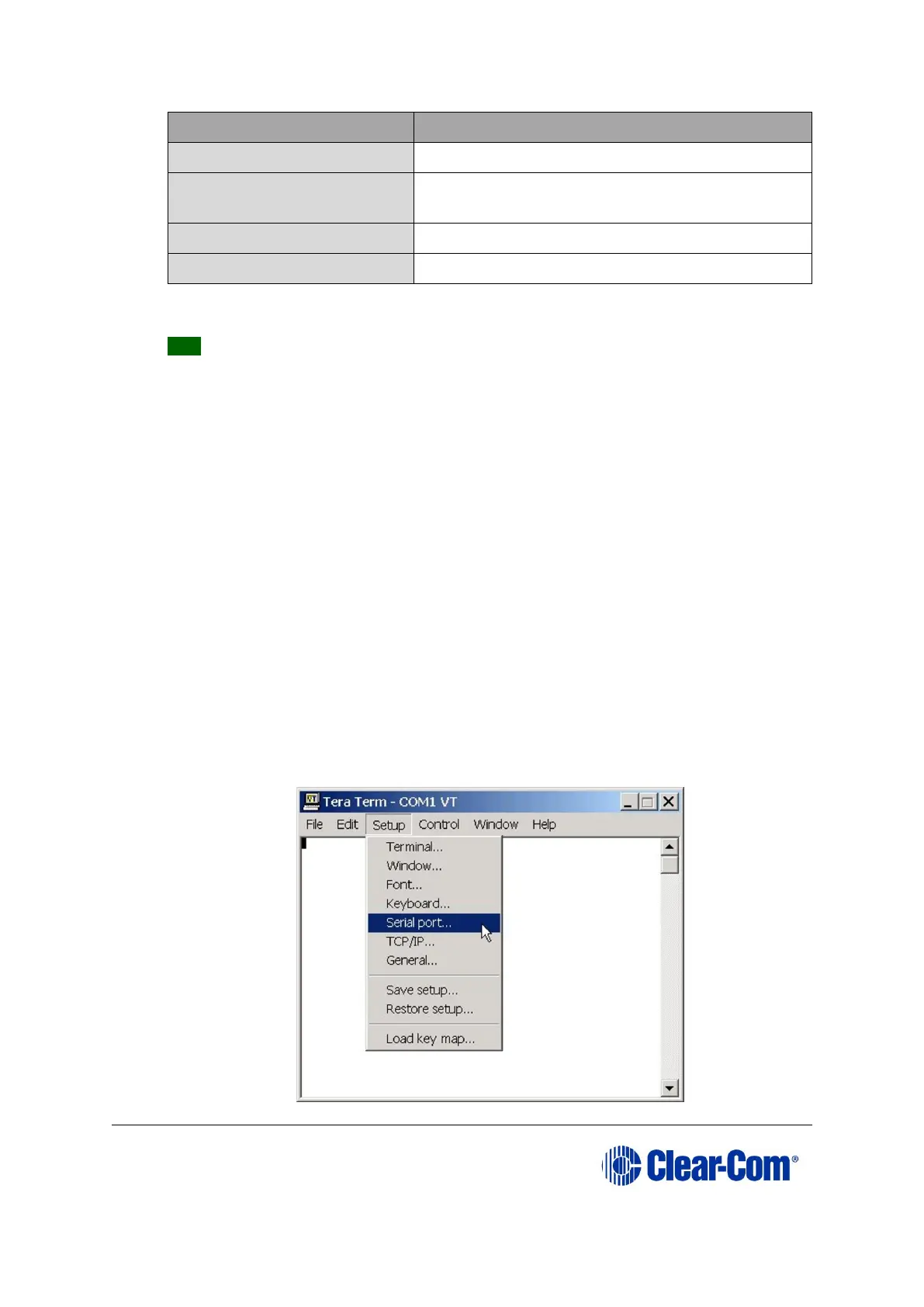

Figure 9-20: Tera Term: selecting Serial Port
