Eclipse | Upgrade Guide

Page 208

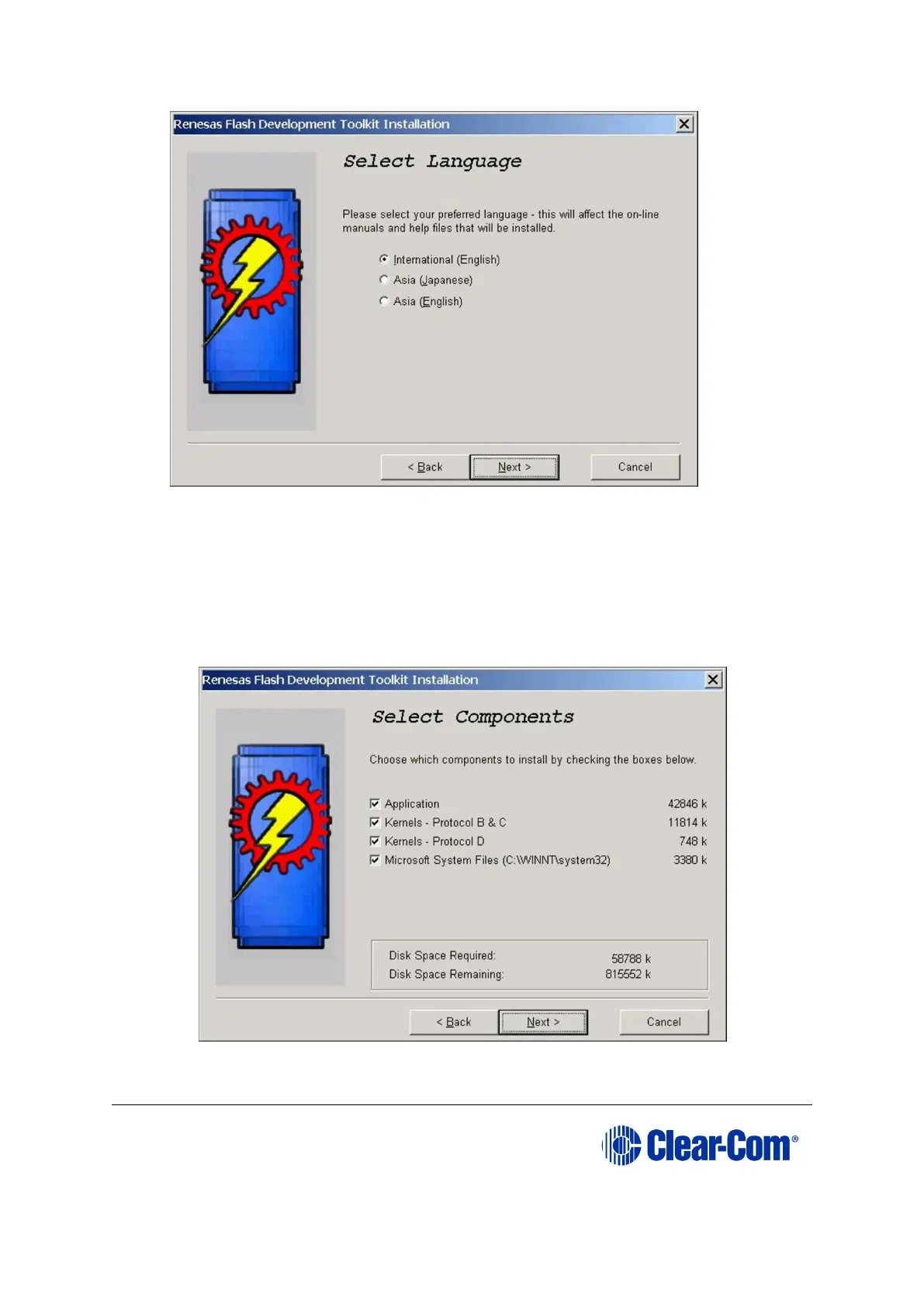

Figure 17-6: Language selection

Click Next.

4. Click Yes to accept the license conditions. The installer then displays the Select

Components screen:

Figure 17-7: Select Components
