Eclipse | Upgrade Guide

Page 220

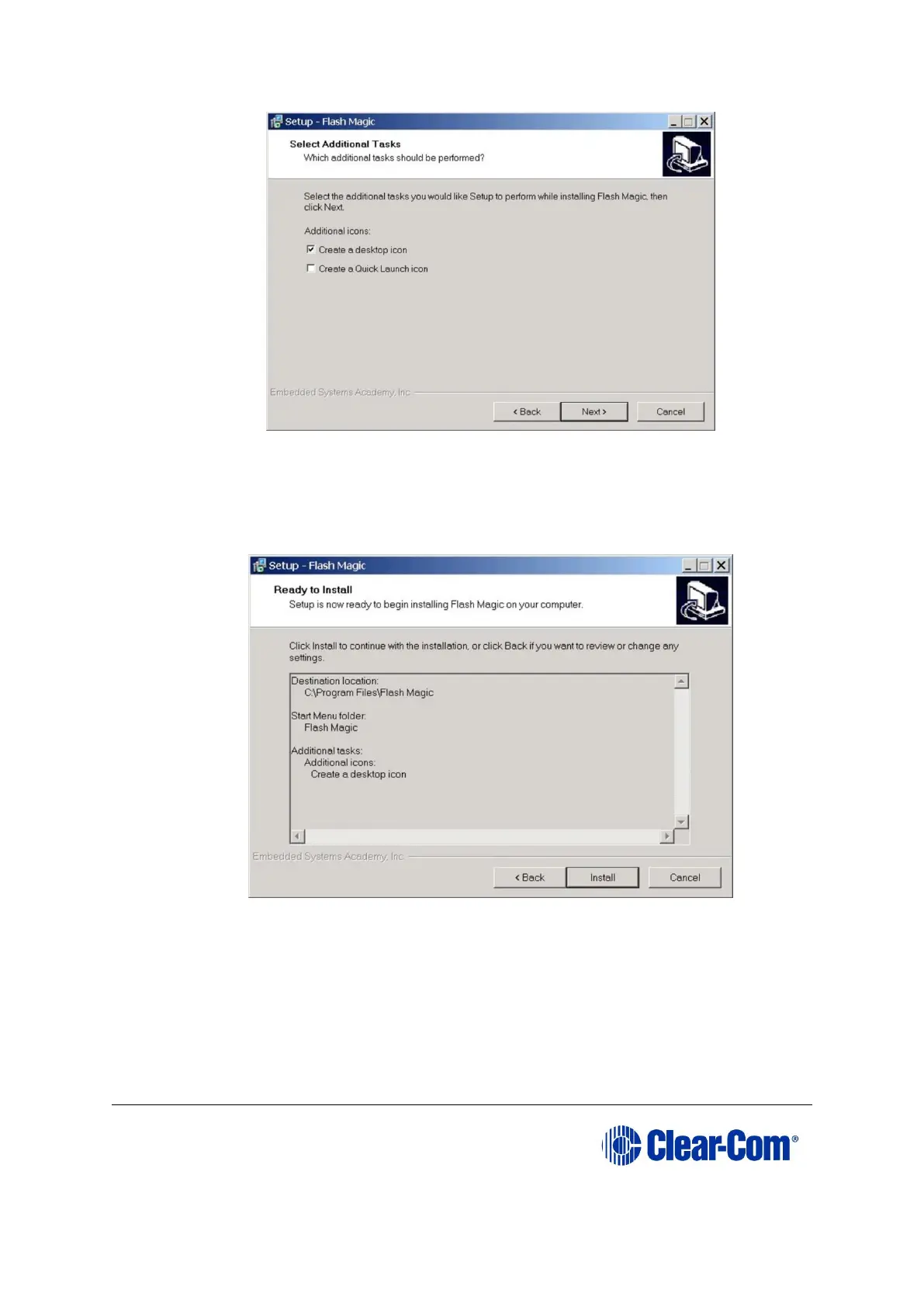

Figure 17-24: Select Additional Tasks

7. The Ready to Install screen is displayed. Click Install.

Figure 17-25: Ready to Install

8. When the installation is complete, the completion screen is displayed.
