User Guide| FreeSpeak II for Eclipse HX
4.3.2 Charging the beltpack
Use only chargers provided by HME/Clear-Com to charge the battery packs or beltpacks. These
include:
l BAT60 Battery pack and beltpack charger manufactured by HME/Clear-Com
l USB Charger model PA1015-050SIB200/PA1015-1SI/ PA1015-1SI050200 provided by
HME/Clear-Com with your beltpack.
The beltpack batteries are located inside the beltpack battery compartment. The beltpack can use

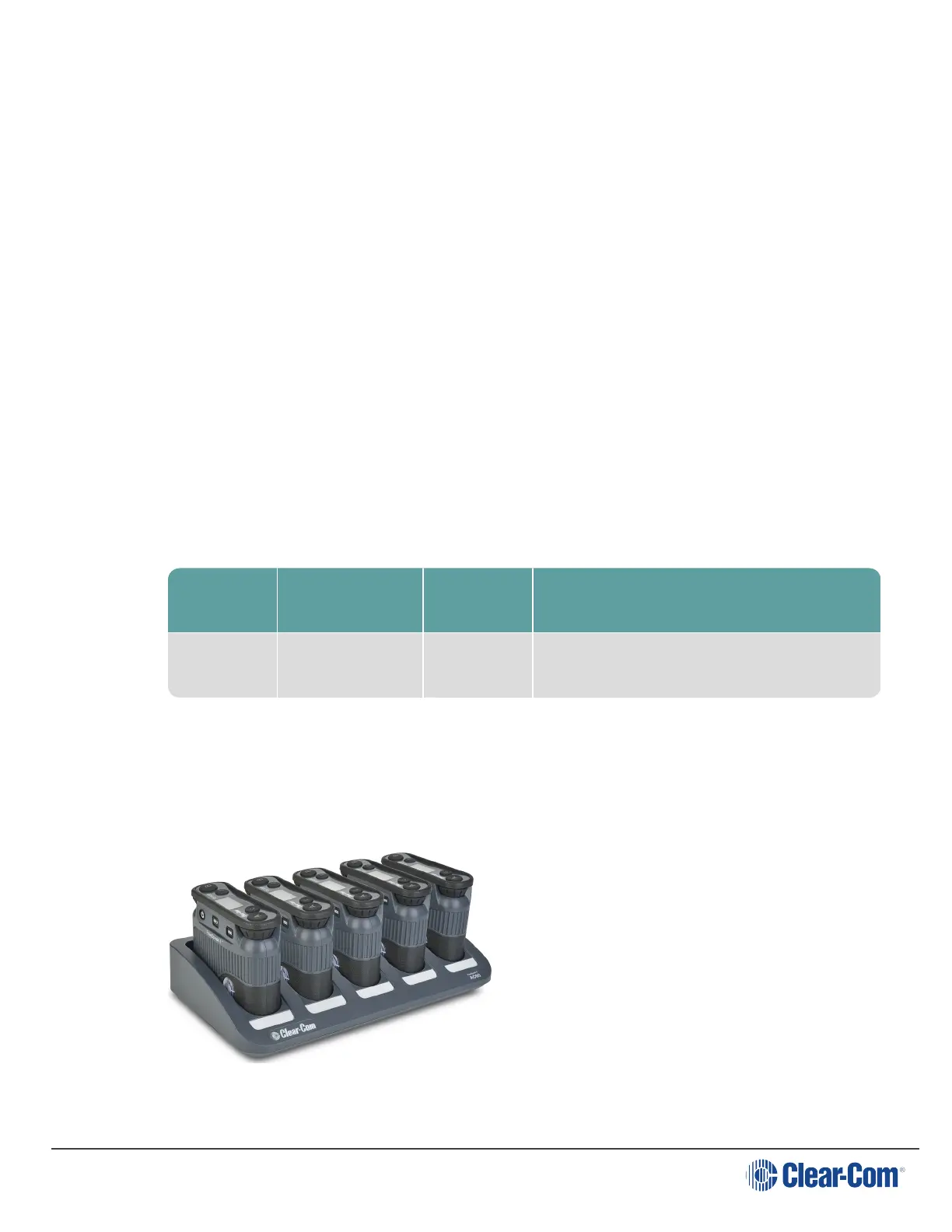

a Clear-Com rechargeable Li-Ion battery or AA batteries. The AC60 battery charger can charge
up to five batteries simultaneously.
To recharge the beltpack battery:
1. Insert either the beltpack containing the battery, or the battery itself into one of the recharging
bays on the battery charger. A red LED indicates that the battery is recharging.
If you are recharging the battery while it is still in the beltpack battery compartment, an illuminated
beltpack key (Talk key A) indicates the charging status. The beltpack charging sequence depends
on whether you insert a powered on unpowered beltpack into the charger. The table below shows
the charging status conditions.
Talk key A
red
Talk key A
green
RF
component
Beltpack screen
Battery
charging
Battery fully
recharged
Disabled
Displays current percentage charge and
software version
If a beltpack is powered on when placed in the charger, on removal the RF component is re-
enabled and the beltpack attempts to reconnect to its previous connection.
If a beltpack is powered off when placed in the charger, on removal it will power off.
2. Wait until the recharging LED turns from red to green. The battery is now fully recharged.
