User Guide| FreeSpeak II for Eclipse HX
l The IPT transceivers have a higher than average requirement for network timing accuracy.
For this reason it is advisable to use different VLANs to route Admin/IVC traffic and AES67
IPT traffic.
Rules:
l If you are using more than one connector on your E-IPA card for Admin/IVC and AES67
then they must connect to different switches or VLANs.
l If you separate Admin and IVC traffic then they must be on different VLANs.
Note: The bandwidth usage per IP transceiver is ~12Mbps.
Warning: If you change the IP address of the AES67 ports (transceiver or E-IPA matrix card), the
devices will reset automatically. Reset can take up to five minutes..
When connecting the E-IPA-HX card to the IP transceiver over your network certain scenarios will
work while others do not. This is down to the way the E-IPA card routes audio and data between
ports and processors.

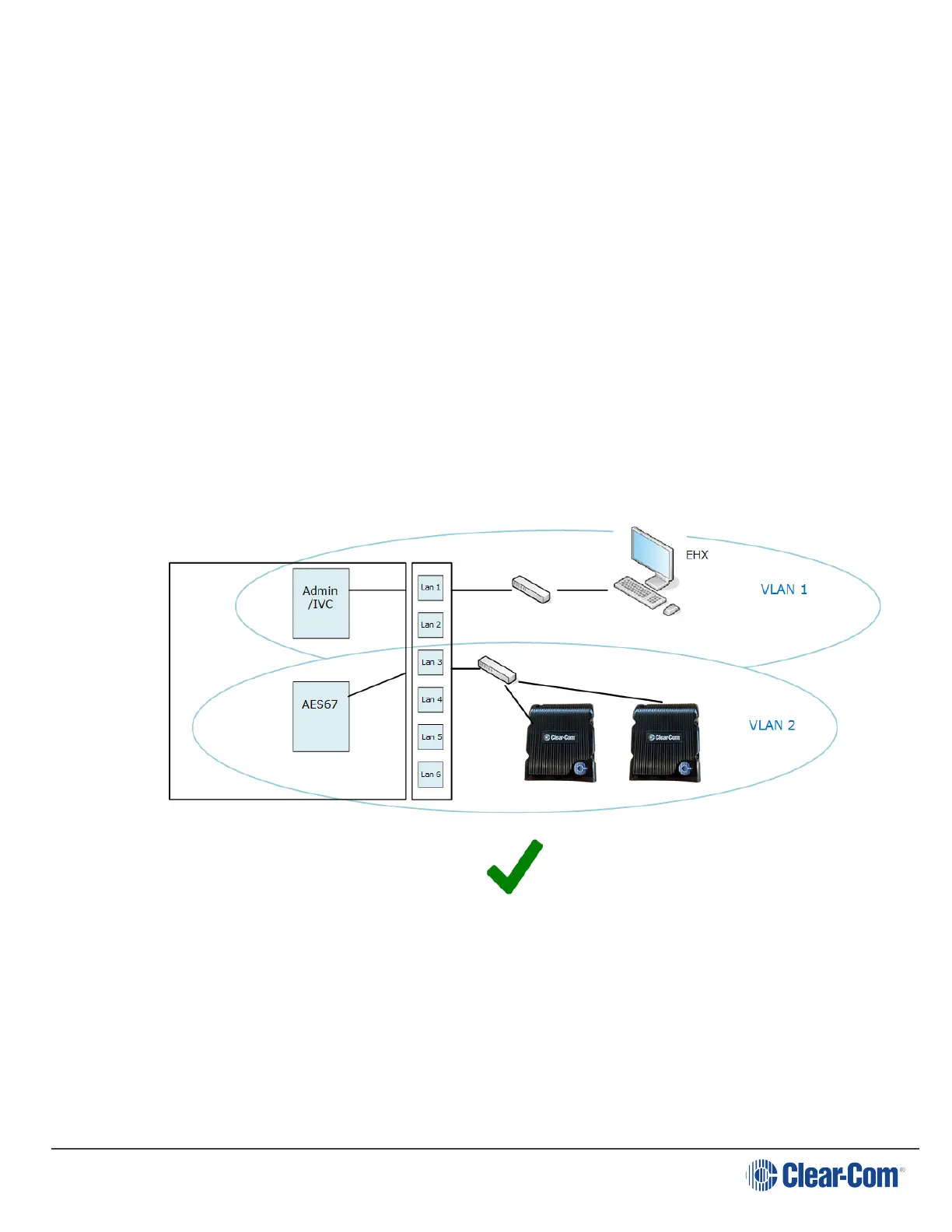

Example set ups:
Page 56
