833-3577 CB-FALCON SYSTEM OPERATOR INTERFACE
65-0296—01 32 750-241

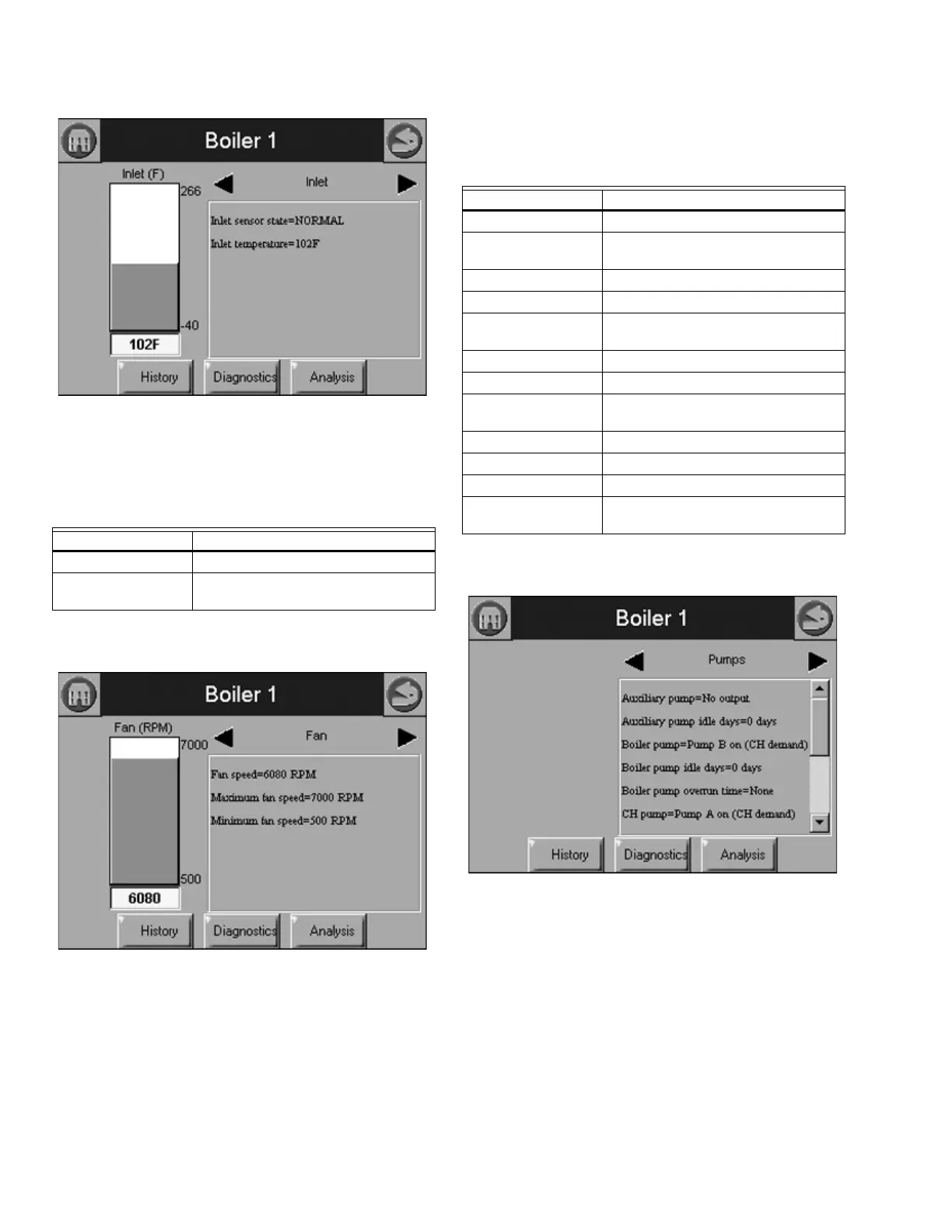

Fig. 73. Inlet High Limit Status menu.
Table 29 displays the status page data for the fan in the 833-
3639.
The bar graph displayed for this status is the fan speed.
Fig. 74. 833-3639 Fan Status menu.
Table 29 displays the status page data for the pump in the
833-3639.
The pump status page is displayed in Fig. 75.
Fig. 75. 833-3639 Pump Status menu (top).
Table 29. 833-3639 Fan Status.
Data Comment
Fan speed Current fan speed (% or RPM)
Air flow Yes or No. Air Flow switch or feedback
status
Table 30. 833-3639 Pump Status.
Data Comment
Auxiliary pump On or Off (Auxiliary pump switch)
Auxiliary pump idle
days
Days
Boiler pump On or Off (Boiler pump switch)
Boiler pump idle days Days
Boiler pump overrun
time
Count down of Boiler pump overrun
CH pump On or Off (CH pump switch)
CH pump idle days Days
CH pump overrun
time
Count down of CH pump overrun
DHW pump On or Off (DHW pump switch)
DHW pump idle days Days
DHW start delay Seconds
DHW pump overrun
time
Count down of DHW pump overrun
