Hardware Installation 2-3

Compaq Confidential – Need to Know Required

Writer:

John Turner

Project:

Compaq Server Console Switch User Guide

Comments:

Part Number:

141555-002

File Name:

c-ch2 Hardware Installation.doc

Last Saved On:

8/22/00 10:26 AM

2-Port 0U Installation

The 2-Port unit should only be installed using the side-mount procedure

described below.

Attach the side-mount rails to your 2-Port unit.

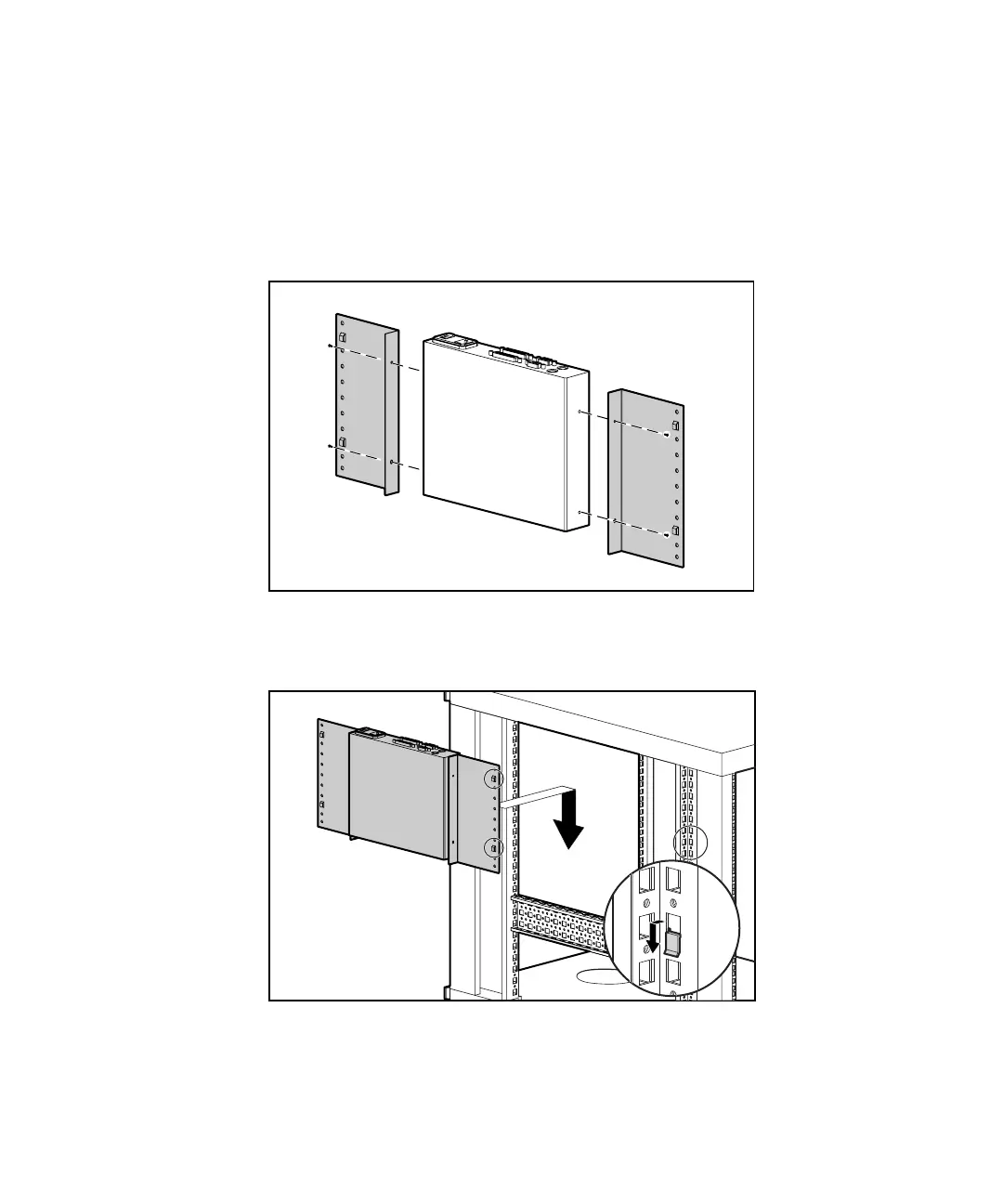

Figure 2-1. Attaching the 2-Port side-mount rails

Slide the tabs on the rails into the same U location on each side of the

rack.

Figure 2-2. Mounting the 2-Port unit to the side of the rack
