Attaching the slide rail brackets
1.
Attach the rails to each side of the switch box, using the screws
provided.

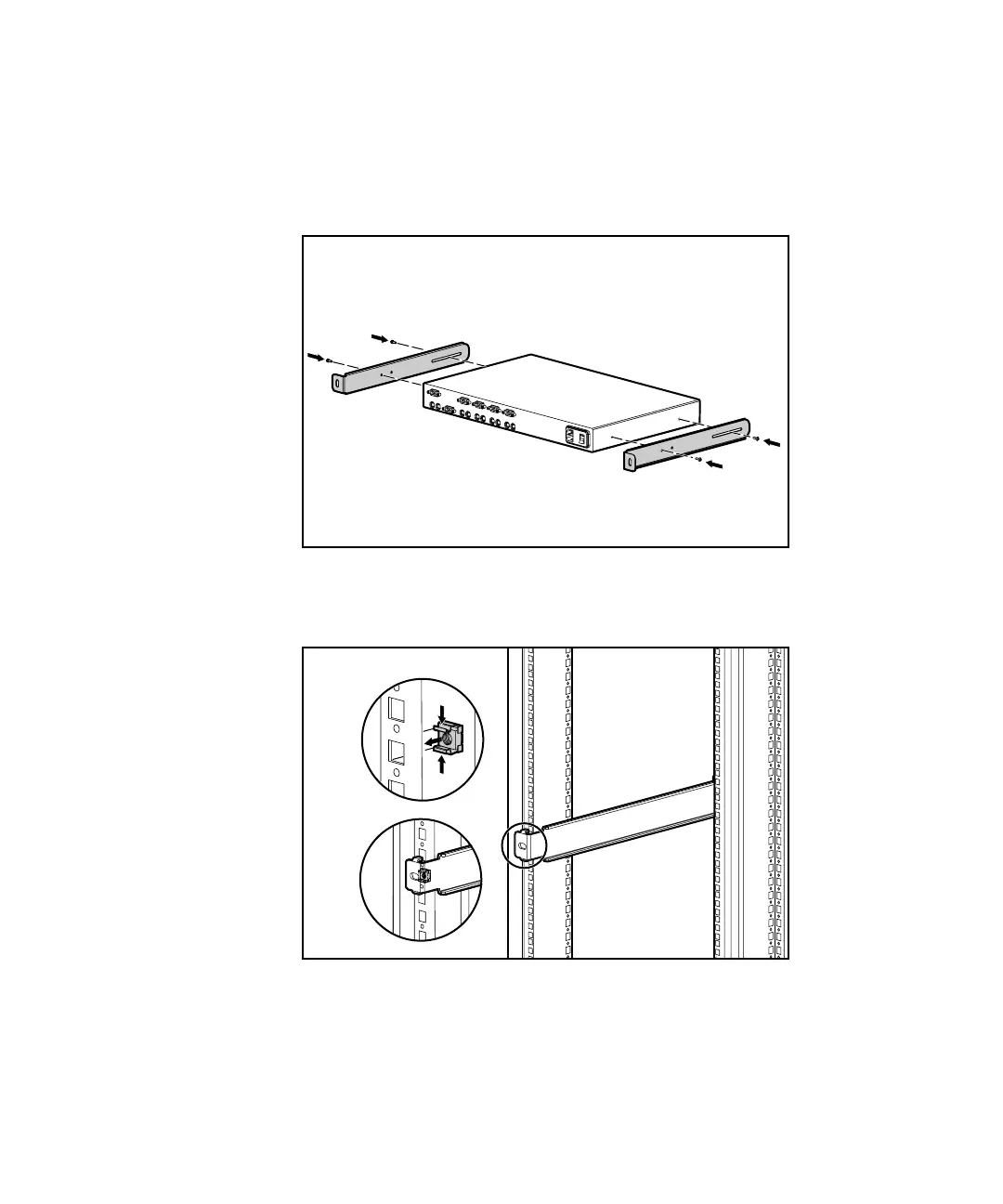

Figure 2-8. Attaching the slide rail brackets
2.
Verify that a cage nut has been installed under the rail at the rear of the
rack.
Figure 2-9. Installing cage nut in the rear of the rack
NOTE:
If a cage nut was not installed during the installation of the 1U Keyboard Drawer,
this option must be removed and reinstalled with the cage nut in place.
