4-Port and 8-Port Standard 1U
Installation
Use the following procedure to install the 4-Port, 8-Port, or Dual Console
8-Port units in a rack in a standard 1U configuration.
Attaching the slide rail brackets

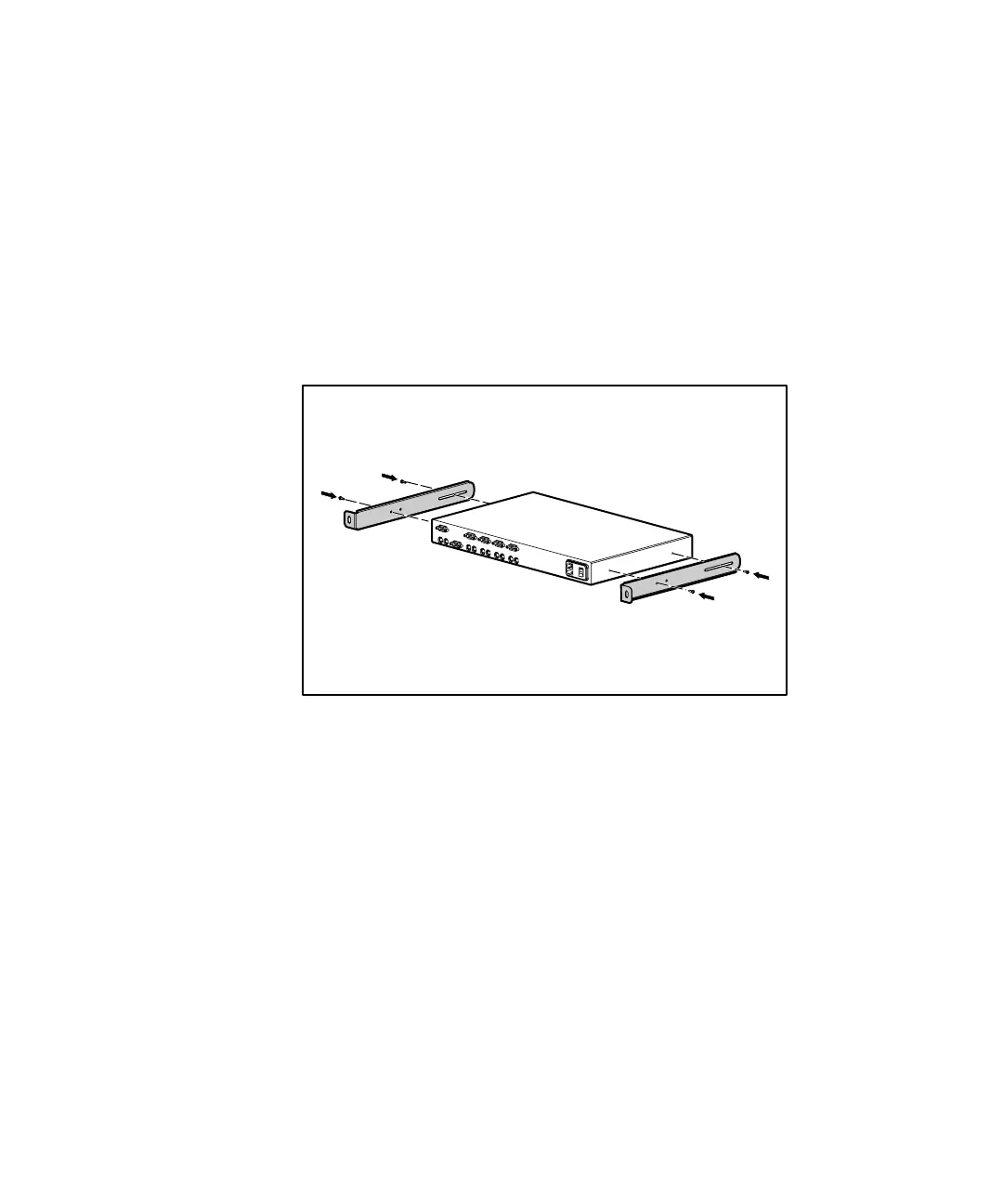

Figure 2-12 shows how to attach the slide rail brackets to the switch box.
Figure 2-12. Attaching the slide rail brackets
Measuring with the template
From the printed report generated by the Rack Builder software, determine the
rack position of the keyboard drawer. Then, measuring from the top of the
component below, use the template to carefully measure on the front and rear
of the rack frame to mark the attachment points for the mounting brackets and
rear cage nuts.
