4-Port and 8-Port Side-Mount 0U
Installation
Use the following procedure to install the 4-Port, 8-Port, or Dual Console
8-Port units on the side of a rack.
1.
Attach the side-mount rails to your Server Console Switch unit.

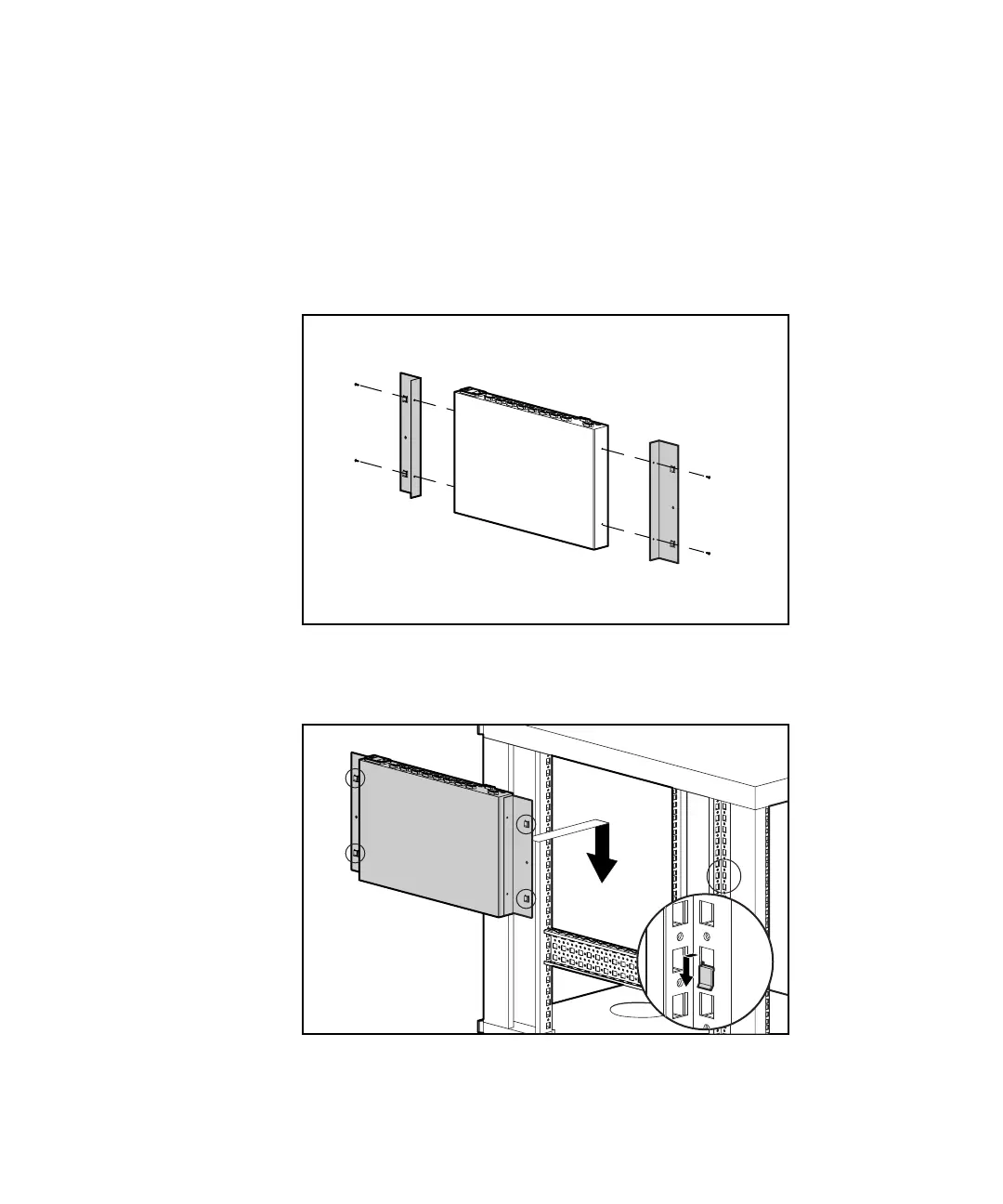

Figure 2-5. Attaching the side-mount rails
2.
Slide the tabs on the rails into the same U location on each side of the
rack.
Figure 2-6. Mounting the unit to the side of the rack
