Using the On-Screen Display 4-13
Compaq Confidential – Need to Know Required
Writer:
John Turner
Project:
Compaq Server Console Switch User Guide
Comments:
Part Number:
1141555-002
File Name:
e-ch4 Using the OSD.doc
Last Saved On:
8/22/00 10:37 AM
To assign a unique name to a computer:
1.
Click the port number of the computer.
2.
Type the device name in the Names field.
Computer names can be up to 15 characters long, including only A-Z
upper and lower case, 0-9, and the dash character. Press Backspace or
Delete to delete an incorrect entry. Click the cursor anywhere on the line
to overtype.
3.
Repeat steps 1 and 2 for each computer to be named.
4.
Click OK.
To edit an existing port or name double-click it, make any changes, then click
OK.
Menu Screen
Use this screen to set the display order of the computers on the Main screen. If
you are using a Dual Console 8-Port switch, use this screen to select a switch
connection mode.
NOTE:
Switch Mode is grayed out in single user switches, and Cooperative and
Preemptive are not selectable.

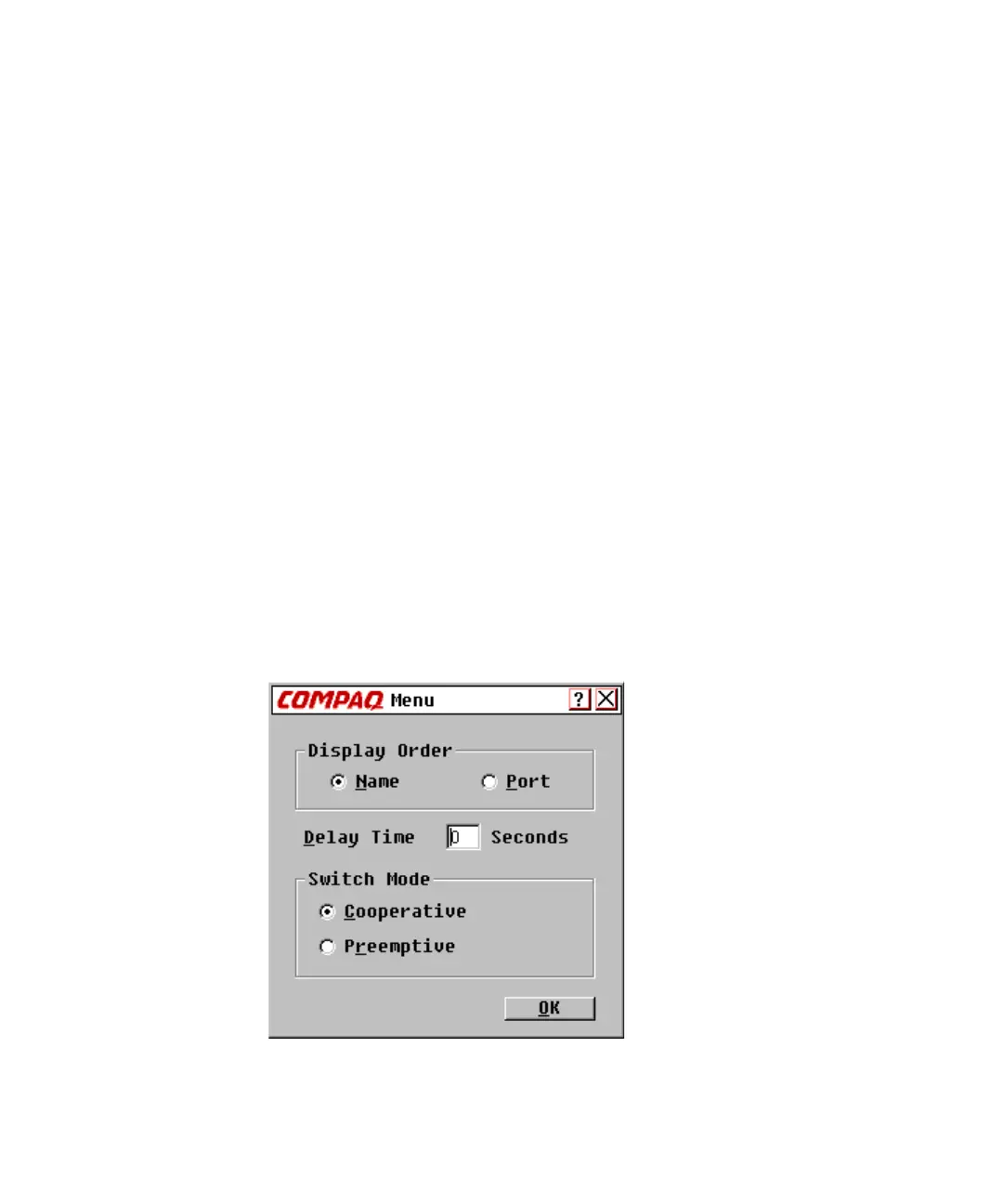

Figure 4-8. Menu screen
