Flag Screen
The status flag indicates the name or port number of the currently selected
computer. If you have a Dual Console 8-Port switch, each console can have
different flag attributes.

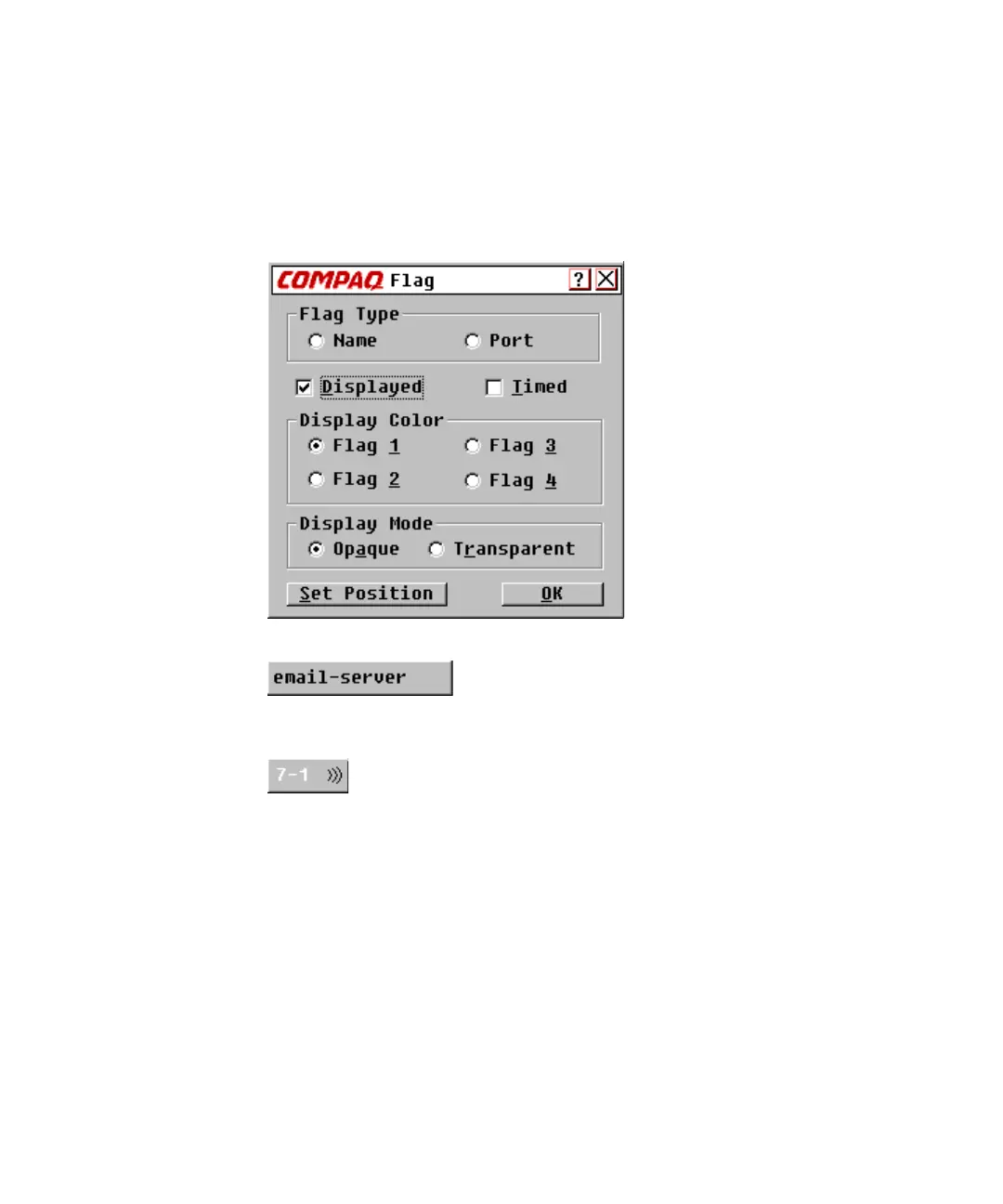

Figure 4-10. Flag screen
Figure 4-11. Status flag showing the user is connected to a computer sorted
by name order
Figure 4-12. Status flag showing that broadcasting is enabled and the user is
connected to a tiered computer sorted by port order
