Device Modify Screen

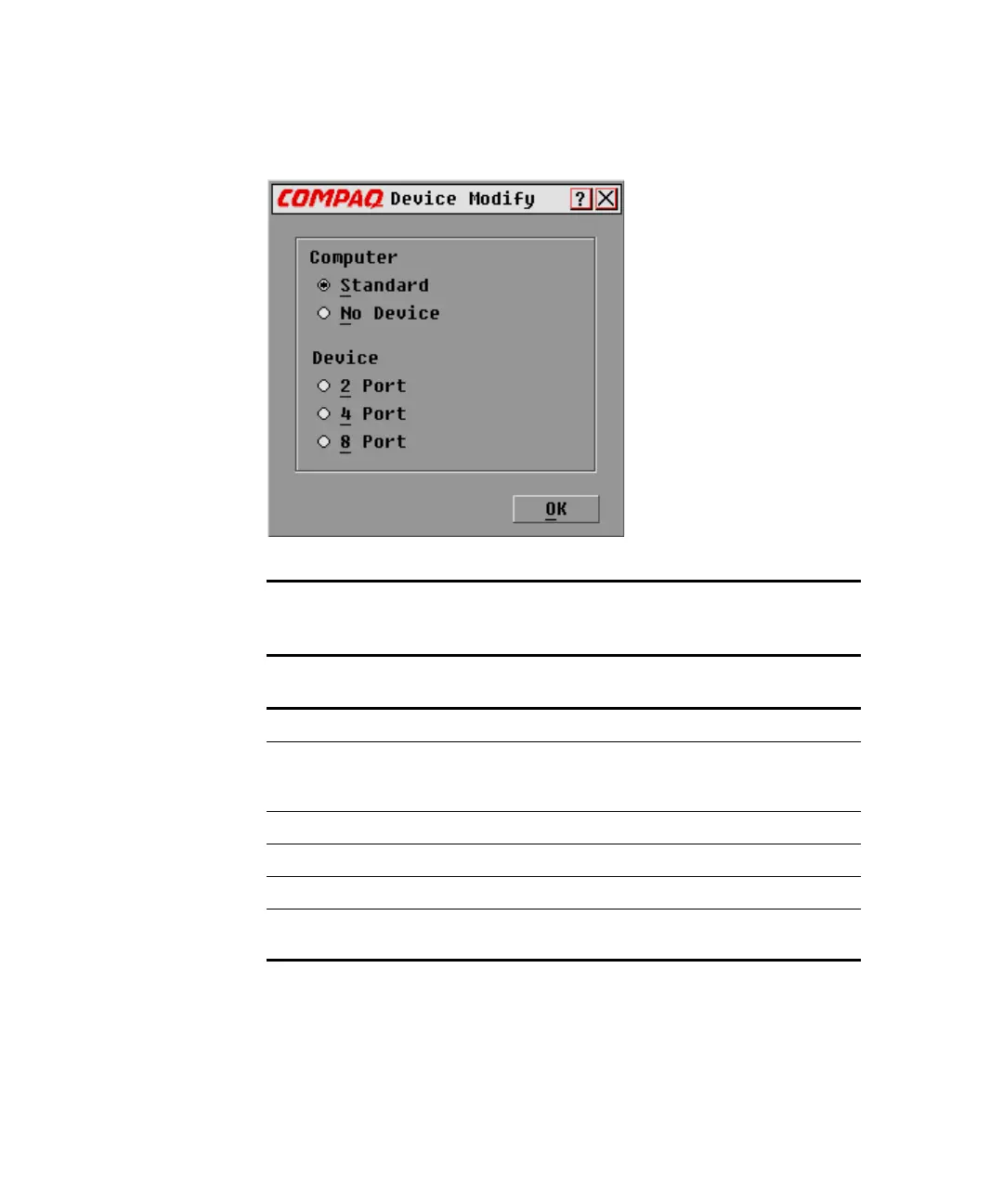

Figure 4-6. Device Modify screen
Table 4-8
Device Modify Screen Functions
Field/Button Select/Click to… Alternate
Method
Standard
use basic computer connection
Press
Alt
+
S
No Device
delete this number or name from the list of
computers on the Main screen if you have no
switch or computer connected to it
Press
Alt
+
N
2 Port
assign a 2-Port switch as your secondary system
Press
Alt
+
2
4 Port
assign a 4-Port switch as your secondary system
Press
Alt
+
4
8 Port
assign an 8-Port switch as your secondary system
Press
Alt
+
8
OK
accept changes, close the current screen, and
return to the previous screen
Press
Alt
+
O
