4.
Use two M6 screws to attach the mounting bracket to the front of the
rack.

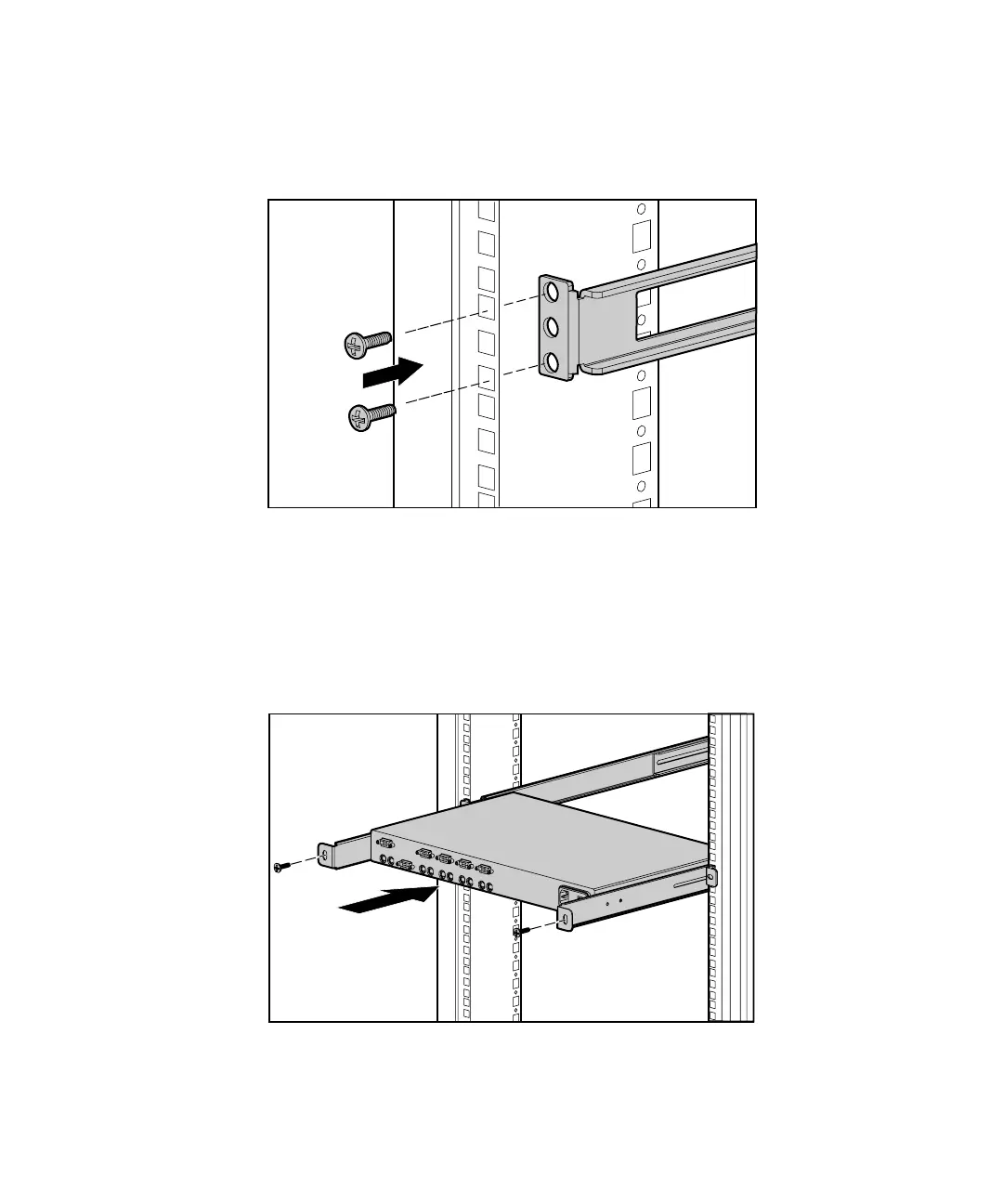

Figure 2-17. Attaching the mounting brackets to the front of the rack
5.
Tighten the wing nuts.
Rack-mount Installation
Slide the switch box into the rack-mount brackets as shown in Figure 2-18,
then secure with a screw on each side.
Figure 2-18. Sliding the switch box into the rack-mount brackets
