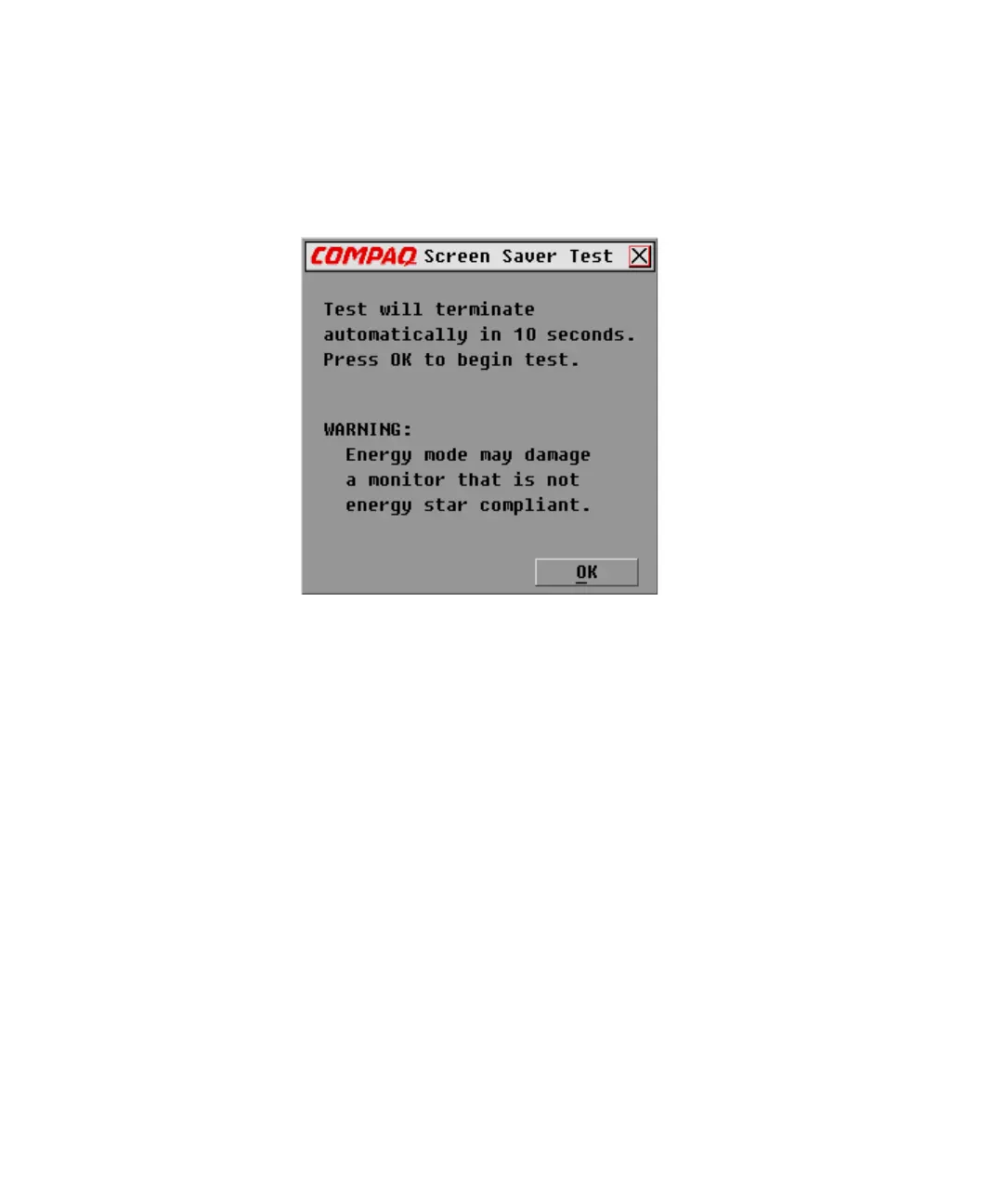

Screen Saver Test
Click OK to activate the Screen Saver Test. After 10 seconds you are returned
to the Security screen.
Figure 4-14. Screen Saver Test
Broadcast Screen
The broadcast feature enables you to simultaneously control more than one
computer in a system. This feature is useful when you want to ensure that all
selected computers receive identical input. In a tiered system, you can
broadcast to any combination of computers on the entire system.
Keyboard
The keyboard state must be identical for all computers receiving a broadcast to
interpret keystrokes identically. Specifically, the Caps Lock and Num Lock
modes should be the same on all keyboards.
