Using the On-Screen Display 4-5
Compaq Confidential – Need to Know Required
Writer:
John Turner
Project:
Compaq Server Console Switch User Guide
Comments:
Part Number:
1141555-002
File Name:
e-ch4 Using the OSD.doc
Last Saved On:
8/22/00 10:37 AM

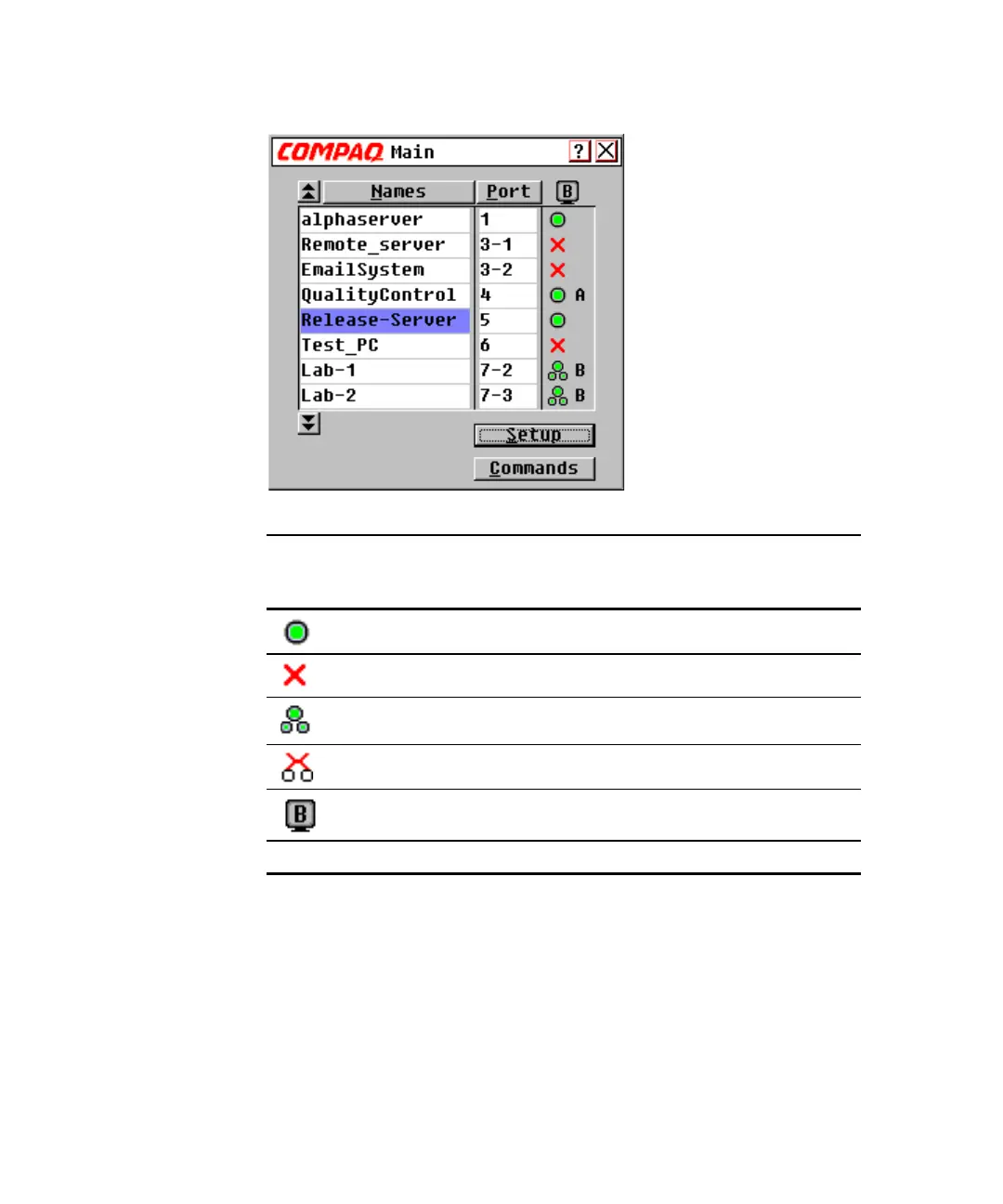

Figure 4-1. OSD Main screen
Table 4-3
Status Port Symbols
Computer is connected and running
Connected computer is not running or not operating properly
Tiered switch is connected and running
Tiered switch is not running or not operating properly
Identifies which user you are in a Dual Console configuration
A
,
B
Console identifier in a Dual Console 8-Port switch
Primary ports have a single port number. Secondary ports have the port
number of the primary switch they are attached to followed by a dash, and
then the number of the secondary port.
