Hardware Installation 2-9
Compaq Confidential – Need to Know Required
Writer:
John Turner
Project:
Compaq Server Console Switch User Guide
Comments:
Part Number:
141555-002
File Name:
c-ch2 Hardware Installation.doc
Last Saved On:
8/22/00 10:26 AM
3.
Slide the switch box with rails into the rail mounting brackets.

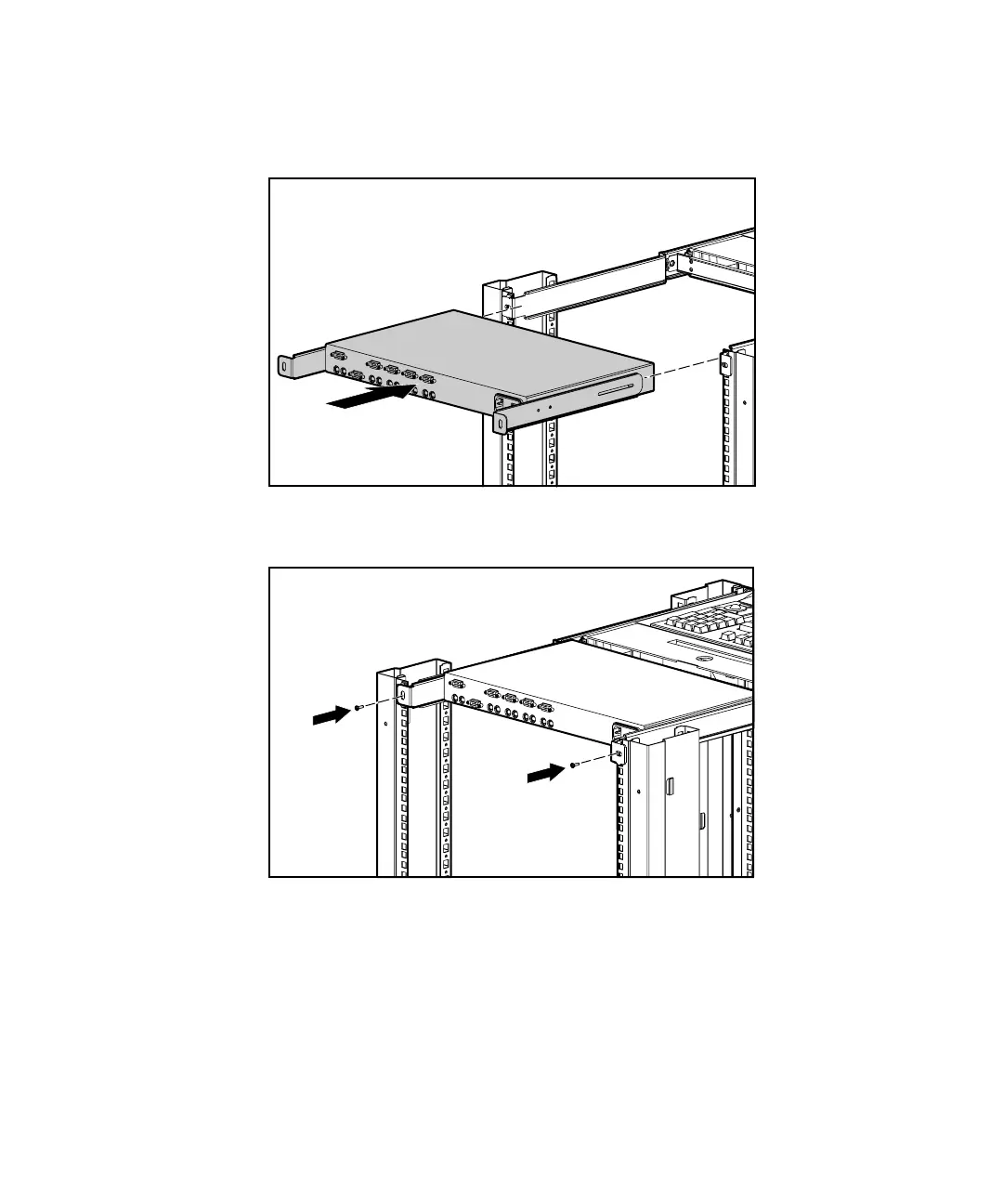

Figure 2-10. Sliding the switch box into the rack
4.
Use two M6 screws to secure the rails to the back of the rack.
Figure 2-11. Securing the rails
