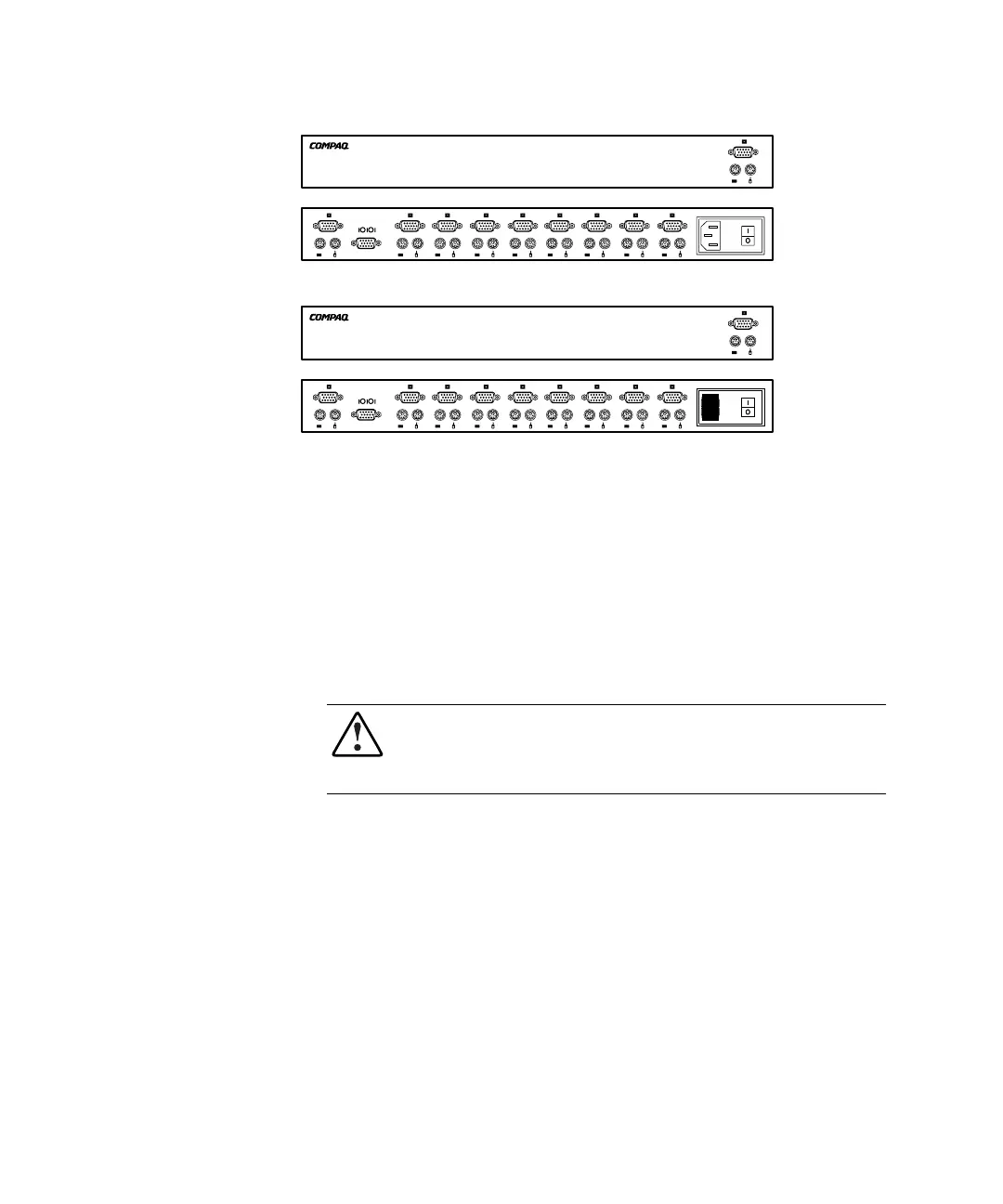

Figure 3-5. Dual Console 8-Port AC connectors
Figure 3-6. Dual Console 8-Port DC connectors
2. Decide which computer is to be connected to port 1.
a. Connect the computer’s mouse to the appropriate connector beneath
the port labeled 1.
b. Connect the computer’s monitor to the 15-pin VGA connector.
c. Connect the computer’s keyboard to the appropriate connector.
d. Bundle and label the cables for easy identification.
3. Repeat step 2 for all remaining computers to be connected to the switch
box.
WARNING:
To reduce the risk of electric shock or damage to your equipment,
do not disable the power cord grounding feature. This equipment is designed to
be connected to a grounded (earthed) power outlet that is easily accessible to
the operator. The grounding plug is an important safety feature.
4. Connect the power cord to the switch box.
