3-6 Compaq Server Console Switch User Guide
Compaq Confidential – Need to Know Required
Writer:
John Turner
Project:
Compaq Server Console Switch User Guide
Comments:
Part Number:
141555-002
File Name:
d-ch3 Cabling.doc
Last Saved On:
8/22/00 10:28 AM
+
+
+ 48VDC -
+
-
1
4
2
3

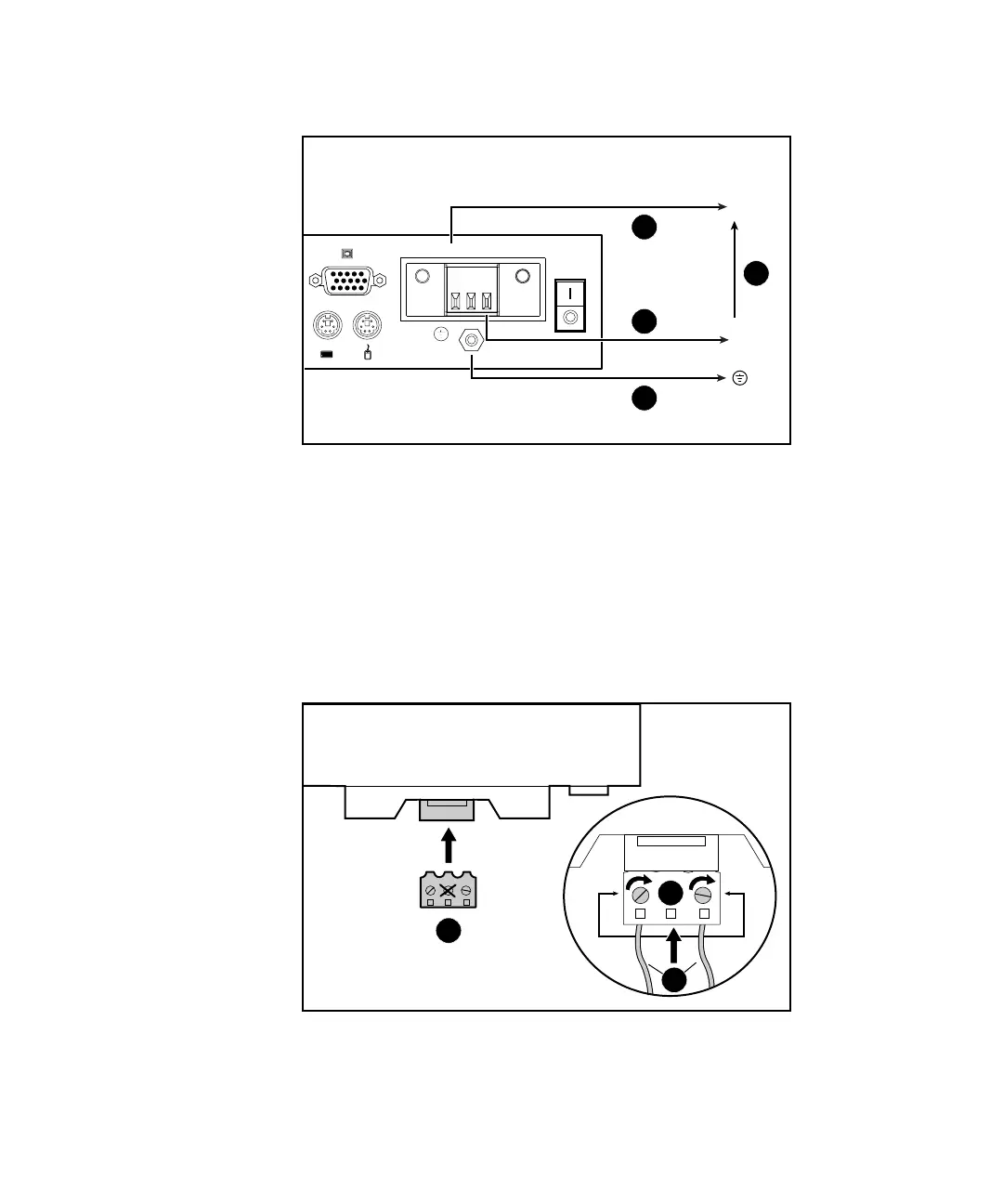

Figure 3-7. Wiring diagram
Red wire
Black wire
Green/Yellow striped wire. Use chassis ground connection only
48 Volt DC (to external fused 48 volt DC supply)
1. Plug connector into receptacle. Do not use ground connection
through connector.
+
-
1
2
3
Figure 3-8. Connecting the wires
2. Insert stripped wires and tighten screws .
