POWERVENT SYSTEMS
When vertical venting is not possible,
the only acceptable method for
horizontal sidewall venting is with the
use of a Tjernlund model GPAK-1TR
or Field Controls model SWG-4R
power venter. Follow all application
and installation instructions
supplied with the power venter.
Power Venter Requirements
1. Use Type B vent pipe,
2. 30 feet maximum vent length,
3. 5 feet minimum vent length,
4. Maximum of three (3) 90°
elbows.
IMPORTANT: DO NOT COMMON
VENT THE FURNACE WITH ANY
OTHER APPLIANCE USING
EITHER POWER VENTER. The use
of any other type of power vent
system is not approved or
recommended by the manufacturer.
A WARNING: 45,000 AND 67,500
BTUH FURNACES MUST NOT BE
AUXILIARY POWER VENTED
UNLESS THE ORIGINAL VENT
PRESSURE SWITCH IS REPLACED
WITH A 0.30" VENT PRESSURE
SWITCH, PART NO. 42-24064-01.
FAILURE TO REPLACE THE
PRESSURE SWITCH AS
SPECIFIED COULD LEAD TO
IMPROPER OPERATION OF THE
FURNACE RESULTING IN
PROPERTY DAMAGE, PERSONAL
INJURY, OR DEATH.
A WARNING: DO NOT HORI-
ZONTALLY VENT A STANDING
PILOT FURNACE WITH THESE
POWER VENT SYSTEMS. HORI-
ZONTALLY VENTING A STANDING
PILOT FURNACE CAN RESULT IN
PROPERTY DAMAGE FROM FIRE,
OR SERIOUS PERSONAL INJURY
AND DEATH FROM CARBON
MONOXIDE POISONING.
IMPORTANT: SEE POWER
VENTER WIRING DIAGRAMS,
FIGURES 116-117, PAGES 106-107.
Address all questions regarding
power venter installation, agency
listings, and furnace model
compatibility to:
Tjernlund Products, Inc.
(800) 255-4208 or
(612) 426-2993
Field Controls L.L.C.
(800) 742-8368 or
(919) 522-0214
y

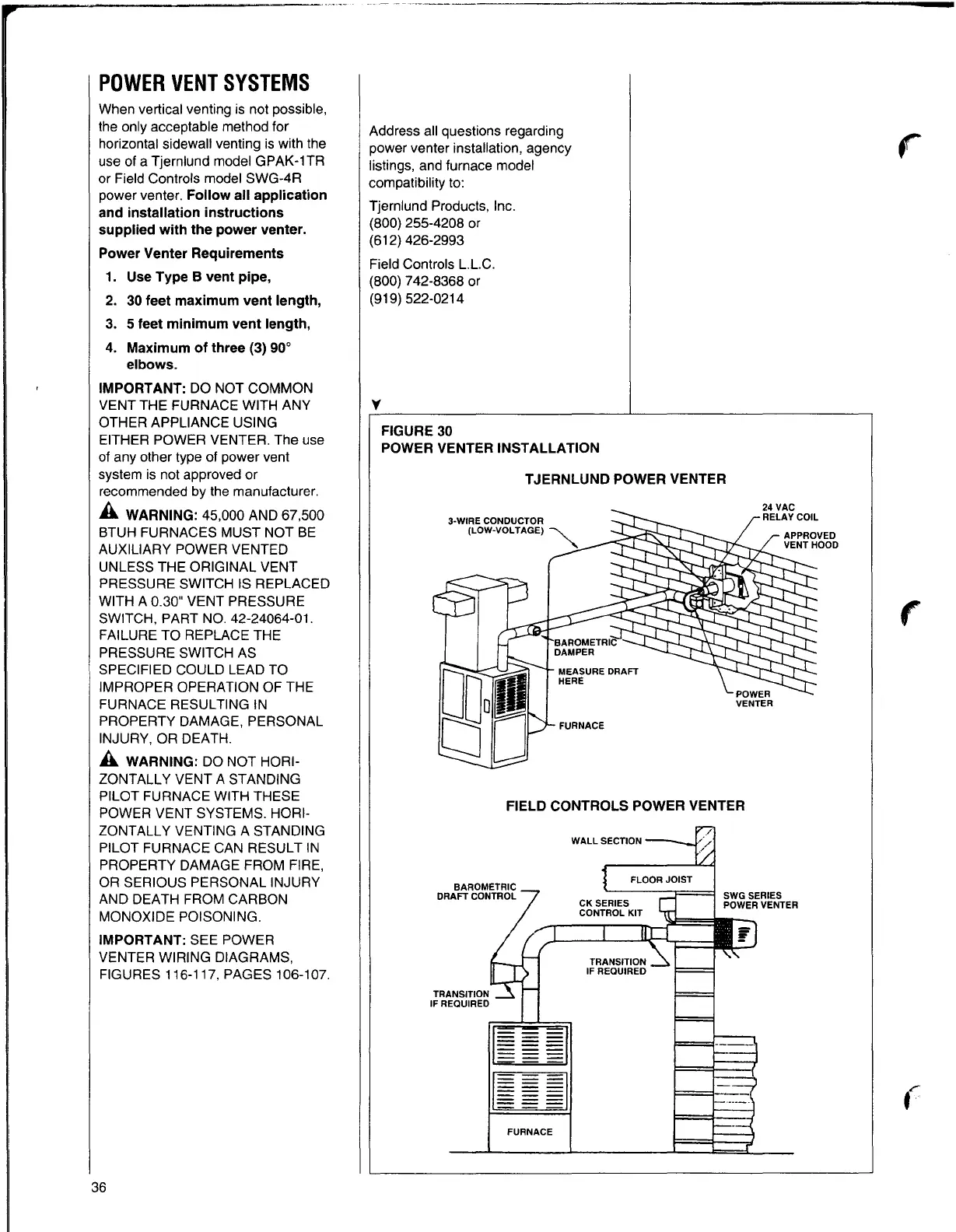

FIGURE 30
POWER VENTER INSTALLATION
T JERNLUND POWER VENTER
3-WIRE CONDUCTOR
(LOW-VOLTAGE)~
FIELD CONTROLS POWER VENTER
BAROMETRIC
DRAFT CONTROL
TRANSITION
IF REQUIRED
Hi
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
FURNACE
CK SERIES
CONTROL KIT
,
(
