CONQUEST 80 - Water Heater; Installation and Service Checklist

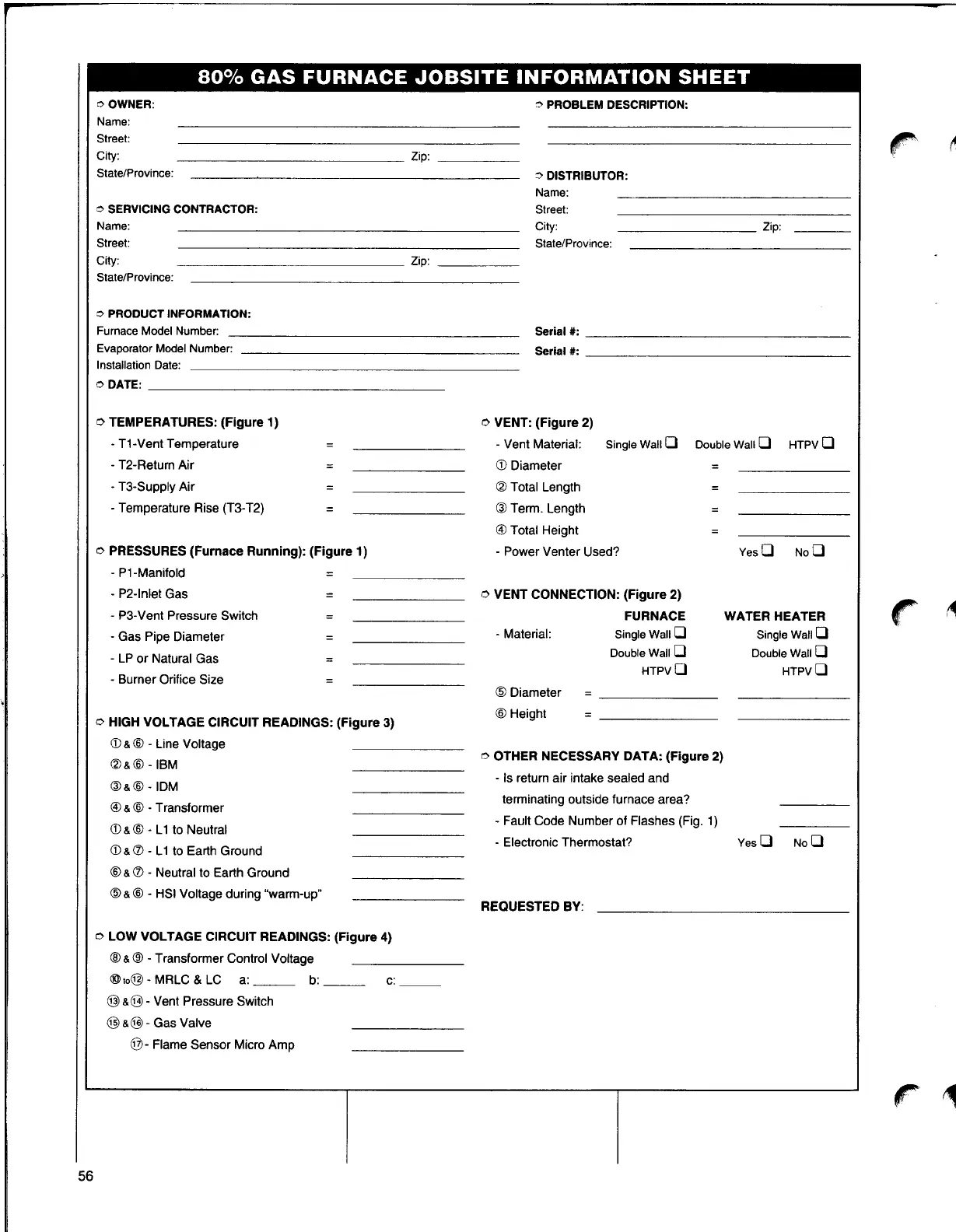

80% GAS FURNACE JOBSITE INFORMATION SHEET
c:>OWNER:
c:>PROBLEM DESCRIPTION:
Name:
Street:
City: ______________ Zip: ____ _
State/Province:
c:>DISTRIBUTOR:
Name:
o SERVICING CONTRACTOR:
Street:
Name:
City: _________ Zip:
Street:
State/Province:
City: ______________ Zip: ____ _
State/Province:
o PRODUCT INFORMATION:
Furnace Model Number:
Evaporator Model Number:
Installation Date:
o DATE: _________________ _
o TEMPERATURES: (Figure 1)
- T1-Vent Temperature
- T2-Return Air
- T3-Supply Air
- Temperature Rise (T3-T2)
o PRESSURES (Furnace Running): (Figure 1)
- P1-Manifold
- P2-lnlet Gas
- P3-Vent Pressure Switch
- Gas Pipe Diameter
- LP or Natural Gas
- Burner Orifice Size
o HIGH VOLTAGE CIRCUIT READINGS: (Figure 3)
CD& @ - Line Voltage
@&®- IBM
@&®- IDM
@ & ® - Transformer
CD
& @ - L 1 to Neutral
CD
& /JJ- L 1 to Earth Ground
® & IJJ- Neutral to Earth Ground
@
& ® - HSI Voltage during "warm-up"
o LOW VOLTAGE CIRCUIT READINGS: (Figure 4)
® & ® - Transformer Control Voltage
©10@- MRLC & LC a: b:
@&@- Vent Pressure Switch
@&@- Gas Valve
@- Flame Sensor Micro Amp
c:
Serial#: _______________ _
Serial#: _______________ _
o VENT: (Figure 2)
- Vent Material: Single Wall O Double Wall O HTPV0
CD Diameter
@Total Length
@ Term. Length
® Total Height
- Power Venter Used?
o VENT CONNECTION: (Figure 2)
FURNACE
- Material:
@Diameter
® Height
Single Wall □
Double Wall 0
HTPV □
o OTHER NECESSARY DATA: (Figure 2)
- Is return air intake sealed and
terminating outside furnace area?
- Fault Code Number of Flashes (Fig. 1)
- Electronic Thermostat?
REQUESTED BY:
YesO No □
WATER HEATER
Single Wall □
DoubleWallO
HTPV □
YesD No □
