16. REM MEASUREMENT
The REM Routine is used to measure vertical distances where a target cannot be placed
such as power lines, bridge heights and overhead cables.

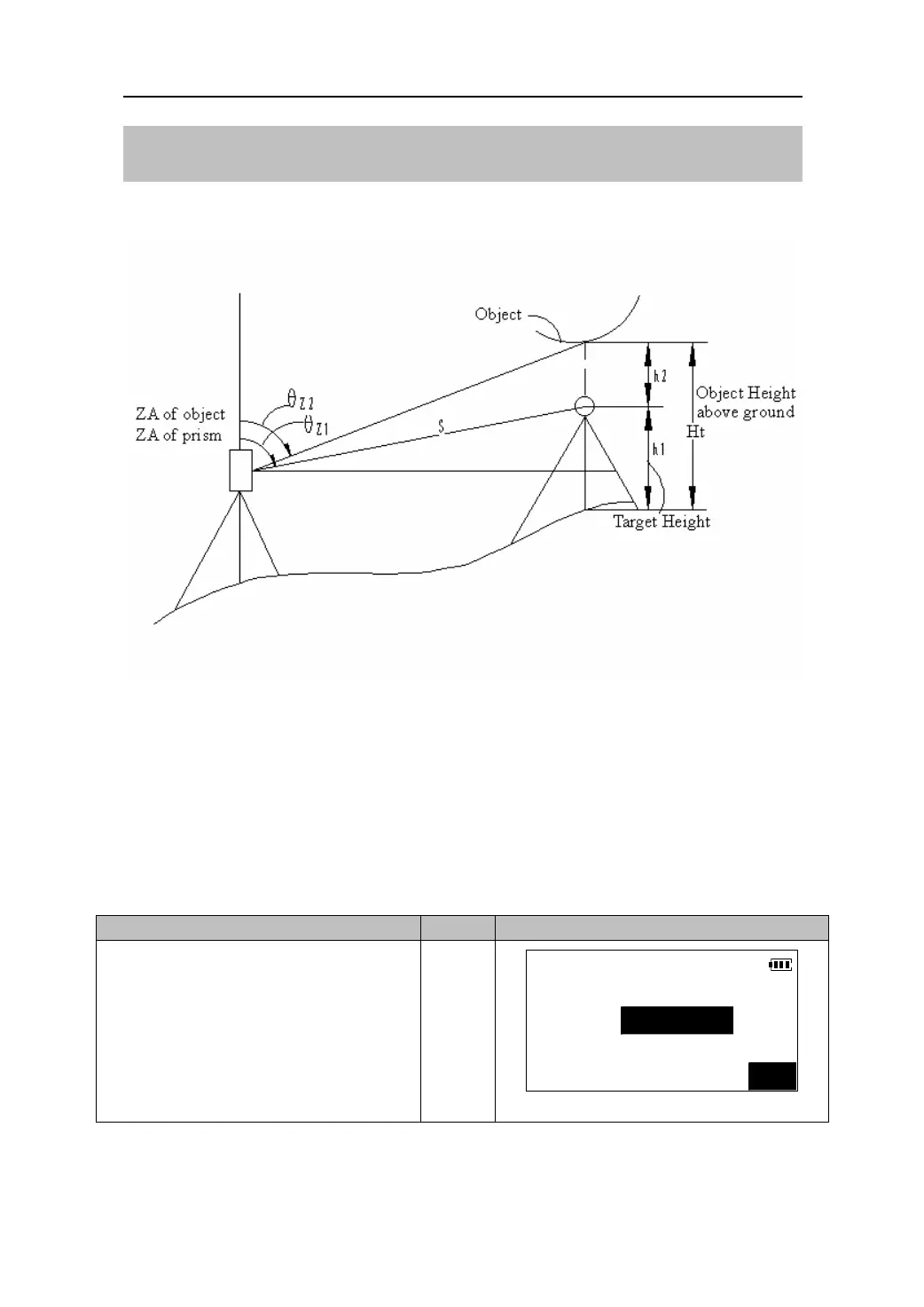

z The height of the target is calculated using the following formula:
Ht=h1+h2
h2=Ssinθ
z1
×cotθ
z2
－ Scosθ
z1
z Before using this routine, the softkey 【REM】 must be allocated in the Meas Mode
according to “22.3.1 Defining softkeys”. Selecting“5.REM” in the Menu Mode can
perform the same function.
O
p
eratin
g
Ke
y
s Dis
p
la
y
1．Position the prism directly under or directly
Ins.h & tgt.h
over the object and measure the prism
Tgt.h<m>：1.50
height.
2．In the third page of the Meas mode, press
【HT】 to enter the prism height. Then
press 【OK】 to return
.
【HT】
Ins.h<m>: 1.35
【OK】
OK
