13.2 Coordinates Setting-out Measurement
Setting-out coordinates measurement is used to set out the point whose
coordinates is known. After inputting the coordinates for the point to be set out,
the instrument calculates the setting-out horizontal angle and horizontal distance
and stores them in the memory. By selecting the horizontal angle and then the
horizontal distance setting-out functions, the required coordinate location can be
set out.
z To find the Z coordinate, ensure that the instrument height and the prism height
are the same.

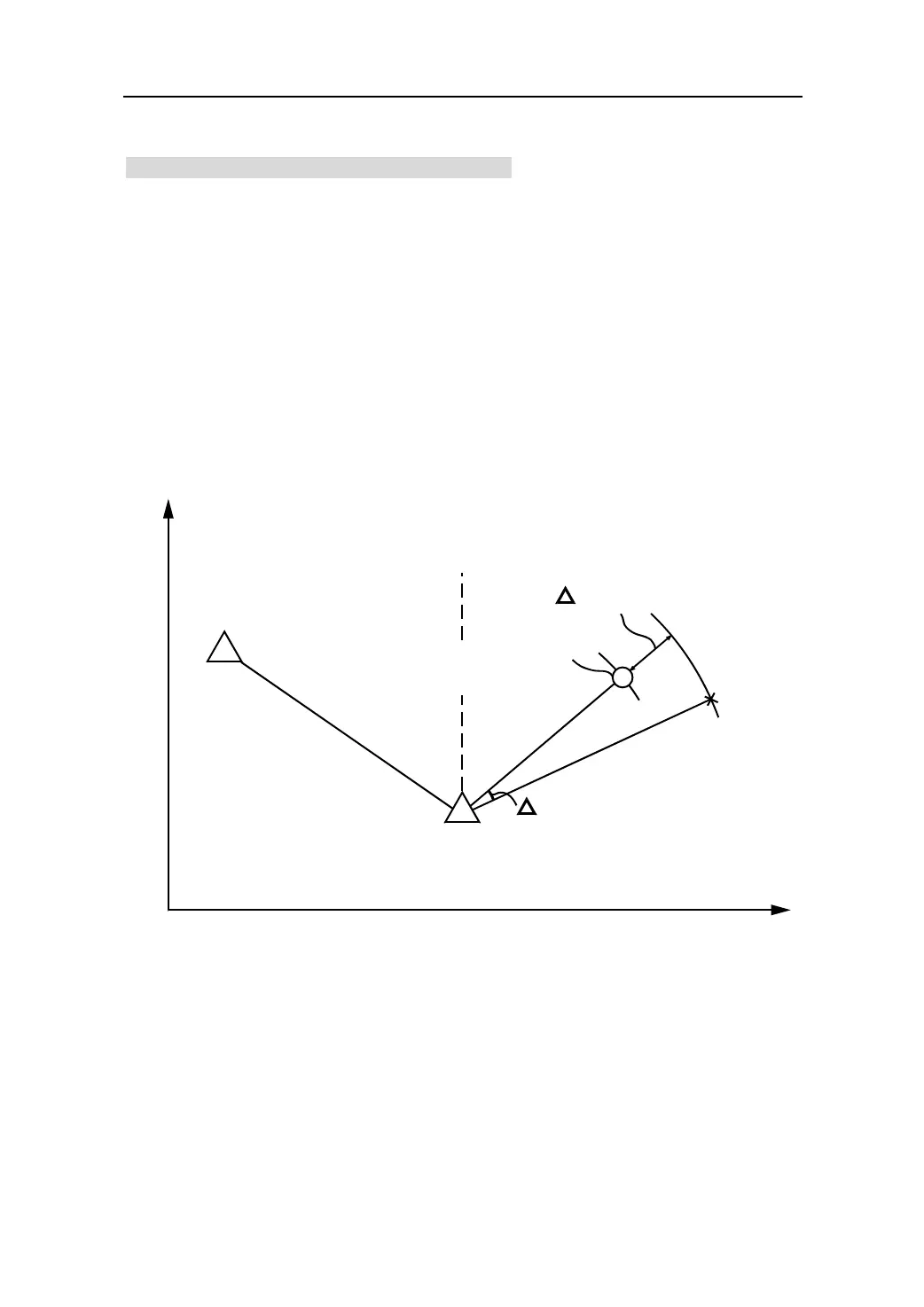

0
Backsight
Point
Instrument station
Angle
Point to be set out
Distance
Present target
Position
40
