19. SETTING-OUT LINE

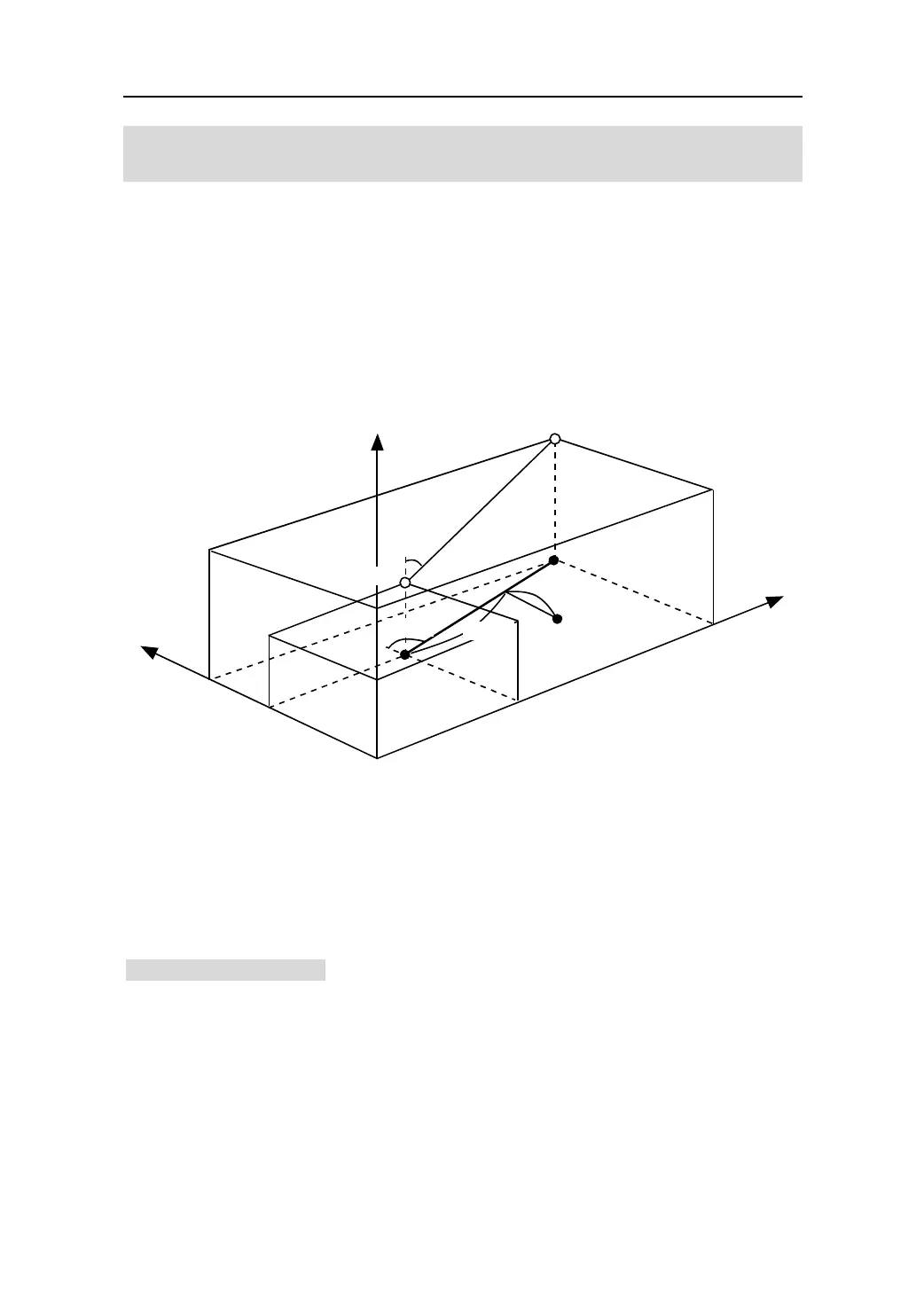

The Setting Out Line Routine allows for the set out of a point along a baseline at a
designated distance off the line as well as finding out the distance from a baseline to a
measured point.
Slope
Offset
Length
Azmuth
2nd Pt
Origin
N
Z
E
To perform setting-out line function, define the softkey 【LINE】 in the Meas mode
following the steps in “22.3.1 Defining softkeys”.
Selecting “9. S-O line” in the Menu Mode can perform this function also.
19.1 Defining baseline
In order to use this function correctly, the first thing that should be done is to establish
the base line. This can be done by inputting the coordinates of two known points or
by inputting the coordinates and the direction (angle) and grade of the line.
