Curtis 1232E/34E/36E/38E & 1232SE/34SE/36SE Manual, os 30
24 NOVEMBER 2015

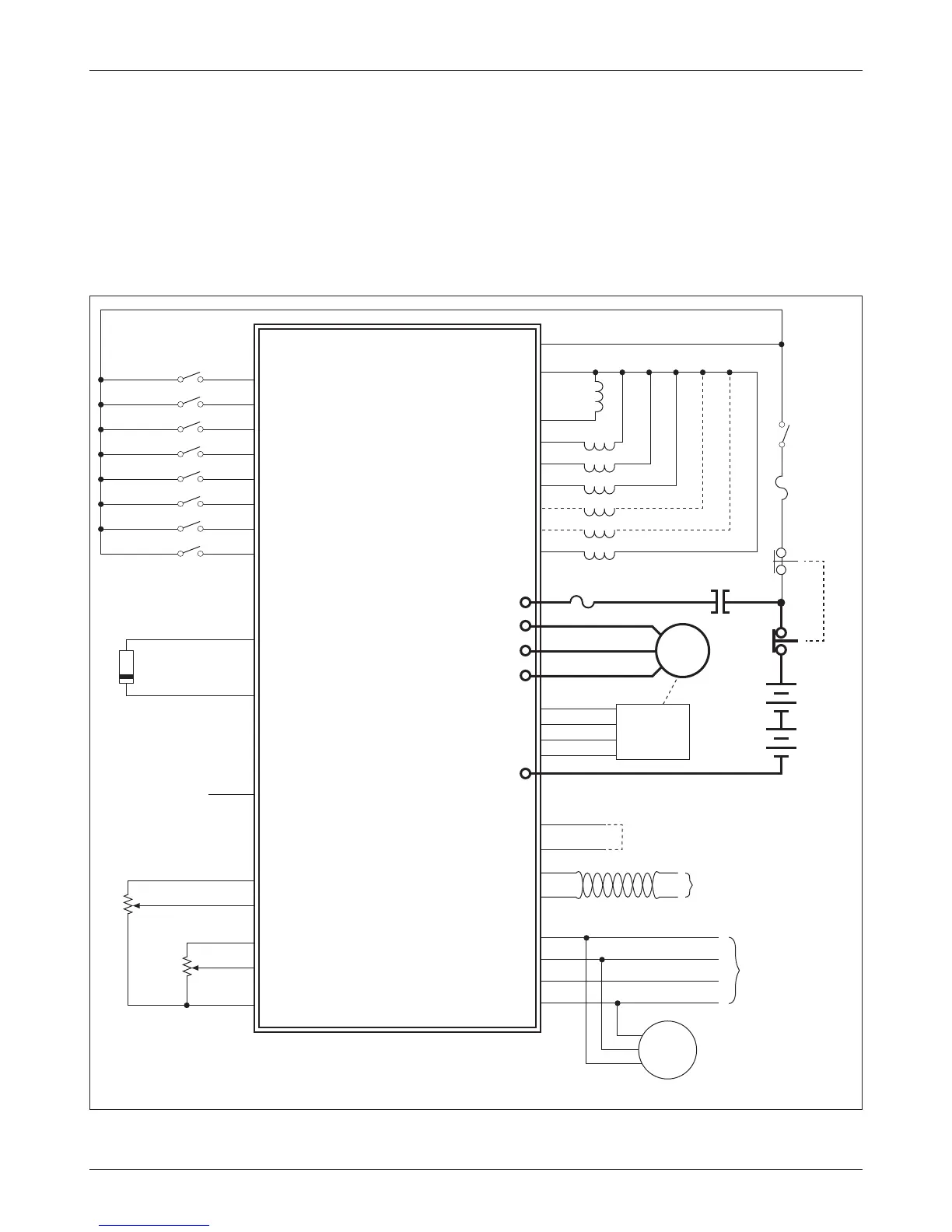

Fig. 3 Basic wiring diagram, Curtis 1232E/SE, 34E/SE, 36E/SE, and 38E motor controllers.
2 — INSTALLATION & WIRING: Standard Wiring Diagram
CONTROLLER WIRING: BASIC CONFIGURATION
A basic wiring diagram is shown in Figure 3. rottle and brake are shown in
the diagram as 3-wire potentiometers; other types of throttle and brake inputs
are easily accommodated, and are discussed in the following throttle wiring
section.
e main contactor coil must be wired directly to the controller as shown
in Figure 3 to meet EEC safety requirements. e controller can be programmed
1232E/34E/36E/38E, 1232SE/34SE/36SE
CONTROLLER
SWITCH 16
J1-14
SWITCH 8
J1-33
REVERSE
SWITCH 7
J1-22
FORWARD
SWITCH 6
J1-12
SWITCH 5
J1-11
SWITCH 4
J1-10
SWITCH 3
J1-9
INTERLOCK
SWITCH 2 / ANALOG 2
J1-8
SWITCH 1 / ANALOG 1
J1-24
I/O GROUND
J1-7
THROTTLE POT HIGH
J1-15
THROTTLE POT WIPER
J1-16
POT2 HIGH
J1-27
POT2 WIPER
J1-17
POT LOW
J1-18
THROTTLE POT
BRAKE POT
AC
MOTOR
MAIN
J1-19
J1-3
J1-4
J1-5
J1-6
J1-13
PROP. DRIVER
DRIVER 4
DRIVER 3
DRIVER 2
DRIVER 1
KSI
COIL RETURN
MAIN
BRAKE
PROP. VALVE
J1-1
KSI
POSITION
FEEDBACK
**
J1-26
J1-31
J1-32
J1-7
J1-23
J1-35
J1-21
J1-34
CAN PORT
Connect jumper for 120 Ω
CAN bus termination
J1-25
J1-28
J1-29
J1-7
SERIAL PORT
(4-pin Molex)
4
3
1
2
CURTIS
MODEL 840
DISPLAY
8
6
5
EMERG. REV.
KEYSWITCH
B+
V
+5V
POSITION FEEDBACK B
CAN TERM L
CAN L
+12V
RX
I/O GROUND
U
W
POSITION FEEDBACK A
I/O GROUND
CAN TERM H
B-
CAN H
TX
PUMP
EMERGENCY
STOP
J1-20
DIGITAL DRIVER 6
J1-2
DIGITAL DRIVER 7
ANALOG OUT (0–10V) *
J1-30
MOTOR
TEMPERATURE
SENSOR
Note: KTY sensor shown.
The banded end must be
connected to I/O ground.
*
1232E and 1232SE do not include ANALOG OUT.
BATTERY
(24V–96V)
** quadrature encoder (ACIM motors)
sin/cos sensor (SPM motors)
