Reverse Deadband 0.00 – 5.00 V
Reverse_Deadband 0 – 32767
0x3005 0x00
Reverse Map 0 – 100 %
Reverse_Map 0 – 32767
0x3006 0x00
Reverse Max 0.00 – 5.00 V
Reverse_Max 0 – 32767
0x3007 0x00
Reverse Offset 0 – 100 %
Reverse_Offset 0 – 32767
0x3008 0x00
Throttle Filter 0.5–125.0Hz Setsthelowpassltercutofffrequencyforthethrottlepotwiperinput.
Throttle_Filter 131 – 32767 Higher values will make the throttle more responsive to quick changes.
0x3030 0x00 Lower values will make the throttle less responsive to electrical noise.
3 — PROGRAMMABLE PARAMETERS: Throttle Parameters
THROTTLE MENU, cont’d
ALLOWABLE
PARAMETER RANGE DESCRIPTION

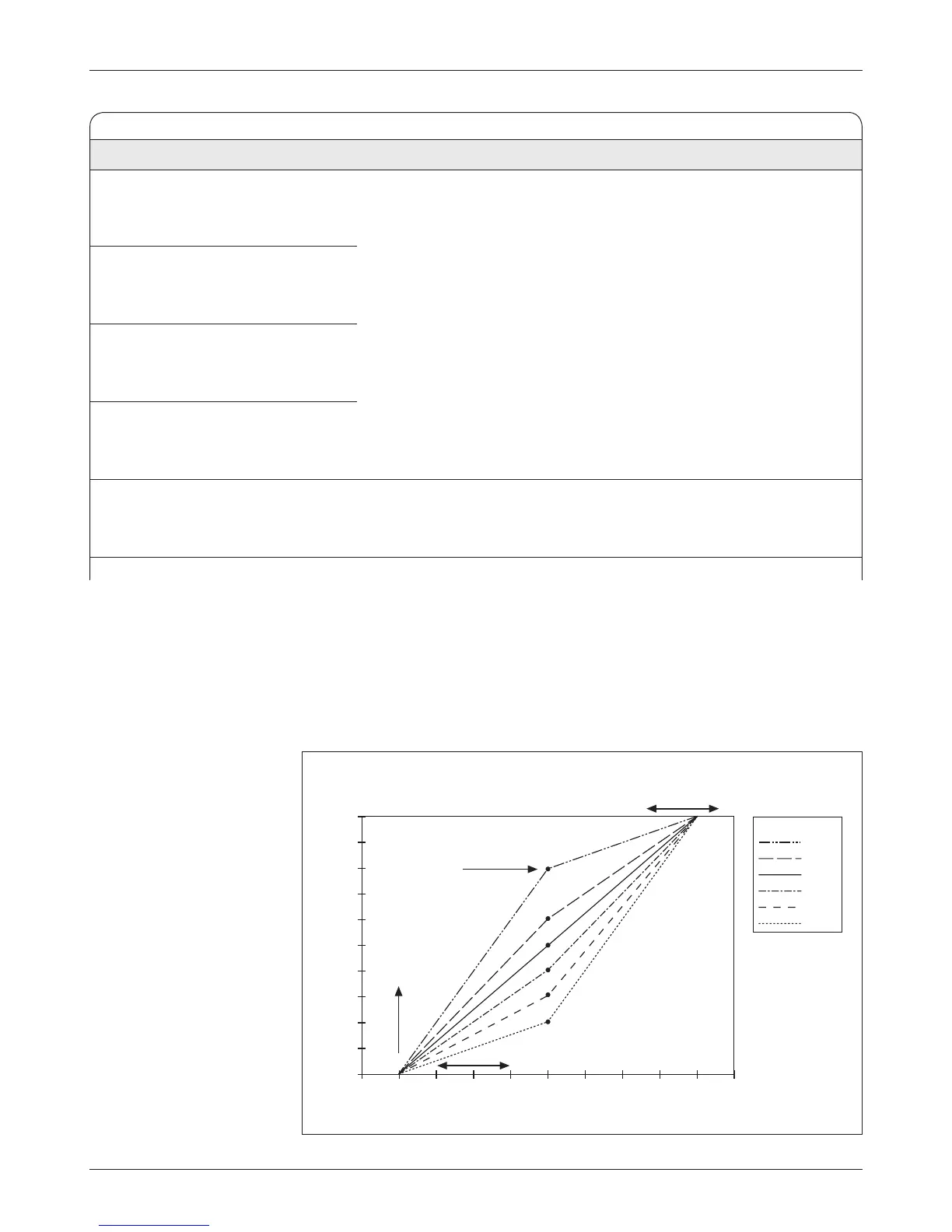

Fig. 14 Eect of throttle
adjustment parameters.
Together these four generic
parameters determine the
controller’s response to
throttle demand
(in forward or reverse)
and to brake demand.
In the examples shown
in this gure,
Deadband = 0.5V
Max = 4.5V
Oset = 0.
Max parameter
adjusts this endpoint.
80%
60%
50%
40%
30%
20%
MAP
THROTTLE INPUT VOLTAGE (volts)
CONTROLLER OUTPUT (percent)
Map determines the “knee”
in the output; this knee is
at an 80% map setting.
Offset
parameter
raises this
endpoint.
Deadband parameter
adjusts this endpoint.
5.04.03.02.01.0 0
100
90
80
70
60
50
40
30
20
10
0
The four Throttle Reverse parameters are the same
as their Throttle Forward counterparts, and apply when
the throttle direction is reversed.
