REGEN LIMITING MAP MENU
ALLOWABLE
PARAMETER RANGE DESCRIPTION
Nominal 0 – 100 % Sets
PL_Regen_Nominal 0 – 32767
0x3065 0x00
Plus Delta 0 – 100 % Sets
PL_Regen_Nominal_Plus_Delta 0 – 32767
0x3066 0x00
Plus 2xDelta 0 – 100 % Sets
PL_Regen_Nominal_Plus_2xDelta 0 – 32767
0x3067 0x00
Plus 4xDelta 0 – 100 % Sets
PL_Regen_Nominal_Plus_4xDelta 0 – 32767
0x3068 0x00
Plus 8xDelta 0 – 100 % Sets
PL_Regen_Nominal_Plus_8xDelta 0 – 32767
0x3069 0x00
3 — PROGRAMMABLE PARAMETERS: Regen Limiting Map Parameters
Theseparametersdenethepercentageofregencurrent
limit or braking current limit that will be applied at the speeds
denedbythenominalspeedanddeltaspeedparameters.
The curve can be shaped to limit the available torque at
various speeds. One possible use is to compensate for the
torque-speed characteristic of the motor.

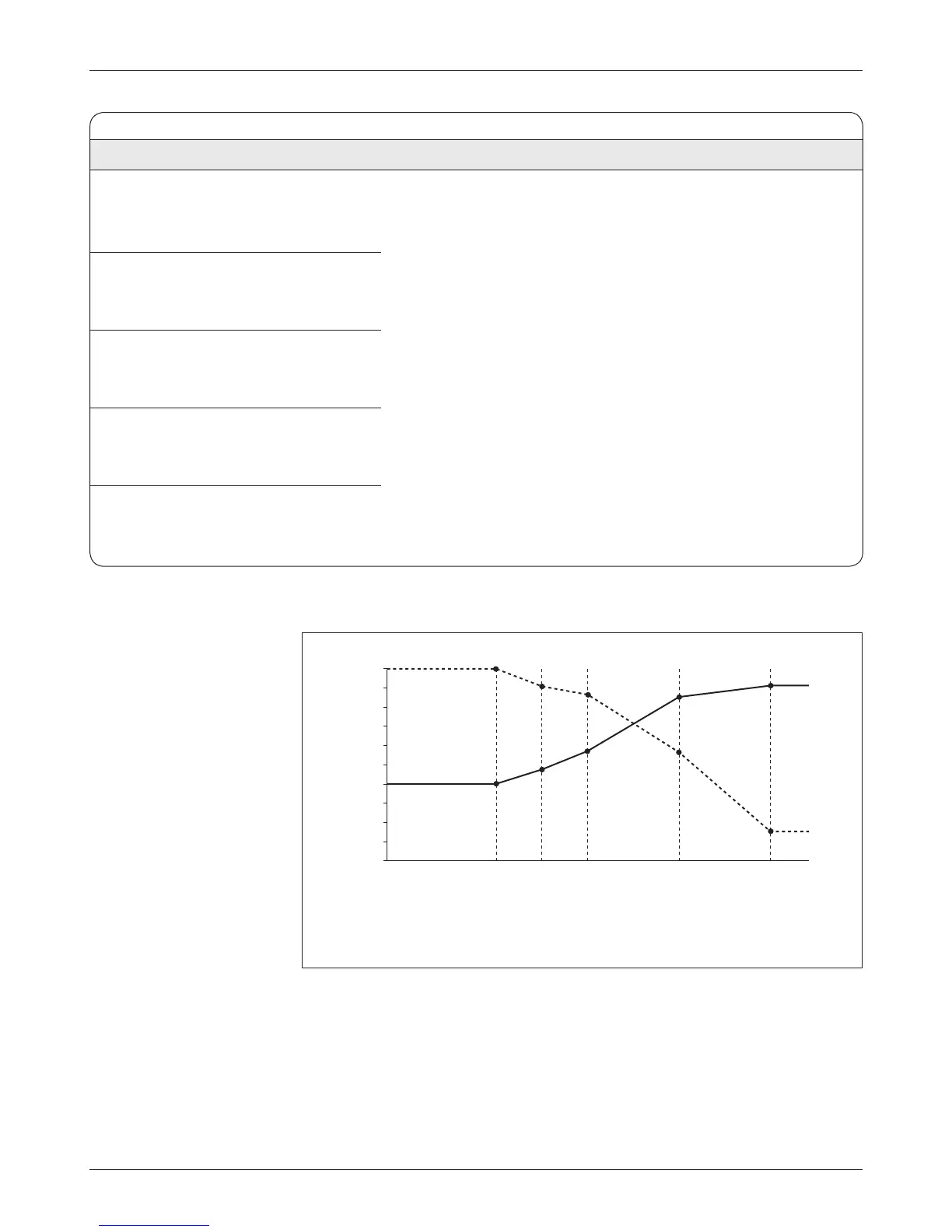

Fig. 13 Regen
current limiting map
(two examples).
NOMINAL
NOMINAL
0
20
40
60
80
100
POWER LIMIT (percent current limit)
VEHICLE SPEED (rpm)
NOMINAL SPEED
NOMINAL + Δ
NOMINAL + 2Δ
NOMINAL + 4Δ
NOMINAL + 8Δ
