Configuring LACP
LAG ports can contain different media types if the ports are operating at the same speed. Aggregated links can be set up
manually or automatically established by enabling LACP on the relevant links. Aggregate ports can be linked into link-
aggregation port-groups. Each group is comprised of ports with the same speed. The LACP Port Settings Page contains
fields
fo
r configuring LACP LAGs.
1. Click L2 features > LACP Port Settings. The LACP Port Settings Page opens:

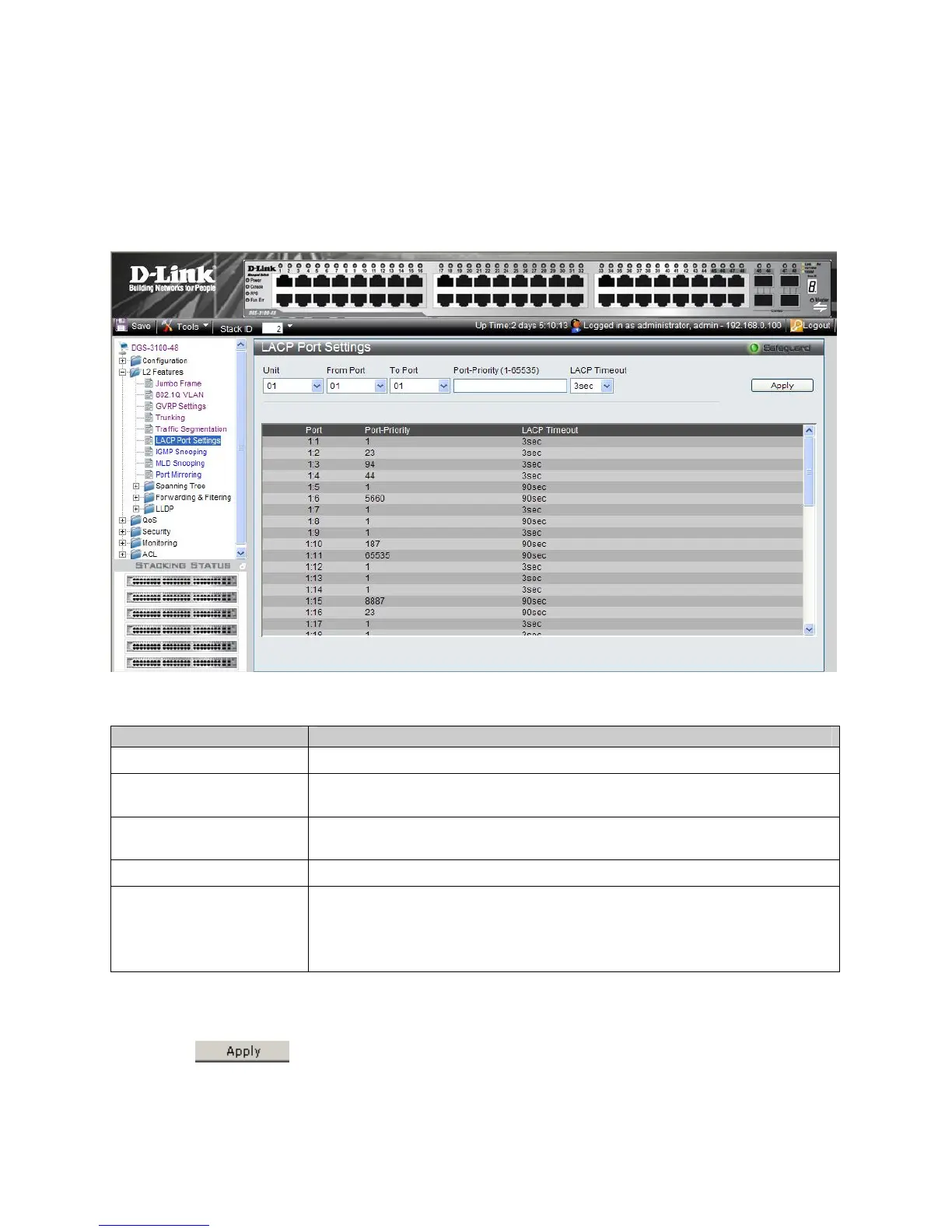

Figure 0–14 LACP Port Settings Page
The LACP Port Settings Page contains the following fields:
Field Description
Unit
Defines the stacking member’s Unit ID for which LACP parameters are displayed.
From Port
Defines the first port number that is displayed to which timeout and priority values are
assigned.
To Port
Defines the last port number that is displayed to which timeout and priority values are
assigned.
Port-Priority (1-65535)
Displays the LACP priority value for the port. The field range is 1-65535.
Timeout
Defines the administrative LACP timeout. The possible field values are:
Short (3 Sec) — Defines the LACP timeout as 3 seconds.
Long (90 Sec) — Defines the LACP timeout as 90 seconds. (This is the default
value).
2. Select a stacking member in the Unit field.
3. Select the ports to and from which the LACP parameters are displayed in the From/To Port fields.
4. Define the Port-Priority and LACP Timeout fields.
5. Click
. The LACP parameters are defined, and the device is updated.
