Viewing Packet Size Information
The Packet Size Page displays packets received by the switch, arranged in seven groups and classed by size, to be viewed as
either a line graph or a table.
1. Click Monitoring > Packet Size. The Packet Size Page opens:

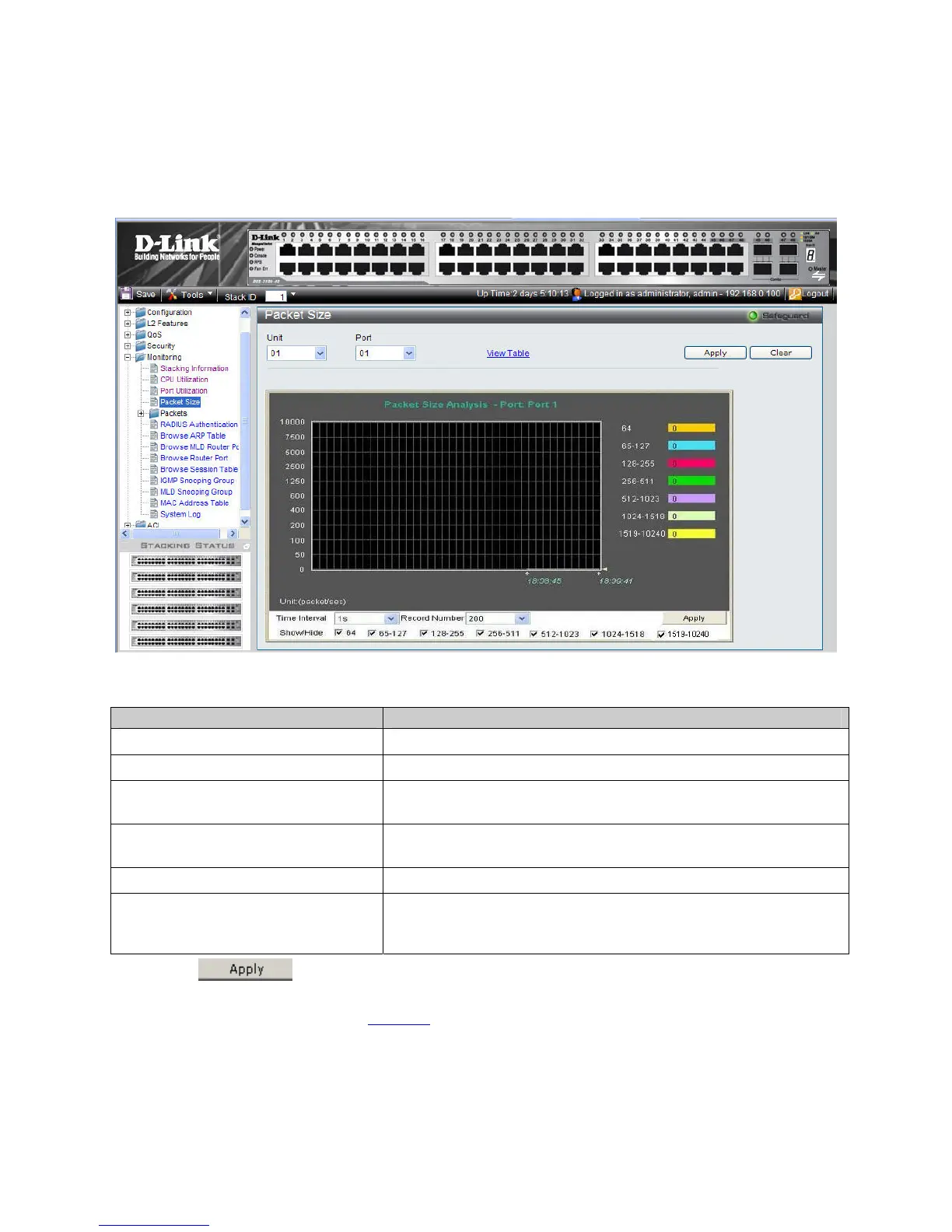

Figure 6-4 Packet Size Page
The Packet Size Page contains the following fields:
Field Description
Unit
Defines the unit number.
Port
Defines the port number.
Packet Size Analysis – Selected Port
Number
Displays current packet size for ports.
Time Interval
Displays the time intervals at which the packet samples are taken. The
possible field values are: 1s - 5s, 10s, 15s, 20s, 30s, 40s, 50s, and 60s.
Record Number
Displays the packet size record number.
Show/Hide
Displays or hides packets size. The following packet length ranges can be
displayed: 64, 65-127, 128-255, 256-511, 512-1023 and, 1024-1518 and
1519-10240.
2. Click . A sample record of packet size analysis is stored, and the device is updated.
3. Define the Show/Hide field.
4. To view the graph as a table, click
View Table.
17
5

D-Link DGS-3100 SERIES Specifications

General

Type	Managed
Layer	Layer 2+
Ports	10/100/1000BASE-T
SFP Ports	2 or 4 (depends on the model)
Additional SFP Ports	No
VLANs	Yes
Stacking	Yes, Physical Stacking
QoS	Yes
Jumbo Frame Support	Up to 9K bytes
Management	Web-based
Operating Temperature	0°C to 40°C
Humidity	10% to 90% non-condensing
Standards Compliance	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.1D, IEEE 802.1w, IEEE 802.1s, IEEE 802.1Q, IEEE 802.1p
Model	DGS-3100 SERIES
Storage Temperature	-40°C to 70°C
