D-Link DGS-3100 SERIES User Manual

DGS-3100 Series Gigabit Stackable Managed Switch User Manual
234

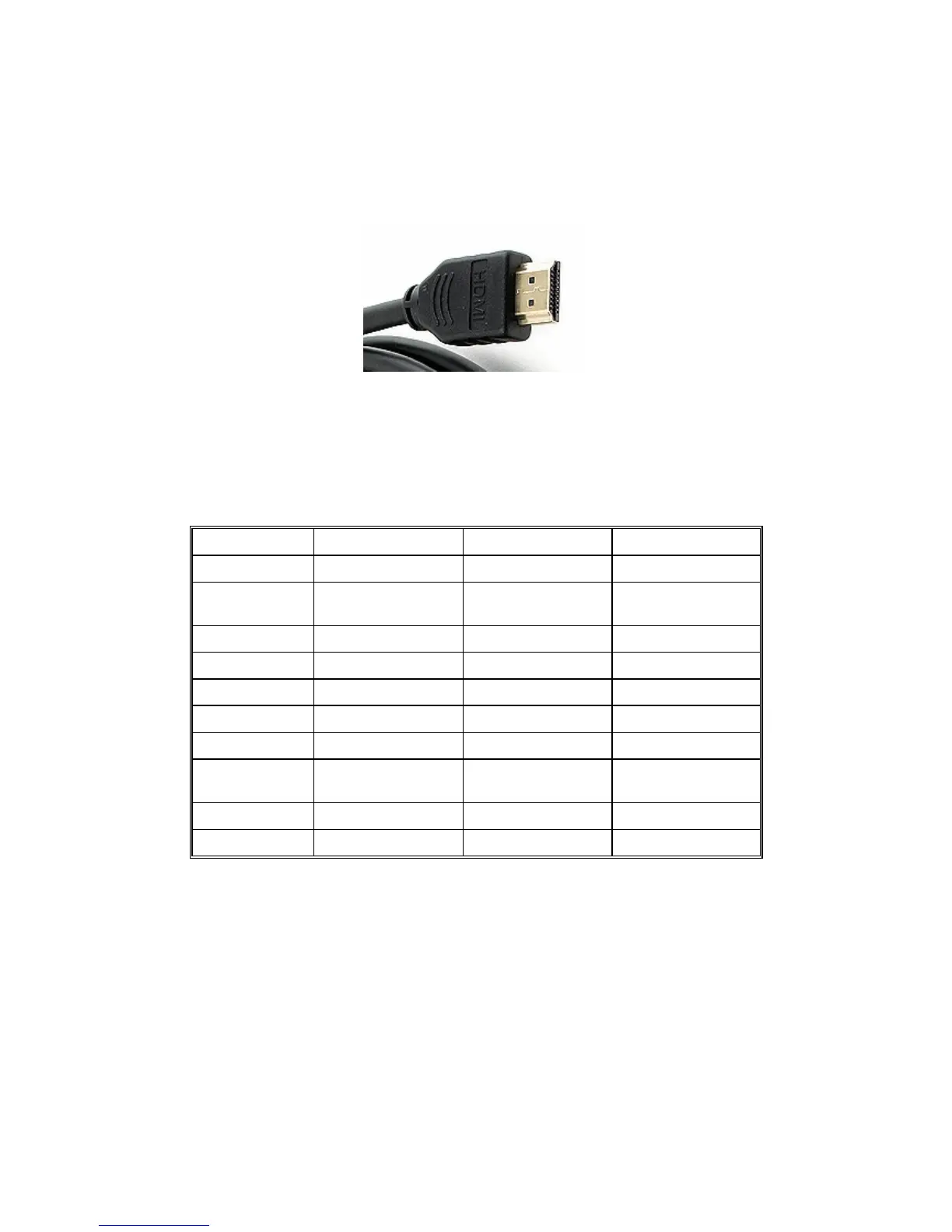

Pin Connections for the HDMI Connector
The stacking ports are used for connecting units using a standard HDMI cable.
The following figure illustrates the HDMI connector pin allocation:
Figure A-2 HDMI Pin Allocation
HDMI Ports Pinout
The following table describes the pin allocation of the HDMI connector:
PIN SIGNAL NAME PIN SIGNAL NAME
1
TMDS Data 2+
11
TMDS Clock Shield
2
TMDS Data 2
Shield
12
TMDS Clock-
3
TMDS Data 2
13
CEC
4
TMDS Data 1+
14
No Connect
5
TMDS Data 1 Shield
15 DDC Clock
6
TMDS Data 1- 16 DDC Data
7
TMDS Data 0+
17
Ground
8
TMDS Data 0
Shield
18
+5V Power
9
TMDS Data 0-
19
Hot Plug Detect
10
TMDS Clock+
20
SHELL
Table 3: HDMI Pin Assignments

D-Link DGS-3100 SERIES Specifications

General

Type	Managed
Layer	Layer 2+
Ports	10/100/1000BASE-T
SFP Ports	2 or 4 (depends on the model)
Additional SFP Ports	No
VLANs	Yes
Stacking	Yes, Physical Stacking
QoS	Yes
Jumbo Frame Support	Up to 9K bytes
Management	Web-based
Operating Temperature	0°C to 40°C
Humidity	10% to 90% non-condensing
Standards Compliance	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.1D, IEEE 802.1w, IEEE 802.1s, IEEE 802.1Q, IEEE 802.1p
Model	DGS-3100 SERIES
Storage Temperature	-40°C to 70°C
