Configuring Port Mirroring
Switches inherently forward frames to relevant ports only. This creates difficulty when traffic needs to be monitored, either
for information gathering (such as statistical analysis, security traces, etc.) or for troubleshooting higher-layer protocol
operation. The device supports up to 8 source ports.
To enable the use of traffic analysis and monitoring devices, it is recommended enabling the user to specify that a desired
‘target’ port receives a copy of all traffic passing through a designated ‘source’ port. All ports can be designated as source
ports.
In order to activate Port Mirroring, the target port must belong to the default VLAN.
1. Click L2 Features > Port Mirroring. The Port Mirroring Page opens:

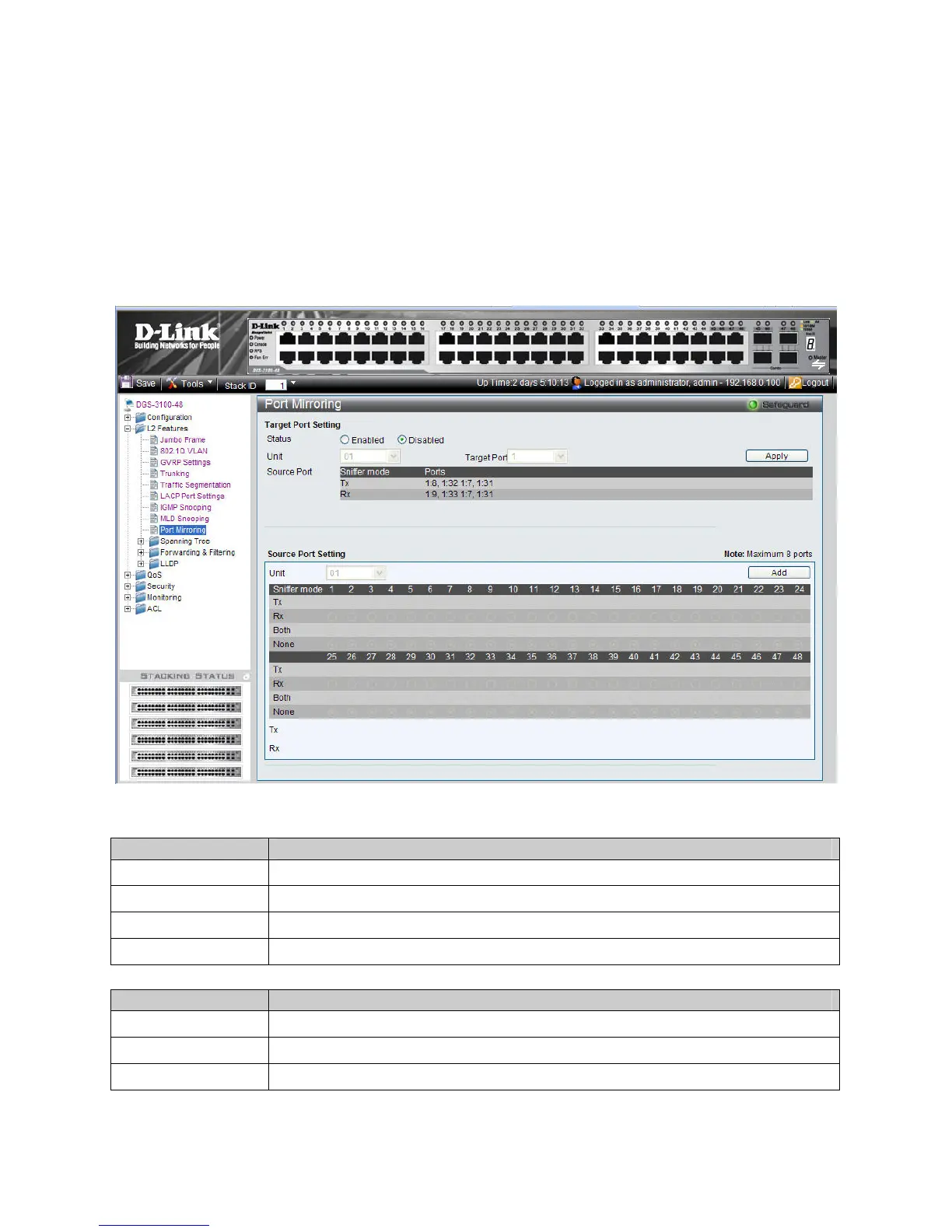

Figure 0–19 Port Mirroring Page
The Port Mirroring Page contains the following fields:
Field Description
Status
Enables or disables target port setting. The default is Disabled.
Unit
Defines the unit number.
Target Port
Defines the target port.
Source Port
Displays the Sniffer Mode and the source port.
Source Port Setting
Field Description
Unit
Selects the Unit to be displayed.
Tx
Indicates the transmit stream of data on the port.
Rx
Indicates the receive stream of data on the port.
95

D-Link DGS-3100 SERIES Specifications

General

Type	Managed
Layer	Layer 2+
Ports	10/100/1000BASE-T
SFP Ports	2 or 4 (depends on the model)
Additional SFP Ports	No
VLANs	Yes
Stacking	Yes, Physical Stacking
QoS	Yes
Jumbo Frame Support	Up to 9K bytes
Management	Web-based
Operating Temperature	0°C to 40°C
Humidity	10% to 90% non-condensing
Standards Compliance	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.1D, IEEE 802.1w, IEEE 802.1s, IEEE 802.1Q, IEEE 802.1p
Model	DGS-3100 SERIES
Storage Temperature	-40°C to 70°C
