DGS-3100 Series Gigabit Stackable Managed Switch User Manual
Viewing Router Ports
The Browse Router Port Page displays which ports are connected to routers. Ports can be connected to routers either as a
static port or as a dynamic port.
1. Click Monitoring > Browse Router Port. The Browse Router Port Page opens:

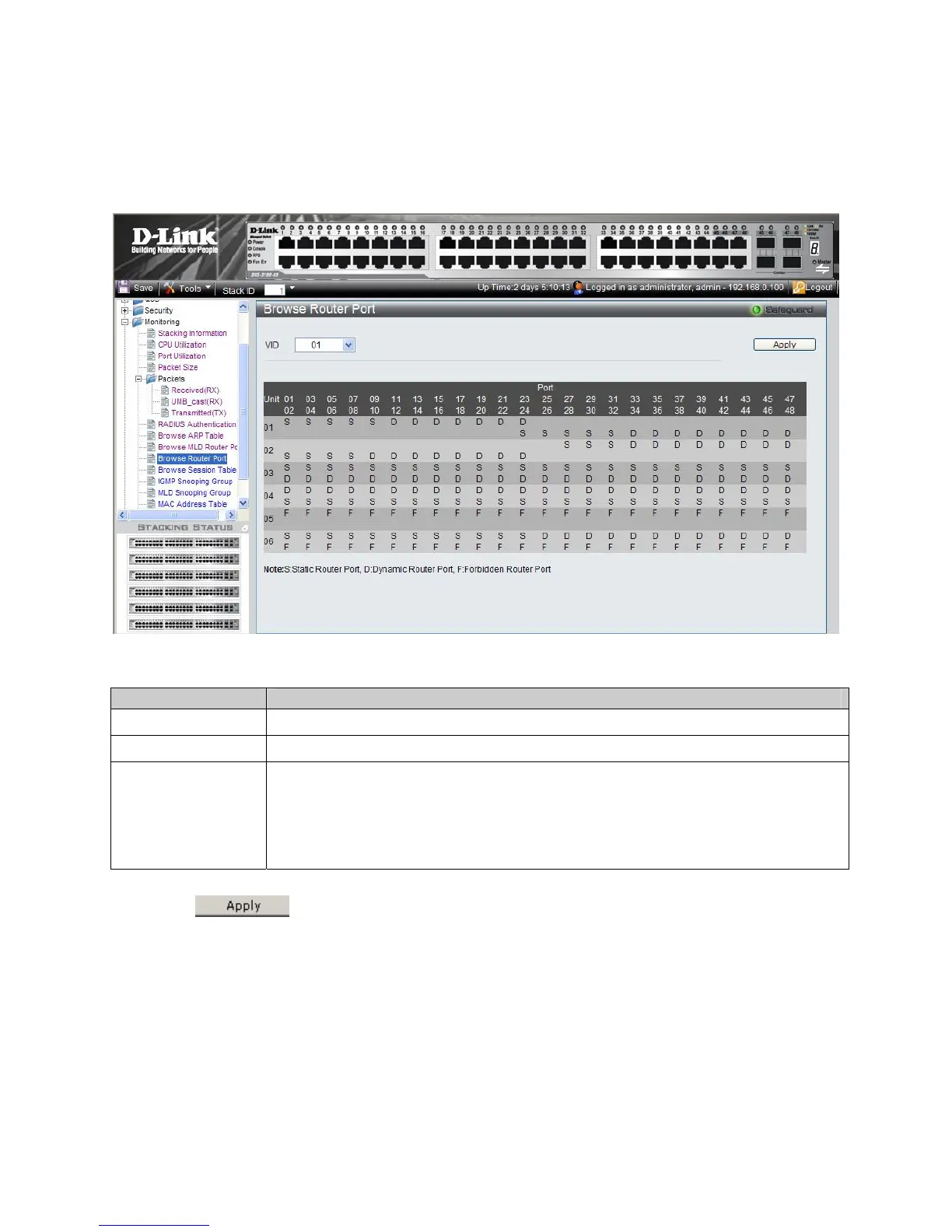

Figure 0-11 Browse Router Port Page
The Browse Router Port Page contains the following fields:
Field Description
VID
Indicates the VLAN identification.
Unit
Indicates the stacking member for which the router ports information is displaying.
Port
Indicates the port for which the router port settings are displayed. Ports have the following
settings:
S — Indicates a static port.
D — Indicates a dynamic port.
F — Indicates a forbidden port.
2. Define the VID field.
3. Click
. The selected ports appear on the selected VLAN.
183
