DGS-3100 Series Gigabit Stackable Managed Switch User Manual
Defining Forwarding and Filtering
This section contains information for configuring both Unicast and Multicast filtering, and contains the following topics:
Defining Unicast Forwarding
Defining Multicast Forwarding
Defining Multicast Filtering
Defining DLF Filtering
Defining Unicast Forwarding
The Unicast Forwarding Page contains parameters for configuring Unicast entries.
1. Click L2 Features > Forward & Filtering > Unicast Forwarding. The Unicast Forwarding Page opens:

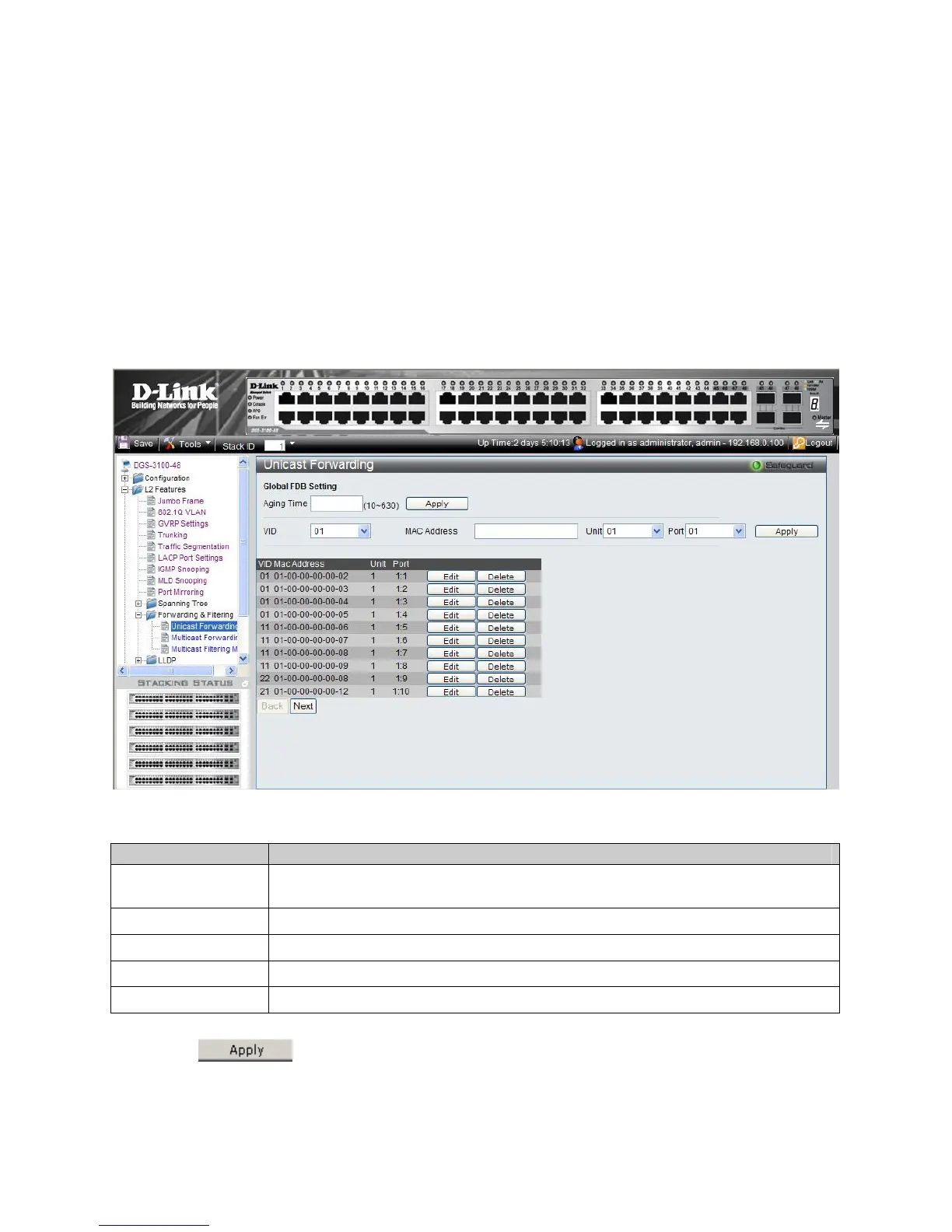

Figure 0–24 Unicast Forwarding Page
The Unicast Forwarding Page contains the following fields:
Field Description
Aging Time
Defines the aging time of a Unicast packet. If the packet is not forwarded after this interval, it
is discarded. Aging time is a global (FDB) database setting.
VID
Defines the VLAN ID.
MAC Address
Defines the Unicast MAC address to which packets are forwarded.
Unit
Defines the unit number.
Port
Defines the port number.
2. Define the VID, MAC Address, Unit, and Port fields.
3. Click
. The Unicast are defined, and the device is updated.
To edit a FDB table entry:
10
5
