DGS-3100 Series Gigabit Stackable Managed Switch User Manual
DHCP Relay
The DHCP Relay Page allows the user to enable DHCP relay and define DHCP relay servers on the device.
The Relay agent information option known as Option 82 is part of the DHCP protocol and allows a DHCP relay agent to
send additional client information upon requesting an IP address. A DHCP relay agent detects DHCP broadcasts from
DHCP clients and relays those broadcasts to DHCP servers on different subnets.
In addition, when client ingress VLAN information differs from the VLAN on which DHCP servers are connected, Option
82 information is added to the packets relayed to DHCP server. Option 82 specifies the relaying switch’s MAC address, the
port identifier, and specifies the VLAN forwarding the packet.
To define DHCP Relay Server Information:
1. Click C
o
nfiguration > DHCP Relay. The DHCP Relay Page opens:

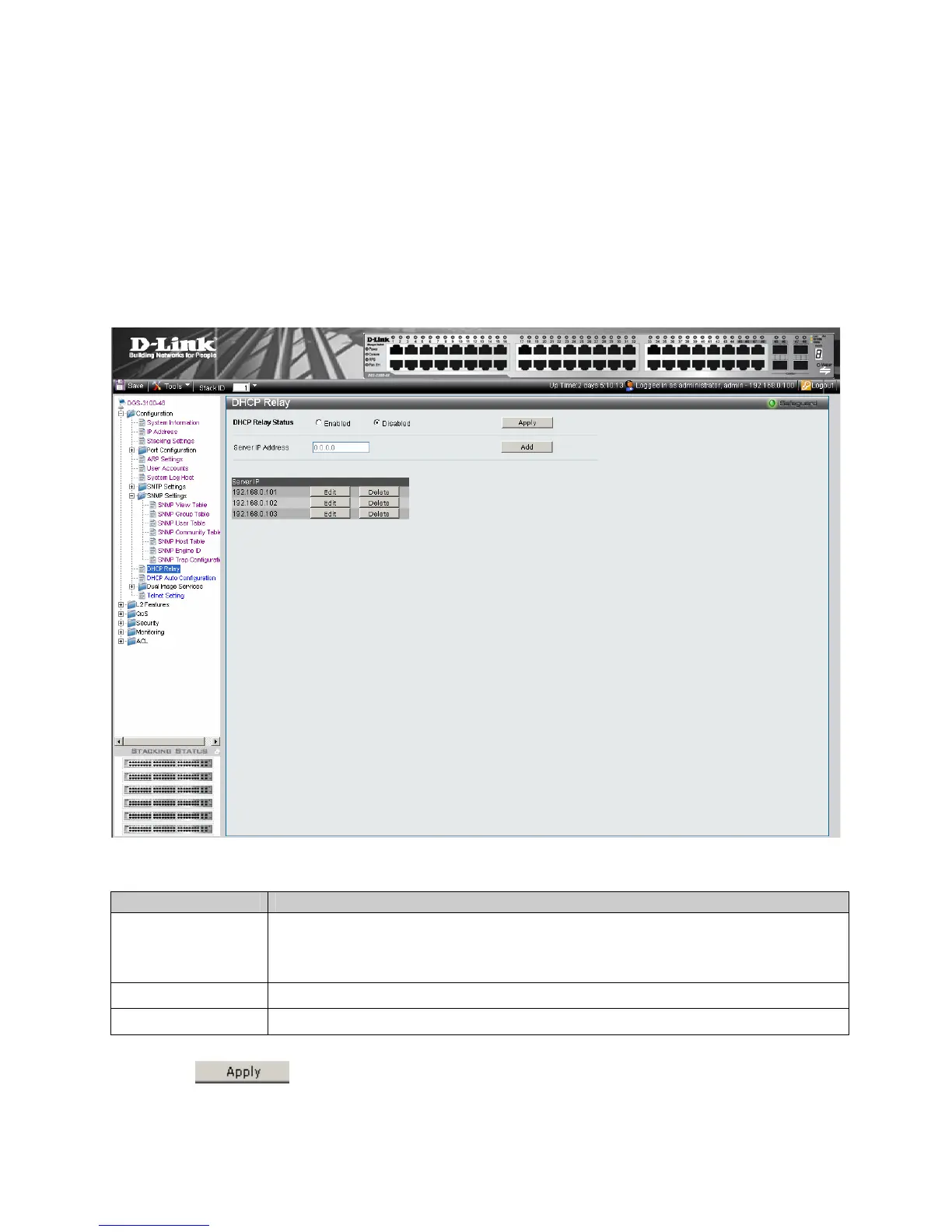

Figure 0-20 DHCP Relay Page
The DHCP Relay Page contains the following fields:
Field Description
DHCP Relay Status
Specifies whether the DHCP is enabled on the device. The possible field values are:
Enabled — Enables DHCP Relay on the device.
Disa
bled — Disables DHCP Relay on the device. Th
is is the default value.
Server IP Address
Defines the DHCP relay server’s IP address
Server IP
Display the list of user-defined DHCP Relay servers.
2. Select Enabled to enable DHCP Relay. Disabled is the default.
3.
Click
. The DHCP Relay servers are defined, and the device is updated.
59
