DGS-3100 Series Gigabit Stackable Managed Switch User Manual
178
To clear the
Unit and Port fields:
1. Click
. The fields are cleared.
2. Define the Time Interval and Record Number fields.
3. Click
. The selected UMB_Cast (RX) packet analysis is displayed
4. To view the graph as a table, click
View Table.
Viewing Transmitted Packet Statistics
The Transmitted(TX) Page contains information about packets transmitted through device ports. To view transmitted packet
statistics:
1. Click Monitoring > Packets >Transmitted(TX). The Transmitted(TX) Page opens:

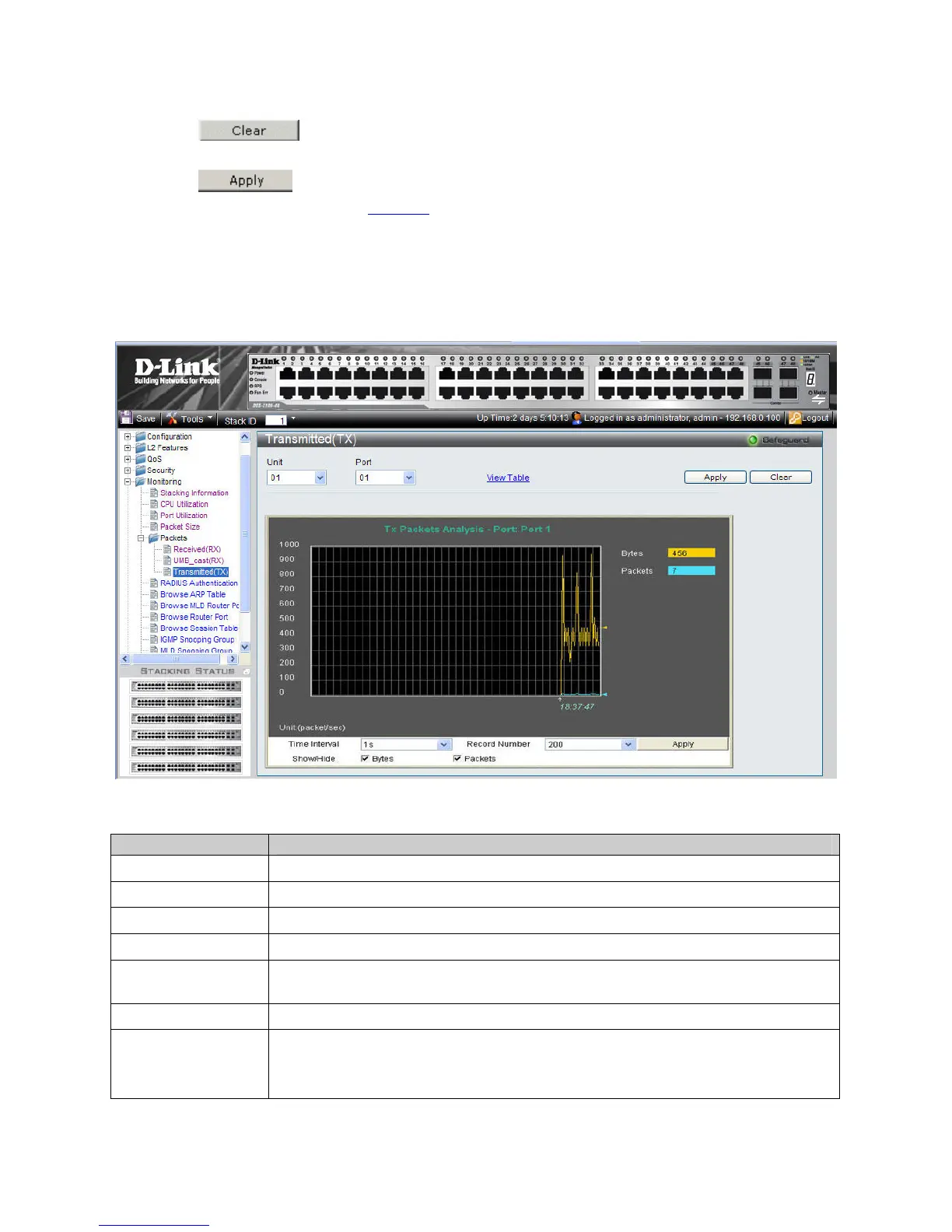

Figure 6-7 Transmitted(TX) Page
The Transmitted(TX) Page contains the following fields:
Field Description
Unit
Indicates the stacking member ID for which the transmitted packets parameters are displayed.
Port
Indicates the port for which the transmitted packets parameters are displayed.
Bytes
Indicates the total number of bytes that were transmitted through the port.
Packets
Indicates the total number of packets that were transmitted through the port.
Time Interval
Indicates the time interval for which the transmitted packets are displayed. The possible field
values are: 1s - 5s, 10s, 15s, 20s, 30s, 40s, 50s, and 60s.
Record Number
Indicates the transmitted record number.
Show/Hide
Displays the bytes/packets received information. The possible field values are:
Bytes checked — Displays the total amount of transmitted bytes.
Packets checked — Displays the total amount of transmitted packets.
