Mapping Priority to Classes (Queues)
The 802.1P User Priority Page allows network managers to assign priority tags to classes (queues). If a network manager
defines a priority of 01 to Class 3, all packets arriving with an assigned value of 01 are sent to class (queue) 3.
The default mapping is:
 Priority 0. 3 is assigned to Q0. This is the lowest priority queue.
 Priority 1, 2 is assigned to Q1.
 Priority 4, 5 is assigned to Q2.
 Priority 6, 7 is assigned to Q3. This is the highest priority queue.
To map priority to queues:
1. Click QoS > 802.1p User Priority. The 802.1P User Priority Page opens:

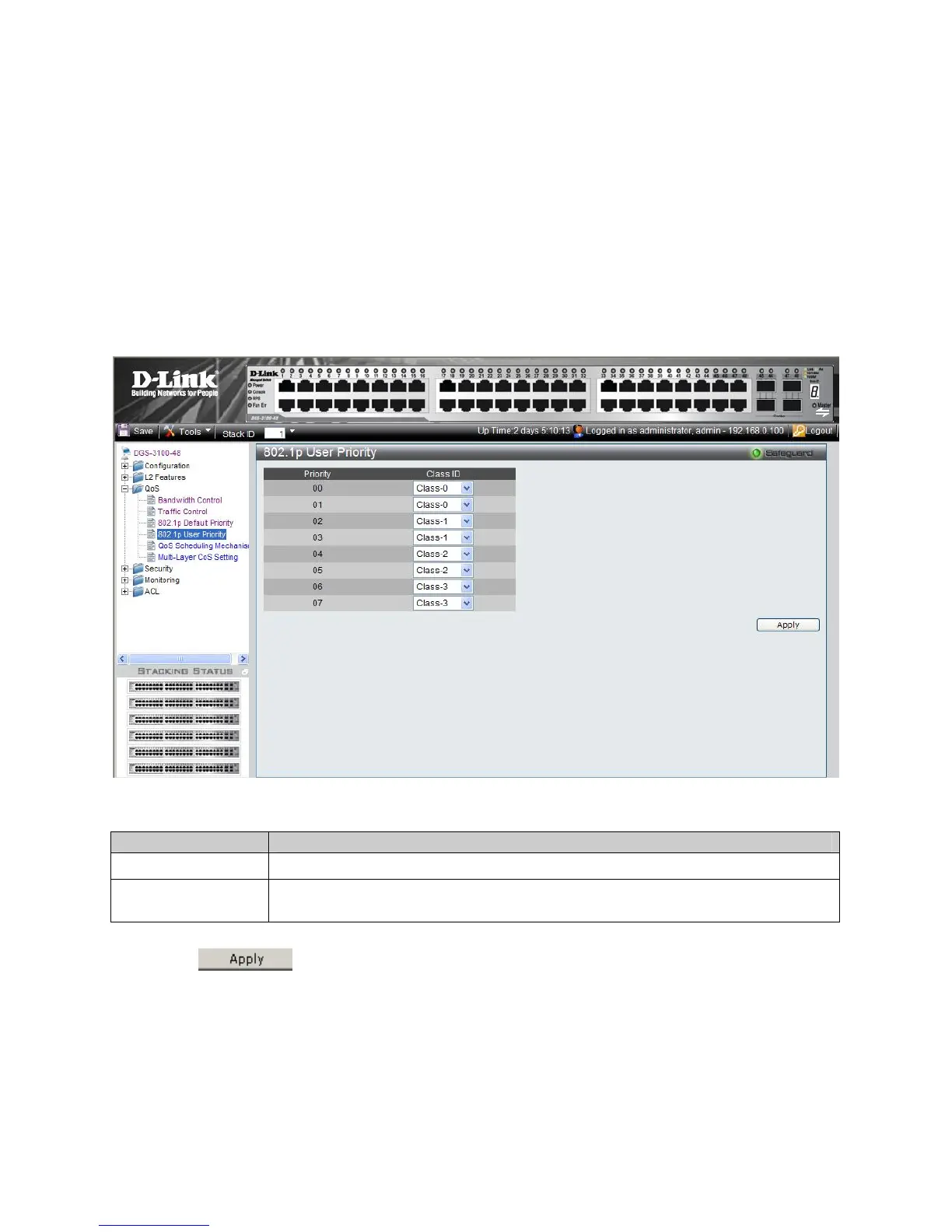

Figure 4-5 802.1P User Priority Page
The 802.1P User Priority Page contains the following fields:
Field Description
Priority
Indicates the packet priority that is assigned to the queue.
Class ID
Defines the class (queue) that is assigned to the priority. Class 0 is the lowest priority queue,
whereas Class 3 is the highest.
2. Define the queuing priority for 00 – 07 in the Class ID fields.
3. Click
. The User priority tags are assigned to classes, and the device is updated.

D-Link DGS-3100 SERIES Specifications

General

Type	Managed
Layer	Layer 2+
Ports	10/100/1000BASE-T
SFP Ports	2 or 4 (depends on the model)
Additional SFP Ports	No
VLANs	Yes
Stacking	Yes, Physical Stacking
QoS	Yes
Jumbo Frame Support	Up to 9K bytes
Management	Web-based
Operating Temperature	0°C to 40°C
Humidity	10% to 90% non-condensing
Standards Compliance	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.1D, IEEE 802.1w, IEEE 802.1s, IEEE 802.1Q, IEEE 802.1p
Model	DGS-3100 SERIES
Storage Temperature	-40°C to 70°C
