D-Link DGS-3100 SERIES User Manual

DGS-3100 Series Gigabit Stackable Managed Switch User Manual
150
Configuring MAC Authentication (by using Guest VLAN, 802.1X
and Radius pages)
This is the sequence of operatons required to configure MAC Authentication in DGS-3100 series.

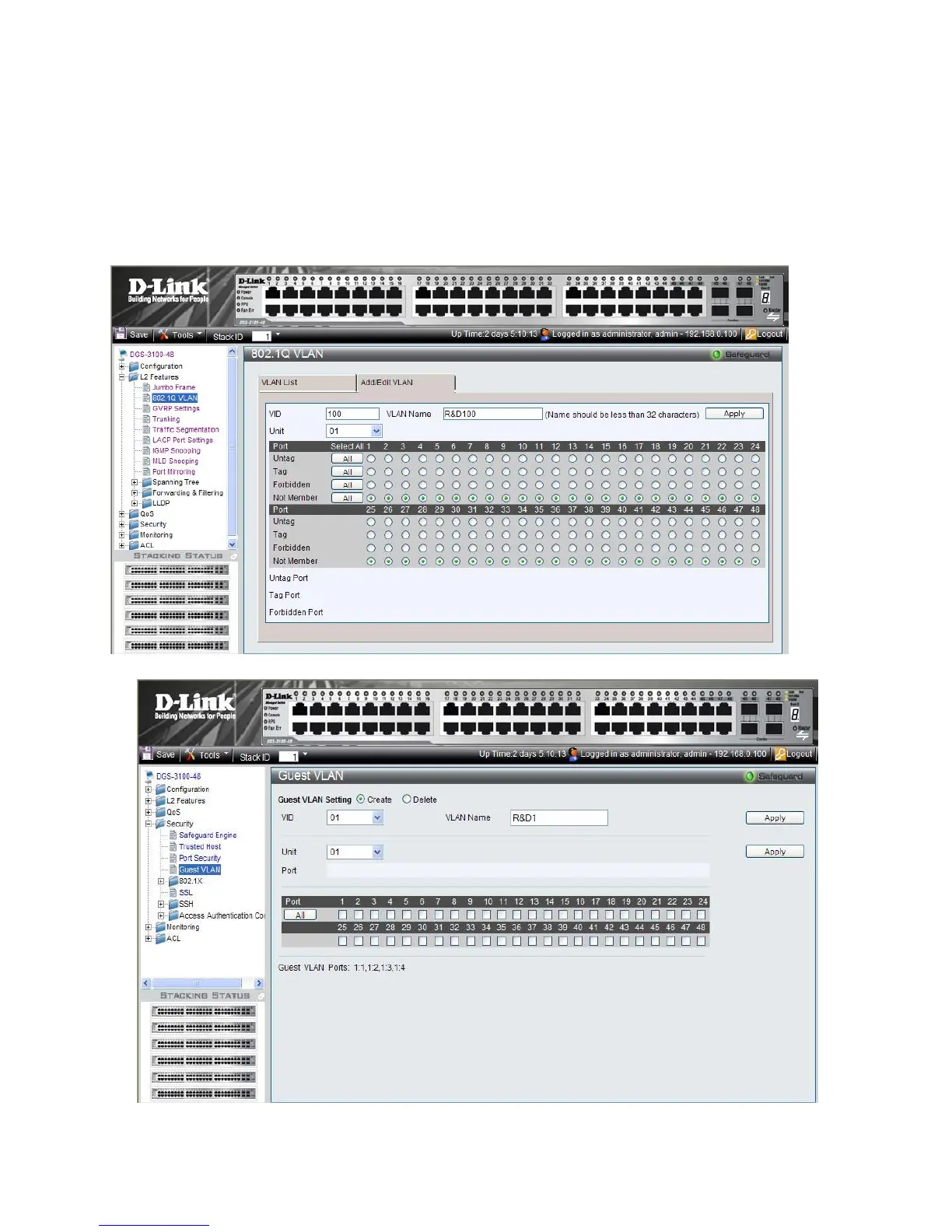

1. In order to configure a guest VLAN, the user is required to create a VLAN first, in the following example the user
creates VLAN 100 via click L2 Features > 802.1Q VLAN. The 802.1Q VLAN page opens:
2. Assign ports to the Guest VLAN via click Security > Guest VLAN and according to the following example:

D-Link DGS-3100 SERIES Specifications

General

Type	Managed
Layer	Layer 2+
Ports	10/100/1000BASE-T
SFP Ports	2 or 4 (depends on the model)
Additional SFP Ports	No
VLANs	Yes
Stacking	Yes, Physical Stacking
QoS	Yes
Jumbo Frame Support	Up to 9K bytes
Management	Web-based
Operating Temperature	0°C to 40°C
Humidity	10% to 90% non-condensing
Standards Compliance	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.1D, IEEE 802.1w, IEEE 802.1s, IEEE 802.1Q, IEEE 802.1p
Model	DGS-3100 SERIES
Storage Temperature	-40°C to 70°C
