Viewing Received Packet Statistics
The Received(RX) Page contains information about packets transmitted through device ports. To view received packet
statistics:
1. Click Monitoring > Packets > Received(RX). The Received(RX) Page opens:

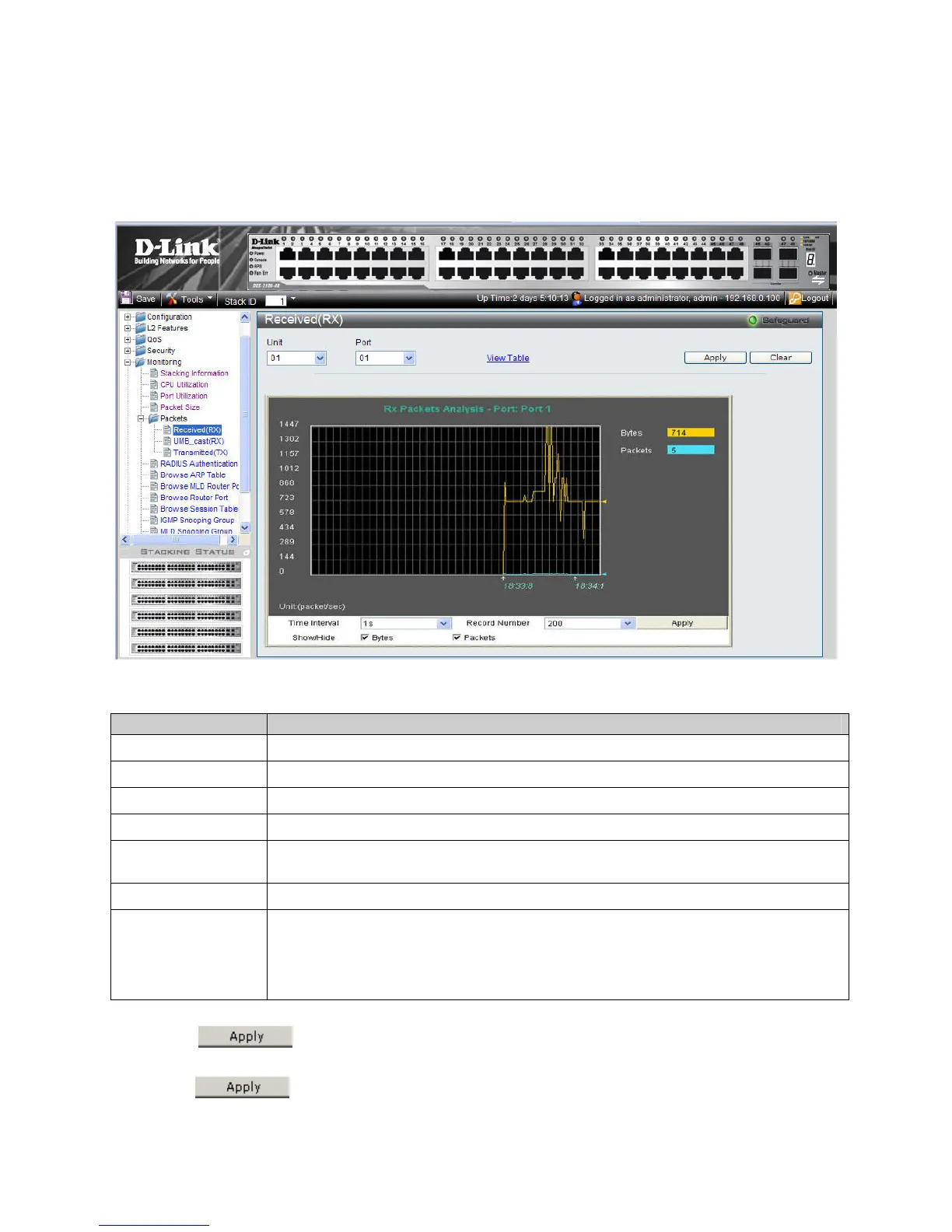

Figure 6-5 Received(RX) Page
The Received(RX) Page contains the following fields:
Field Description
Unit
Displays the stacking member for which the transmitted packet statistics are displayed.
Port
Indicates the port for which the received packets parameters are displayed.
Bytes
Indicates the total number of bytes that were received on the port.
Packets
Indicates the total number of packets that were received on the port.
Time Interval
Indicates the time interval for which the received packets are displayed. The possible field
values are: 1s - 5s, 10s, 15s, 20s, 30s, 40s, 50s, and 60s.
Record Number
Indicates the transmitted record number.
Show/Hide
Displays the bytes/packets received information. The possible fields are:
Bytes checked — Checked displays the total amount of received bytes.
Packets checked — Checked displays the total amount of received packets.
2. Define the Unit and Port fields.
3. Click
to load the defined parameters.
4. Define the Time Interval and Record Number fields.
5. Click
.
The selected RX packet analysis is displayed.

D-Link DGS-3100 SERIES Specifications

General

Type	Managed
Layer	Layer 2+
Ports	10/100/1000BASE-T
SFP Ports	2 or 4 (depends on the model)
Additional SFP Ports	No
VLANs	Yes
Stacking	Yes, Physical Stacking
QoS	Yes
Jumbo Frame Support	Up to 9K bytes
Management	Web-based
Operating Temperature	0°C to 40°C
Humidity	10% to 90% non-condensing
Standards Compliance	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.1D, IEEE 802.1w, IEEE 802.1s, IEEE 802.1Q, IEEE 802.1p
Model	DGS-3100 SERIES
Storage Temperature	-40°C to 70°C
