DGS-3100 Series Gigabit Stackable Managed Switch User Manual
208
To define L2
MAC Address ACL profile:
1. Click the MAC
Address bu
tton. The ACL Profile L2 ACL Tagged MAC Address Page updates to show the
following:

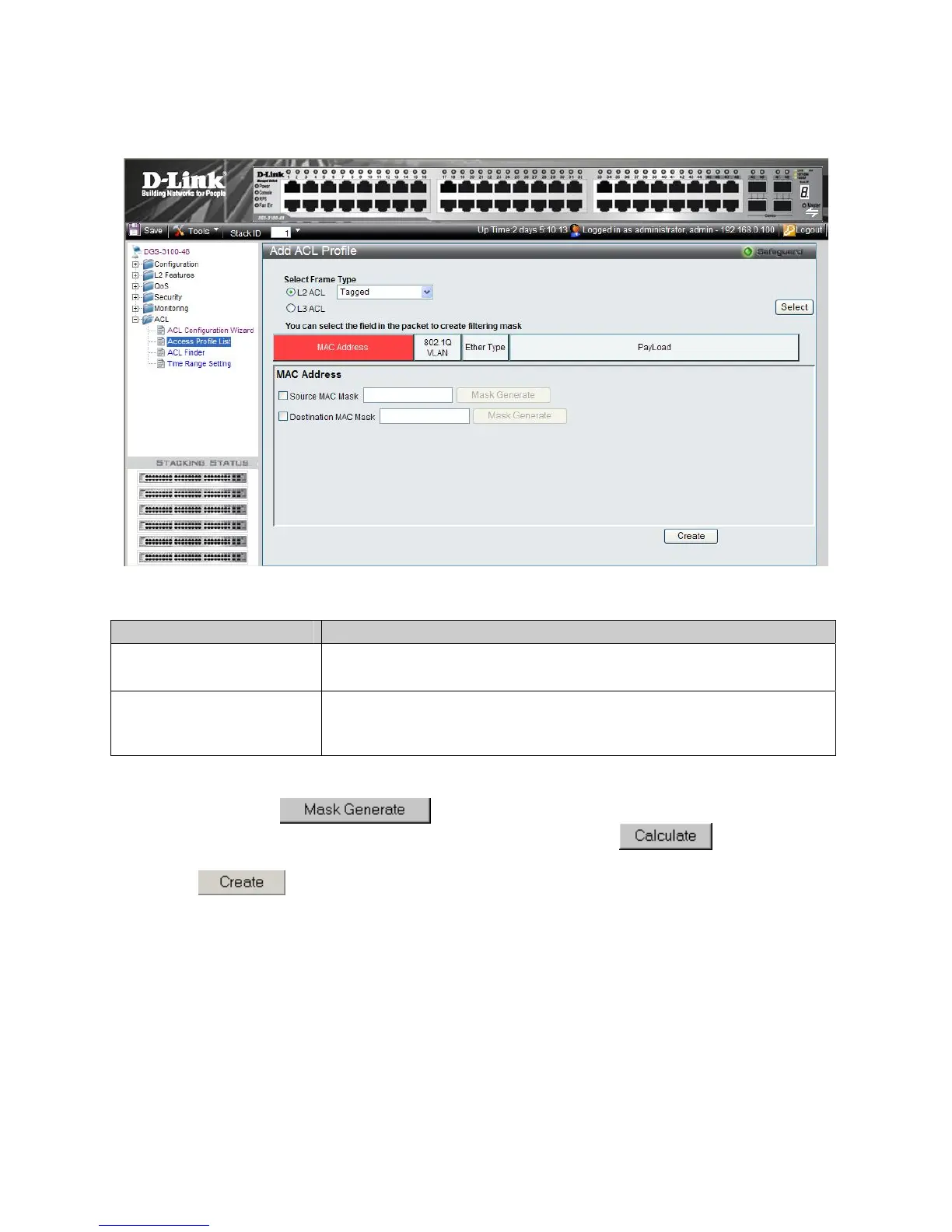

Figure 0-6 ACL Profile L2 ACL Tagged MAC Address Page
The ACL Profile L2 ACL Tagged MAC Address Page contains the following fields:
Field Description
Source MAC Mask
Defines the range of source addresses relative to the ACL rules (0=ignore, 1=check).
For example, to set 00:00:00:00:10:XX, use mask FF:FF:FF:FF:FF:00.
Destination MAC Mask
Defines the range of destination addresses relative to the ACL rules (0=ignore,
1=check).
For example, to set 00:00:00:00:10:XX, use mask FF:FF:FF:FF:FF:00.
2. Select Source MAC Mask and/or Destination MAC Mask. The Mask Generate button is active.
3. Enter a MAC mask in the box adjacent to the Mask Ge
nerate button.
Alternatively, click
. The Generate Mask by range fields appear.
Enter a MAC address range into the Generate Mask by range fields, and click
. The mask is
generated.
4. Click
. The ACL profile is added, and the device is updated.
To define L2 802.1Q VLAN ACL profile:
1. Click th
e 802.1Q VLAN butt
on. The ACL Profile L2 ACL Tagged VLAN Page updates to show the following:
