xStack DGS-3400 Series Layer 2 Gigabit Ethernet Managed Switch
MAC Address
Displays the MAC Address of the corresponding Switch.
Model Name
Displays the full Model Name of the corresponding Switch.

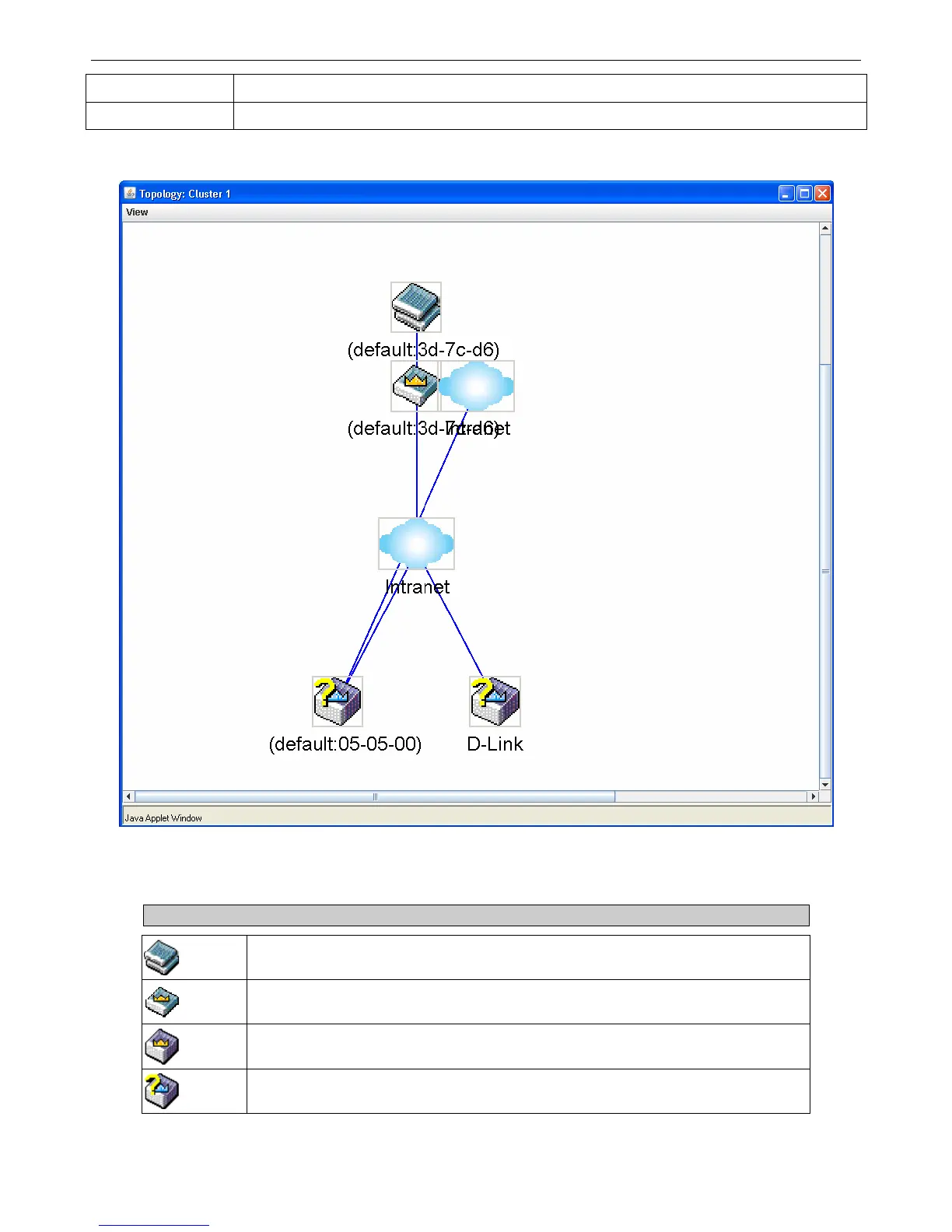

To view the Topology Map, click the View menu in the toolbar and then Topology, which will produce the following screen. The
Topology View will refresh itself periodically (20 seconds by default).
Figure 6- 76. Topology view
This screen will display how the devices within the Single IP Management Group connect to other groups and devices. Possible
icons in this screen are as follows:
Icon Description
Group
Layer 2 commander switch
Layer 3 commander switch
Commander switch of other group
105
