xStack DGS-3400 Series Layer 2 Gigabit Ethernet Managed Switch
External Redundant Power System
The Switch supports an external redundant power system. The diagrams below illustrate a proper RPS power connection to the
Switch. Please consult the documentation for information on power cabling and connectors and setup procedure.

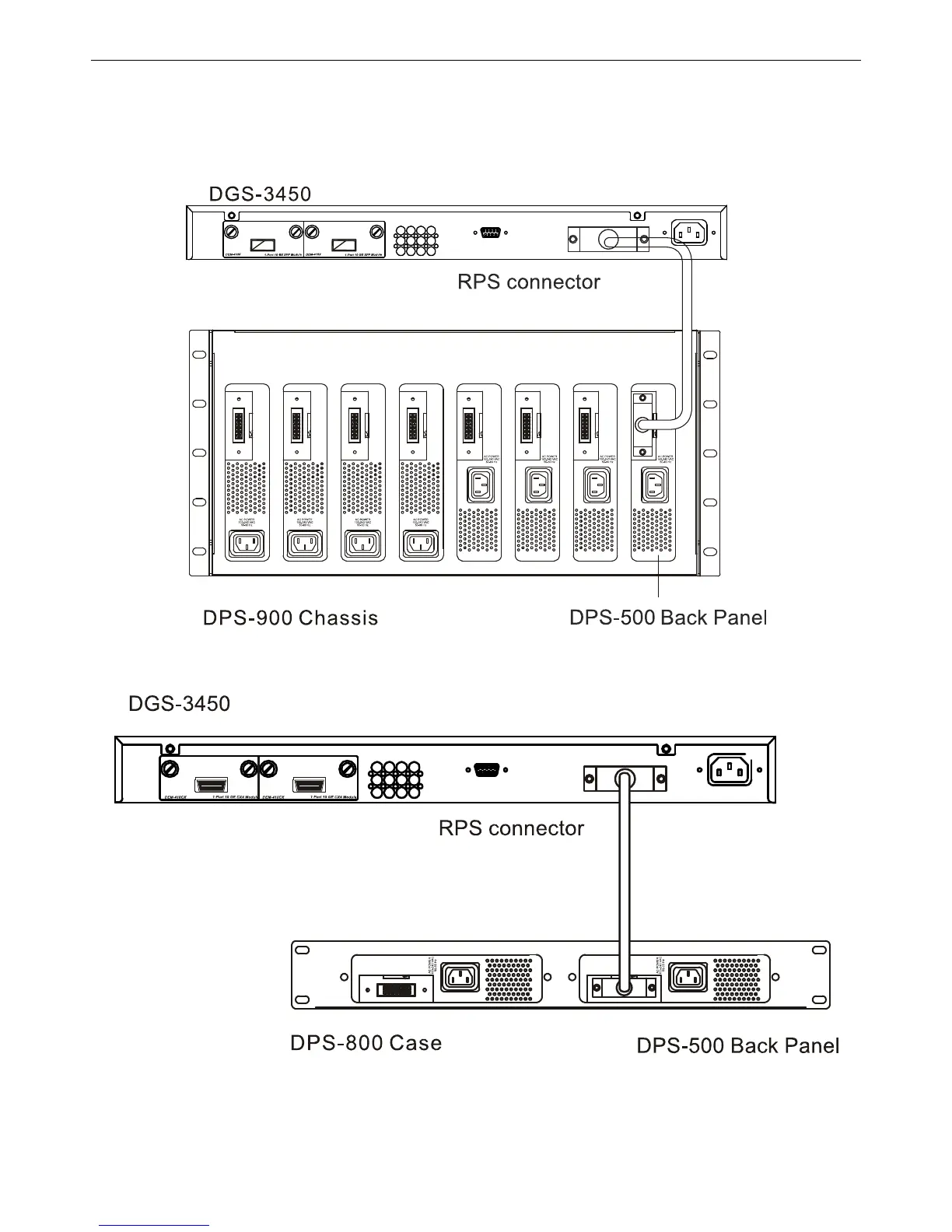

Figure 2- 24. The DGS-3450 with the DPS-500 chassis RPS
Figure 2- 25. The DGS-3450 with the DPS-500 Redundant External Power Supply
