xStack DGS-3400 Series Layer 2 Gigabit Ethernet Managed Switch

Session Table

This window displays the management sessions since the Switch was last rebooted. To view this table click, Monitoring >

Session Table.

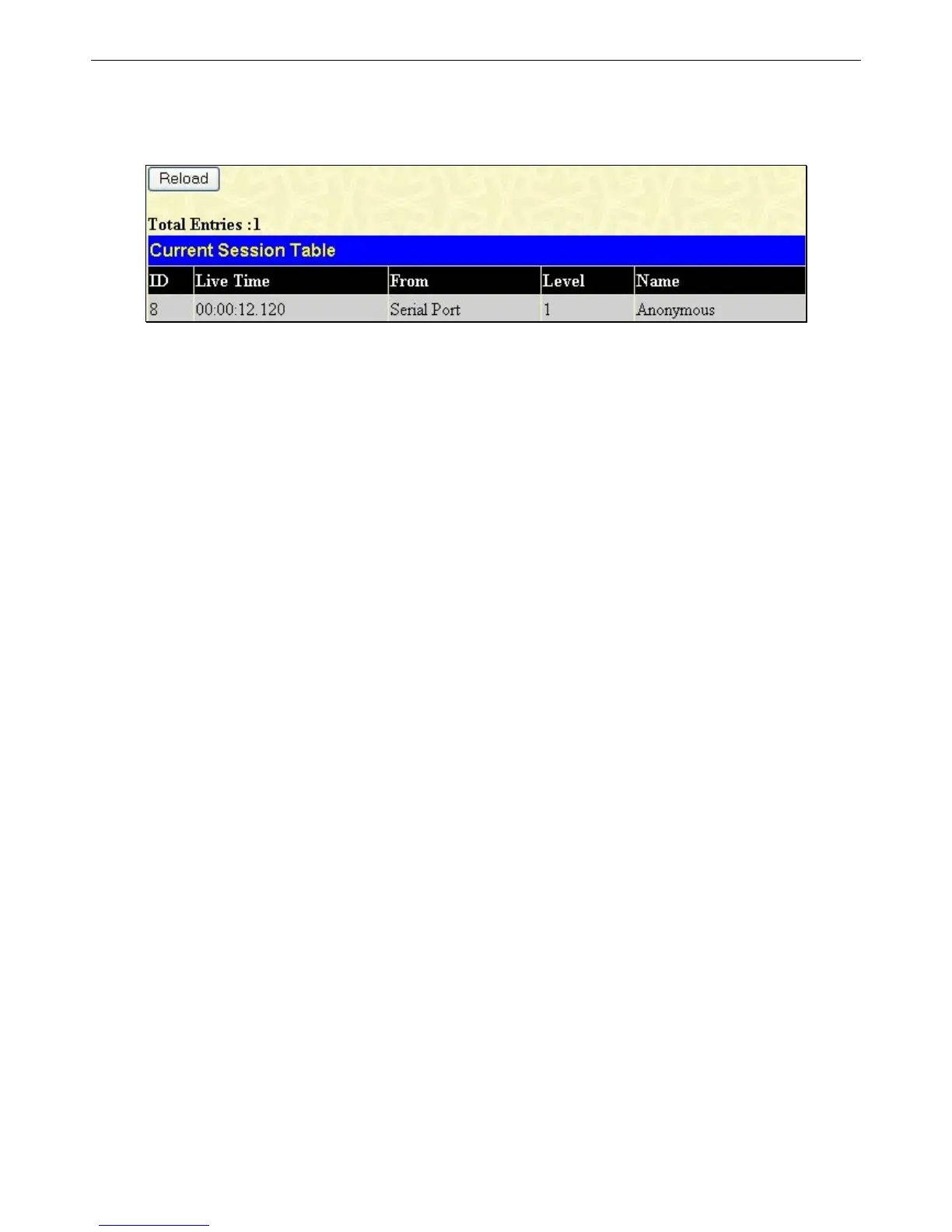

Figure 11- 29. Current Session Table

277
