xStack DGS-3400 Series Layer 2 Gigabit Ethernet Managed Switch
Figure 6- 83. Right Clicking a Candidate icon
The following options may appear for the user to configure:
• Collapse - to collapse the group that will be represented by a single icon.
• Expand - to expand the SIM group, in detail.
• Add to group - add a candidate to a group. Clicking this option will reveal the following screen for the user to enter a
password for authentication from the Candidate Switch before being added to the SIM group. Click OK to enter the
password or Cancel to exit the window.

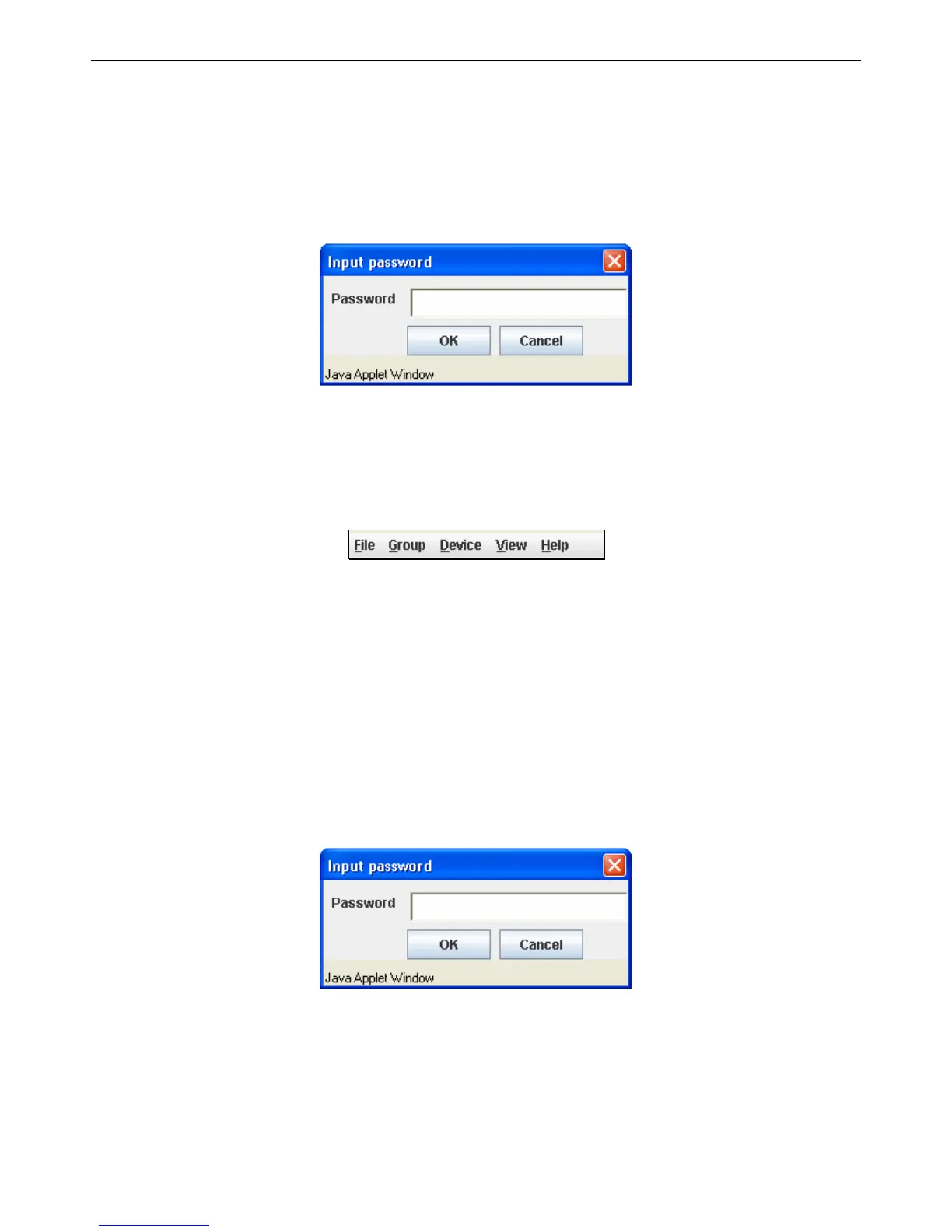

Figure 6- 84. Input password window.
• Property - to pop up a window to display the device information.
Menu Bar
The Single IP Management window contains a menu bar for device configurations, as seen below.
Figure 6- 85. Menu Bar of the Topology View
The five menus on the menu bar are as follows.
File
• Print Setup - will view the image to be printed.
• Print Topology - will print the topology map.
• Preference - will set display properties, such as polling interval, and the views to open at SIM startup.
Group
• Add to group - add a candidate to a group. Clicking this option will reveal the following screen for the user to enter a
password for authentication from the Candidate Switch before being added to the SIM group. Click OK to enter the
password or Cancel to exit the window.
Figure 6- 86. Input password window.
• Remove from Group - Remove an MS from the group.
Device
• Configure - will open the web manager for the specific device.
111
