xStack DGS-3400 Series Layer 2 Gigabit Ethernet Managed Switch

LED Indicators

The Switch supports LED indicators for Power, Console, RPS and Port LEDs including 10GE port LEDs for optional module

inserts.

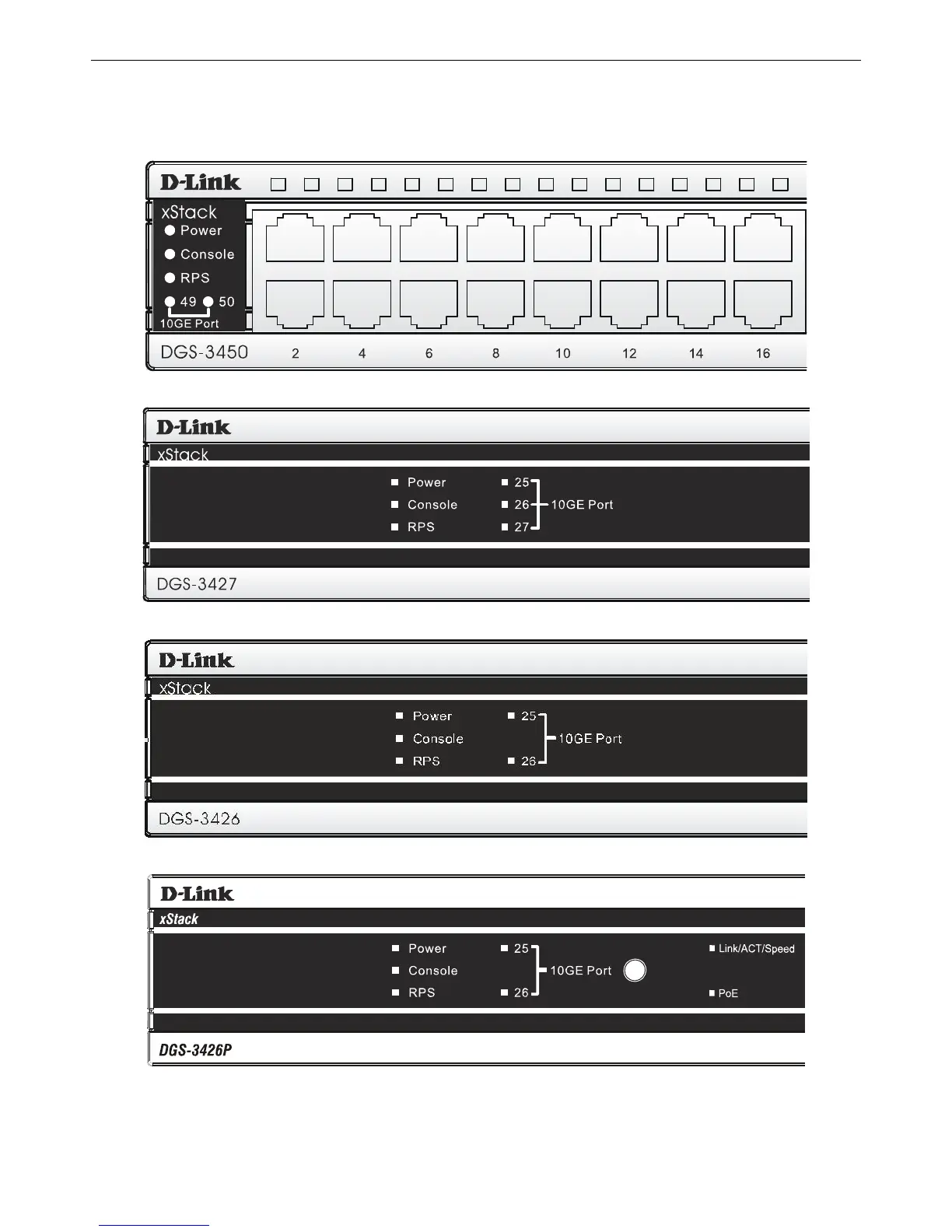

Figure 2- 5. LED Indicators on DGS-3450

Figure 2- 6. LED Indicators on DGS-3427

Figure 2- 7. LED Indicators on DGS-3426

Figure 2- 8. LED Indicators on DGS-3426P
